Straight connector A2
Item no. 6227724 | EAN 4012195684107
- Product description
-

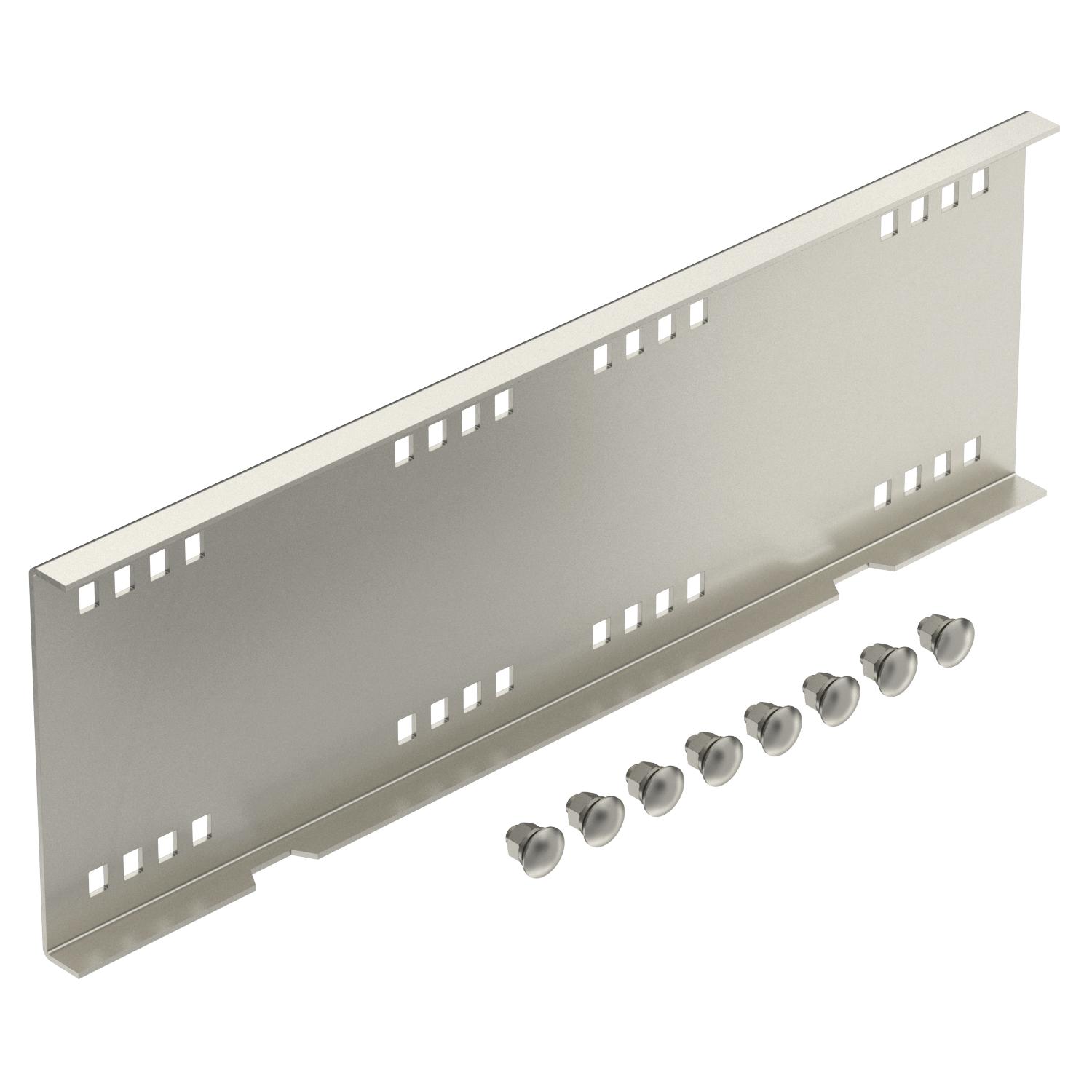

Product descriptionStraight connector for straight connections of cable trays, wide span cable trays and ladders with a side height of 160 mm.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Colour stainless steel Connection type Screw connector Dimension 160x500 Height 160 mm Length 500 mm Maintain electrical functions no Material Stainless steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 160 mm Suitable for mesh cable tray no Surface Bright, treated Version for Straight connector Width 20 mm - All types
- Downloads
-
Data sheet WRVL 160 A2 / 6227724 , 0.26MB , pdfEU declaration of conformity WRVL 160 A2 / 6227724 , 0.11MB , pdfUK Declaration of Conformity WRVL 160 A2 / 6227724 , 0.09MB , pdfREACH Declaration of conformity WRVL 160 A2 / 6227724 , 0.12MB , pdfRoHS Declaration of conformity WRVL 160 A2 / 6227724 , 0.12MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
