- Product description
-
Product description

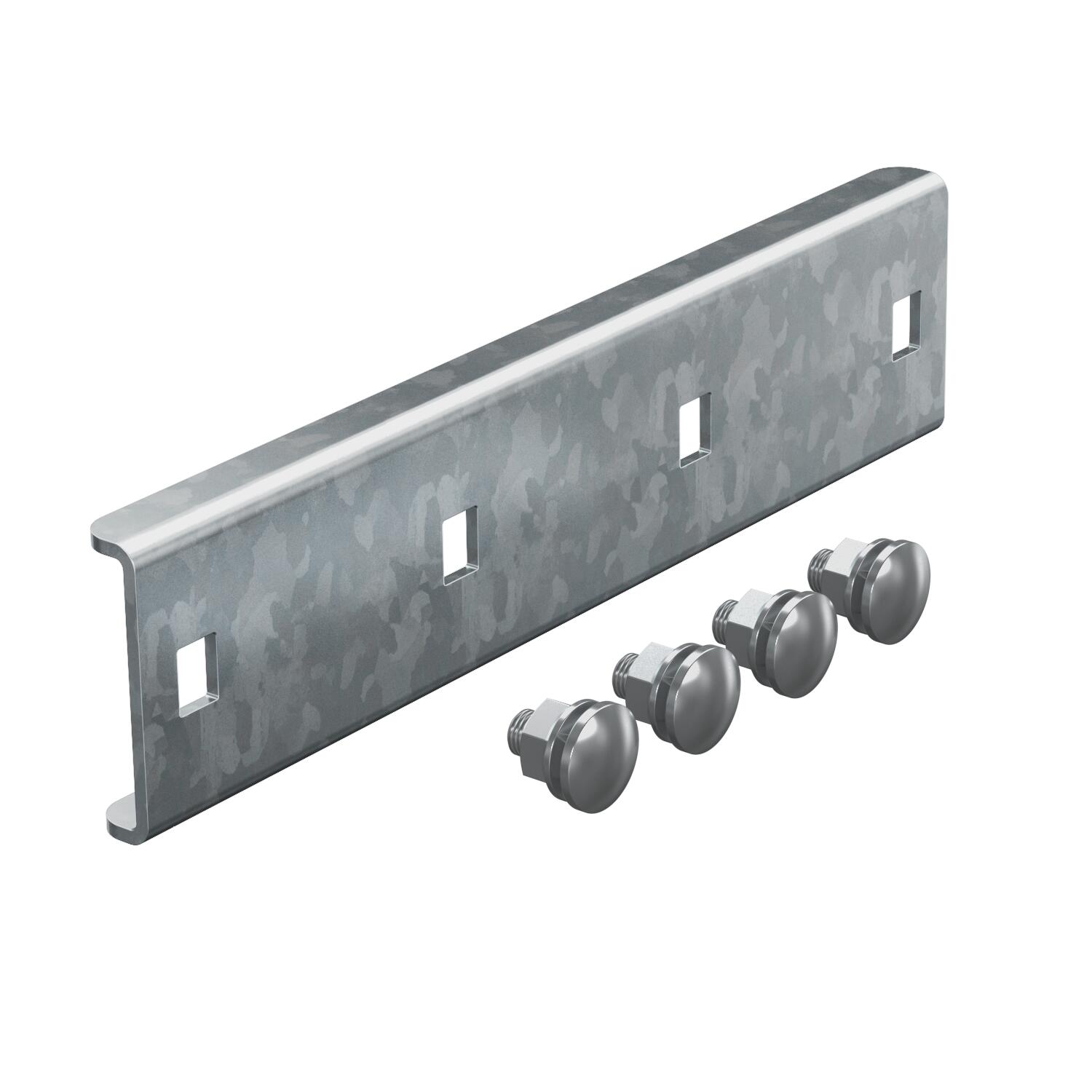

Straight to connect cable ladders and fittings with a side height of 35 mm.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 170x40 Dimension 170x52 Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Wide-span version no Dimensions

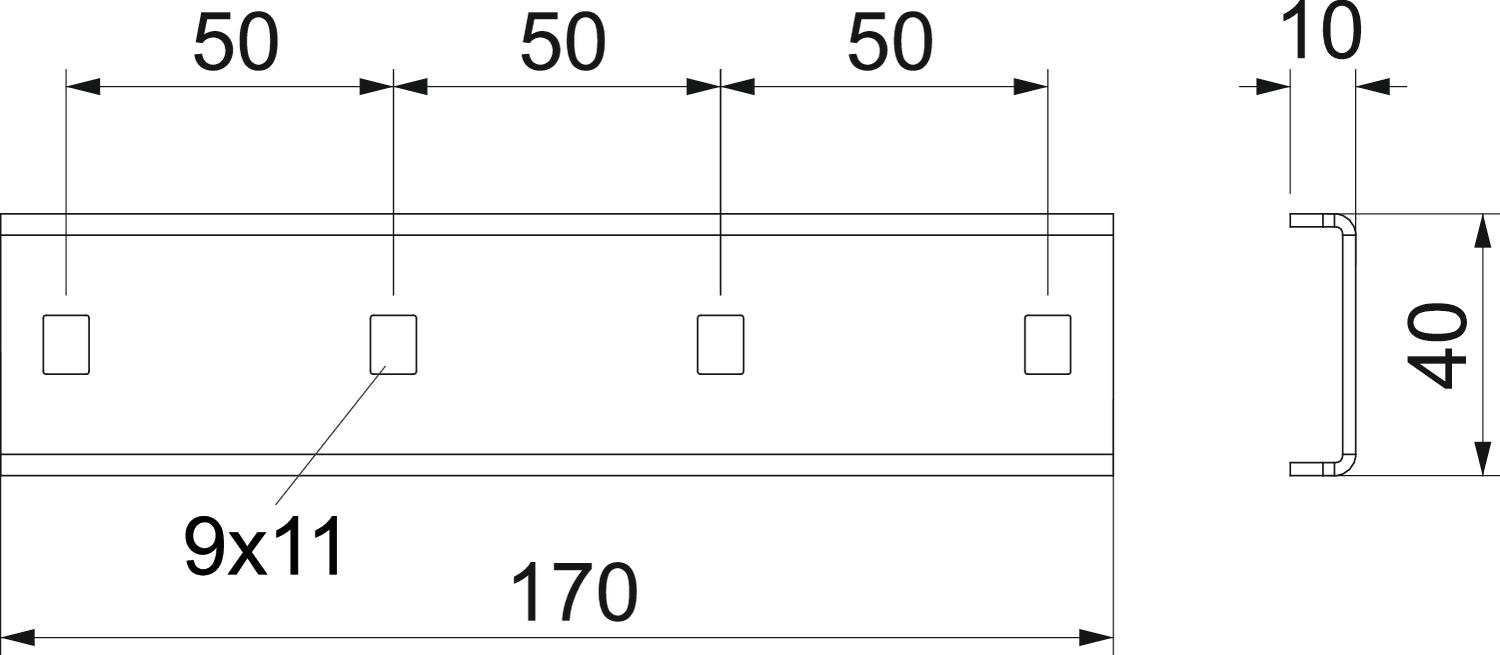

Height 10 mm Length 170 mm Width 40 mm - All types
- Downloads
-
Data sheet SLV 52 FT / 7103532 , 0.25MB , pdfDeclaration of conformity SLV 52 FT / 7103532 , 0.17MB , pdf
