Straight connector FT SOMY 110 | | Steel | Hot-dip galvanised 85 µm

morepic-1

morepic-2

Straight connector FT SOMY

Item no. 7189256 | EAN 4012195652267

Item no. / Types	7189256 / LVG 110 FT SO

Height	110 mm

Material	Steel

Surface	Hot-dip galvanised 85 µm

Product description

Product description

Straight connectors as internal connectors to connect cable ladders and fittings of 110 mm side height.

Technical data

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	no
Connection type	Screw connector
Dimension	114x250
Material	Steel
Rustproof steel, pickled	no

Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for cable tray system height	110 mm
Suitable for mesh cable tray	no
Surface	Hot-dip galvanised 85 µm
Version for	Straight connector

Dimensions

Height	110 mm
Length	250 mm

Width	28 mm

All types

All types

Types	Height	Material	Surface	Item no.	Quantity	SSU
LVG 110 FT SO	110 mm	Steel	Hot-dip galvanised 85 µm	7189256	piece	10 piece

Downloads

Data sheet LVG 110 FT SO / 7189256 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LVG 110 FT SO / 7189256 , 0.17MB , pdf

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

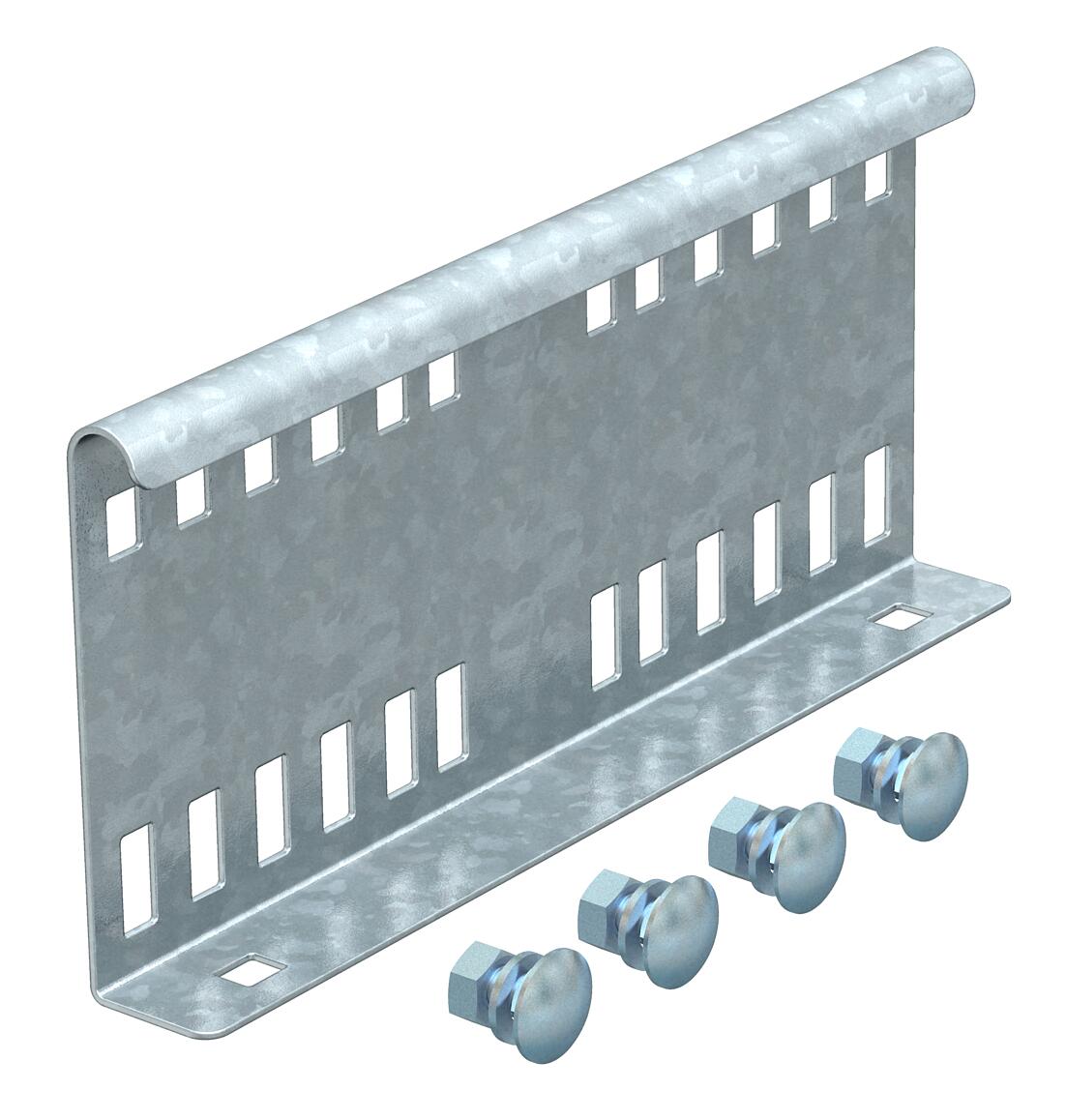

Product graphic LVG 110 FT SO / 7189256, 92.75 kB, jpg

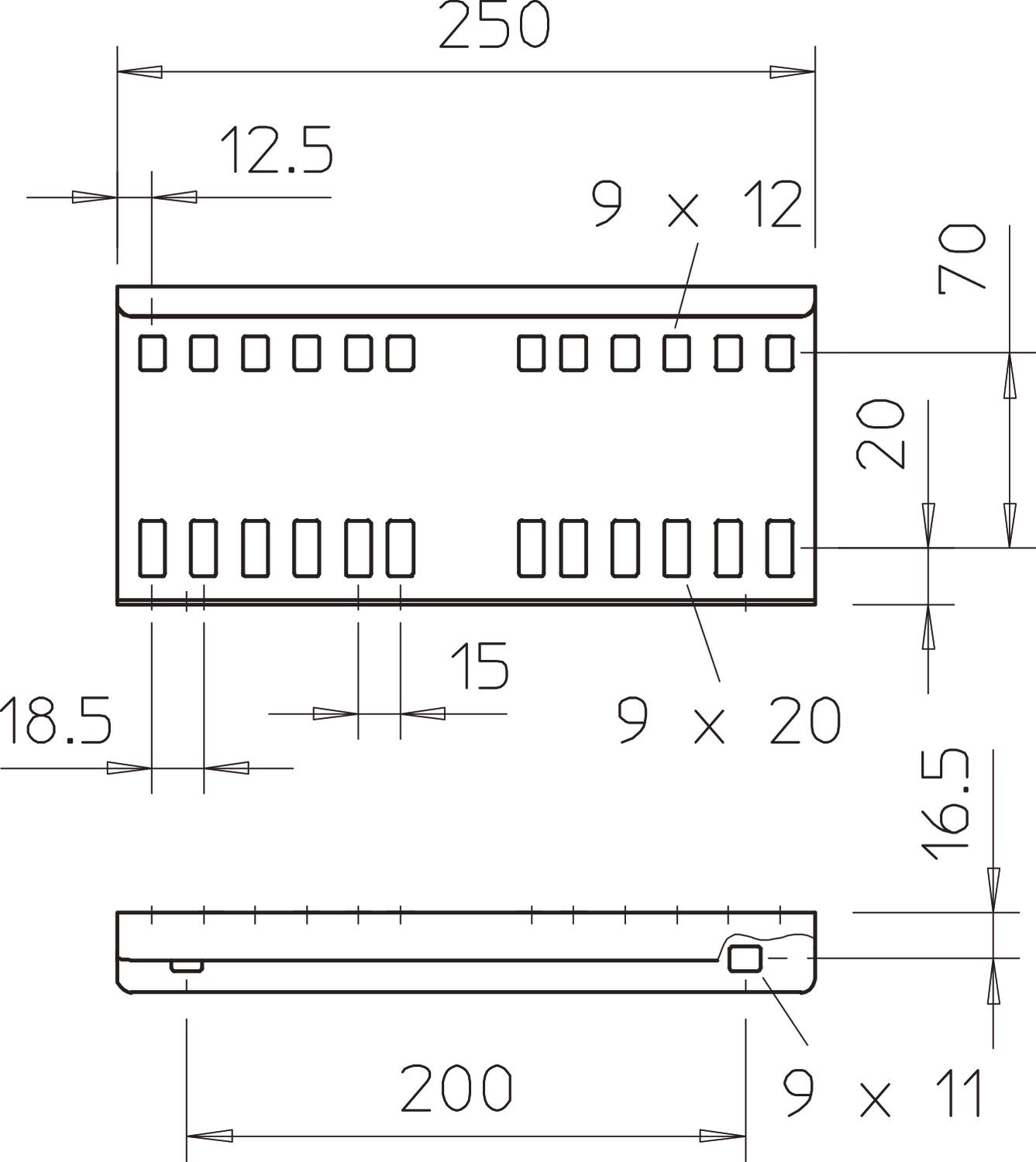

Scale drawing LVG 110 FT SO / 7189256, 88.06 kB, jpg

No invitation to tender text is available for this product.

Längsverbinder, Seitenhöhe 110- LVG 110 FS,FT,FT SO,A2,A4.rfa, 564.00 kB
