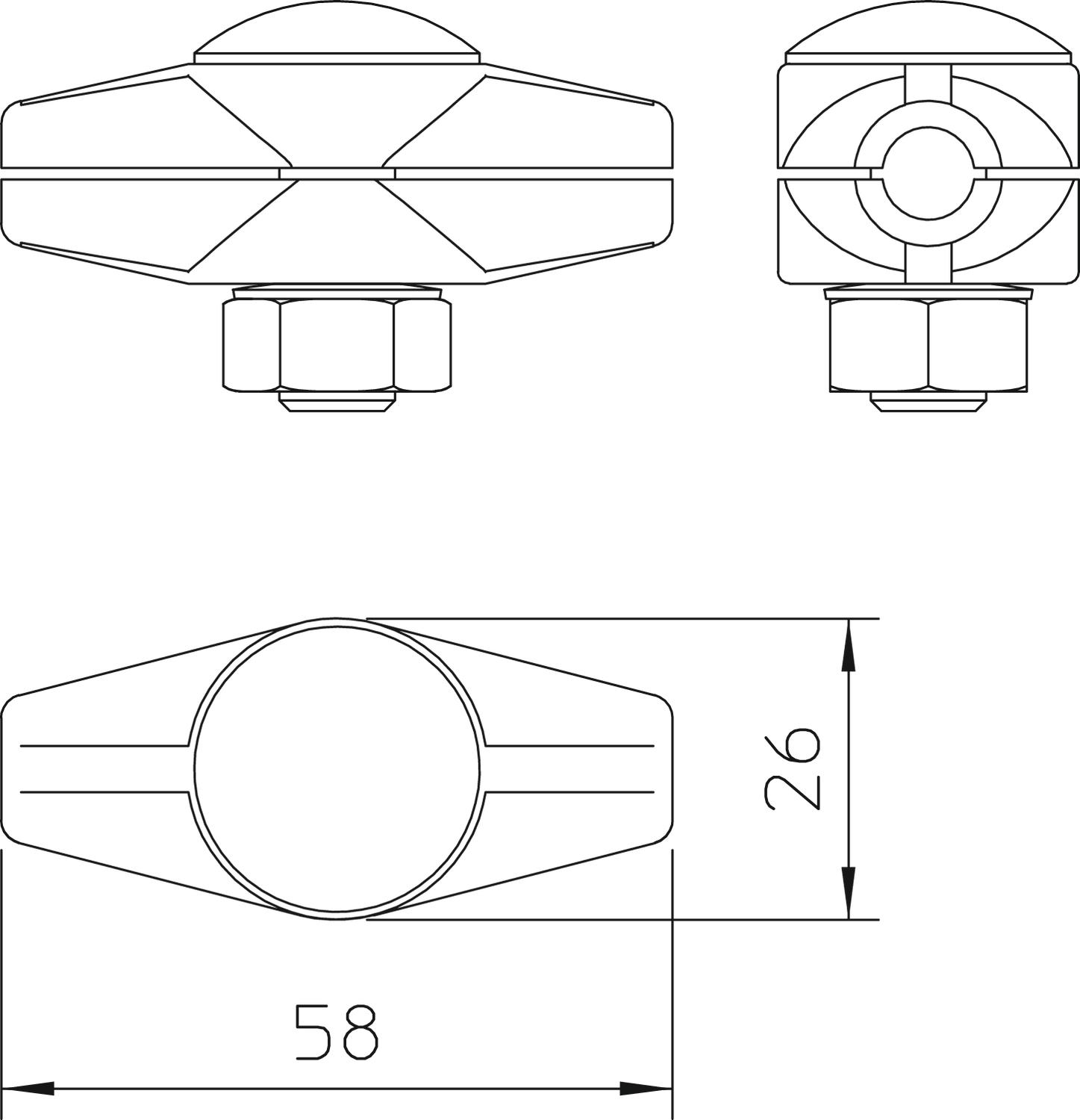

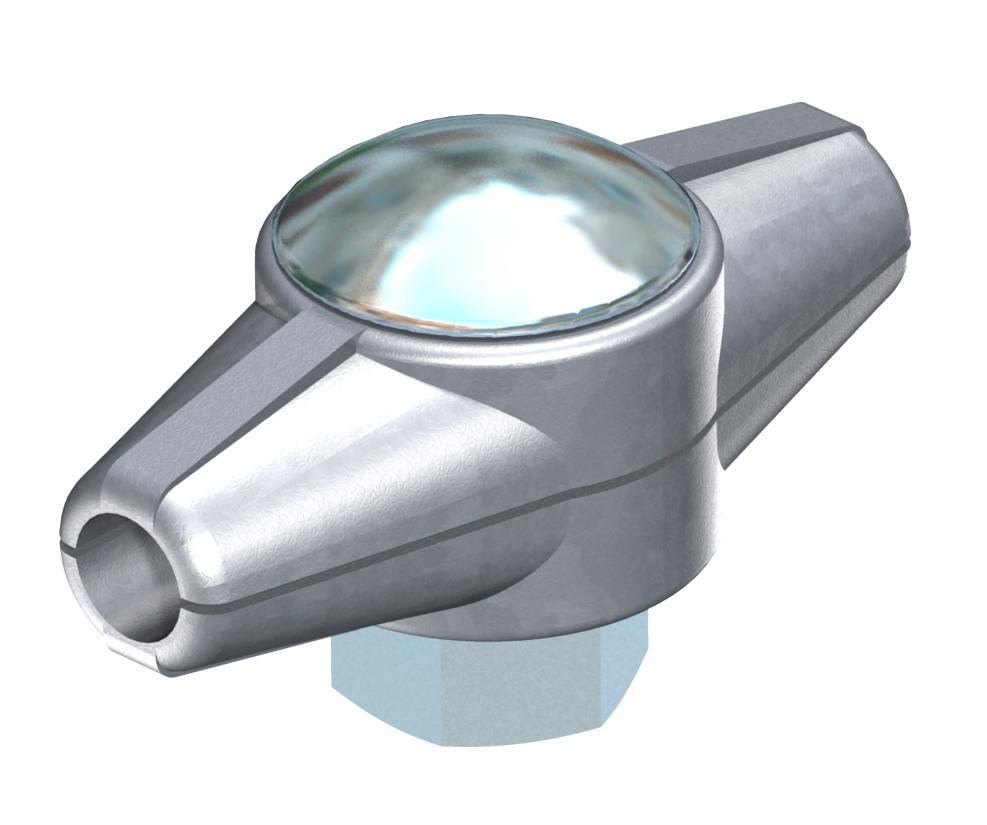

Straight connector Rd 8 mm

Item no. 5329078 | EAN 4012195423195

5329078 / 239
Rd 8 mm
Product description
Product description
• With truss-head bolt M10 x 30 and hexagonal nut M10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
  • Lightning current-tested
Technical data

Technical data

Dimension 8mm
Fit Rd 8 mm
Flat conductor width, conductor 1, max. 8 mm
Flat conductor width, conductor 1, min. 8 mm
Intermediate plate no
Lightning current carrying capacity N/50 kA
Material Die-cast zinc
Round conductor diameter, conductor 1, max. 8 mm
Round conductor diameter, conductor 1, min. 8 mm
Suitable for connection Round conductor Rd 8 / Rd 8
Surface Electrogalvanized
Type of connector Connectors
Type of fastening screw Gutter bolt
All types

All types

Types Fit Item no. Quantity SSU
239 Rd 8 mm 5329078
20 piece
Downloads

Download

Download

EU declaration of conformity 239 / 5329078 , 0.06MB , pdf
