Strain relief clip 7901
Item no. 1435019 | EAN 4012195134831
- Product description
-

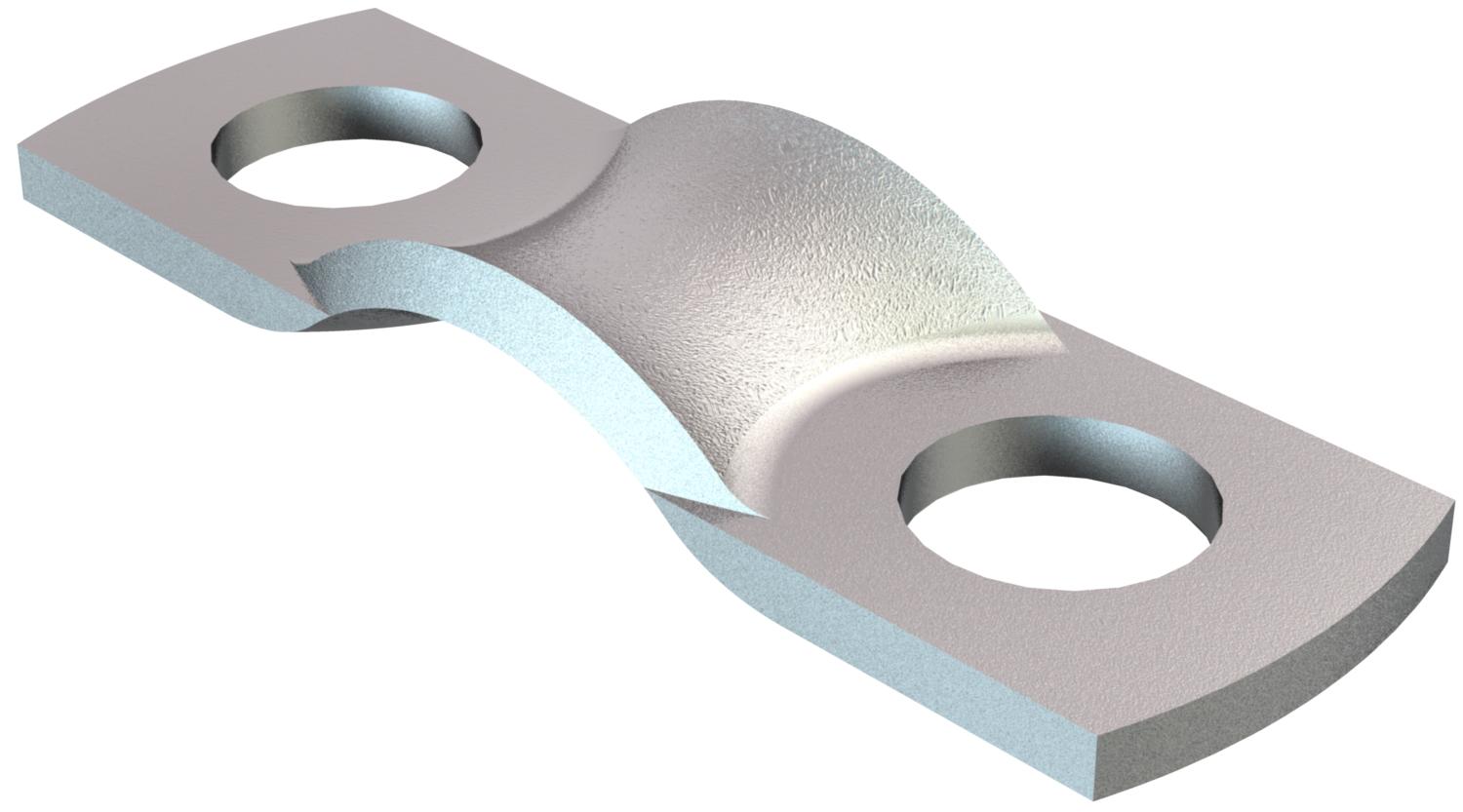

Product descriptionStrain relief clip 5 mm
-
- Technical data
-
Technical data

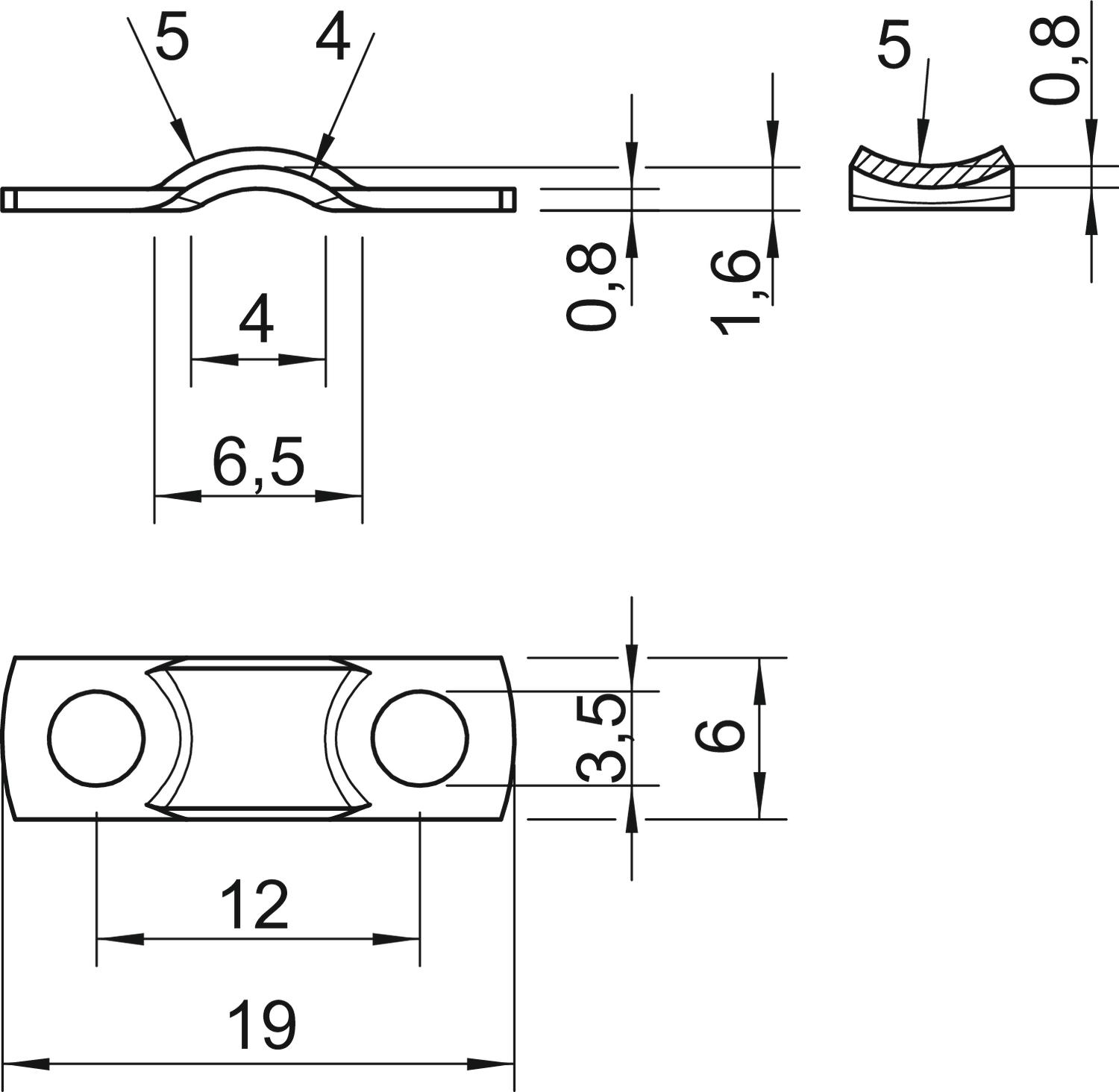

Clamping range D, max. 5 mm Clamping range D, min. 5 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,0017 kg CO₂e / 1 Piece Dimension 5mm Dimension (mm) 4 mm Dimension a1 (mm) 6,5 mm Dimension a2 4 mm Dimension b 6 mm Dimension d 3,5 mm Dimension h 1,6 mm Dimension H1 (mm) 0,8 Dimension l 12 mm Dimension L 19 mm Dimension R 5 mm Dimension r1 (mm) 5 Dimension t 0,8 mm Distance to the wall no Fastening type Screw hole For diameter 5 Halogen-free yes Height 1,6 mm Hole size 3,5 mm Length 19 mm Material Steel Material thickness 0,8 mm Nominal diameter 5 mm Number of cables/pipes 1 Plastic-covered no Size I Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 6 mm - All types
- Downloads
-
Data sheet 7901 5 G / 1435019 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 7901 5 G / 1435019 , 0.06MB , pdfREACH Declaration of conformity 7901 5 G / 1435019 , 0.12MB , pdfRoHS Declaration of conformity 7901 5 G / 1435019 , 0.12MB , pdf
