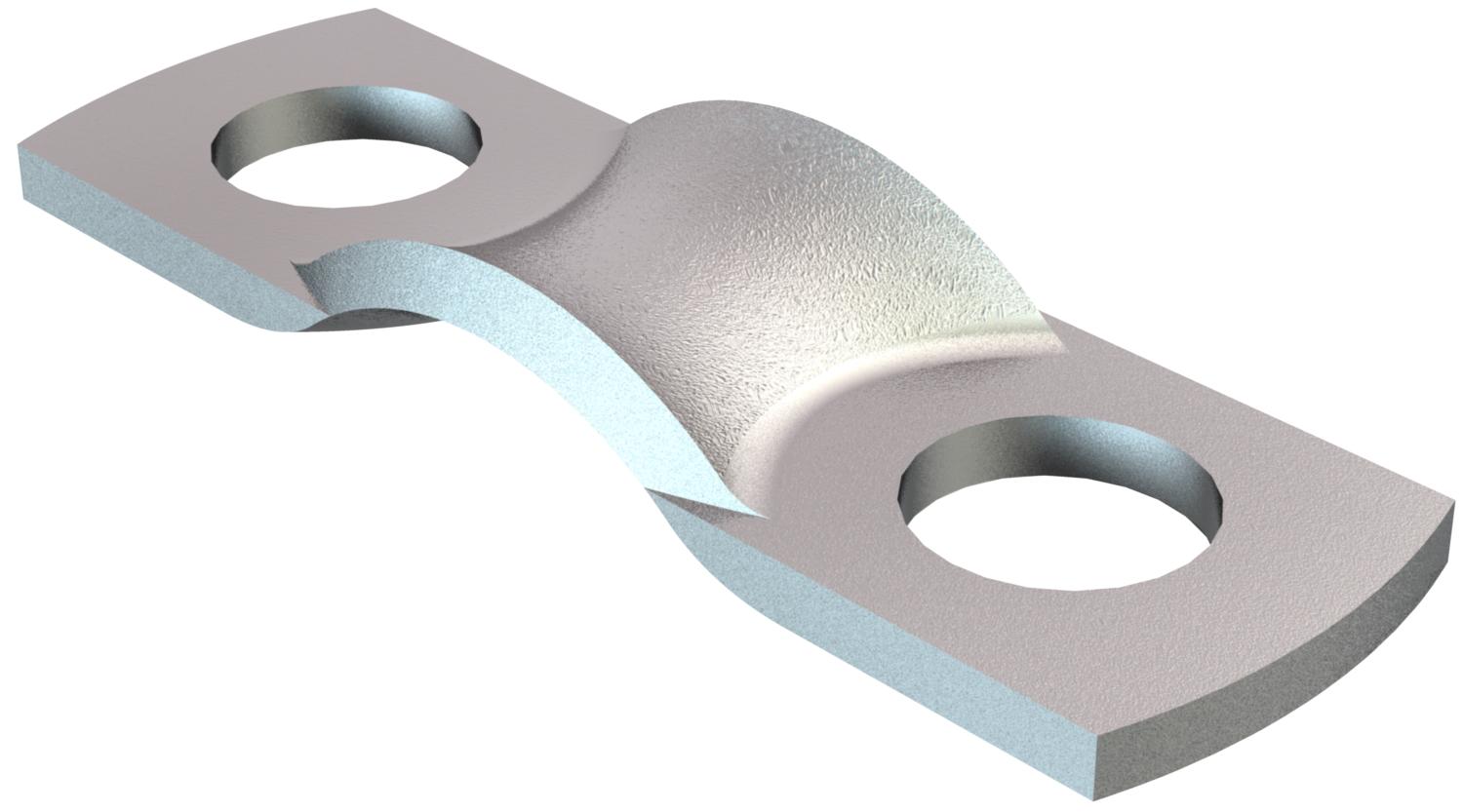

Strain relief clip 7901
Item no. 1435027 | EAN 4012195134893
- Product description
-
Product descriptionFastening clip for strain relief of cables
-
- Technical data
-
Technical data

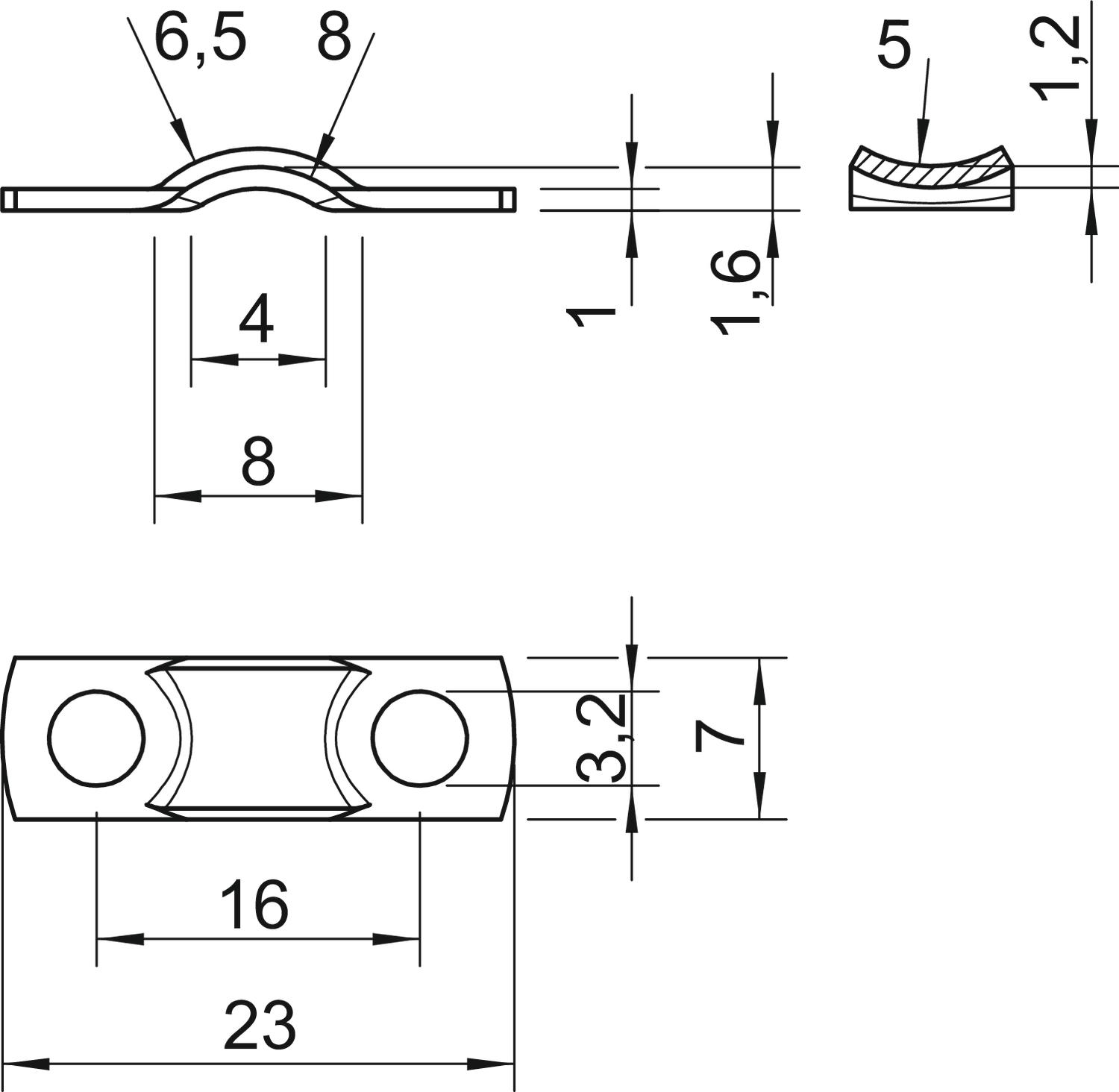

Clamping range D, max. 6,5 mm Clamping range D, min. 6,5 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,0032 kg CO₂e / 1 Piece Dimension 6,5mm Dimension (mm) 8 mm Dimension a1 (mm) 8 mm Dimension a2 4 mm Dimension b 7 mm Dimension d 3,2 mm Dimension h 1,6 mm Dimension H1 (mm) 1,2 Dimension L 23 mm Dimension l 16 mm Dimension R 6,5 mm Dimension r1 (mm) 5 Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 6,5 Halogen-free yes Height 1,6 mm Hole size 3,2 mm Length 23 mm Material Steel Material thickness 1 mm Nominal diameter 6,5 mm Number of cables/pipes 1 Plastic-covered no Size II Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 7 mm - All types
- Downloads
-
Data sheet 7901 6.5 G / 1435027 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 7901 6.5 G / 1435027 , 0.06MB , pdfREACH Declaration of conformity 7901 6.5 G / 1435027 , 0.12MB , pdfRoHS Declaration of conformity 7901 6.5 G / 1435027 , 0.12MB , pdf
