Strain relief clip 7902

Item no. 1436015 | EAN 4012195134954

1 mm
Product description
Product description

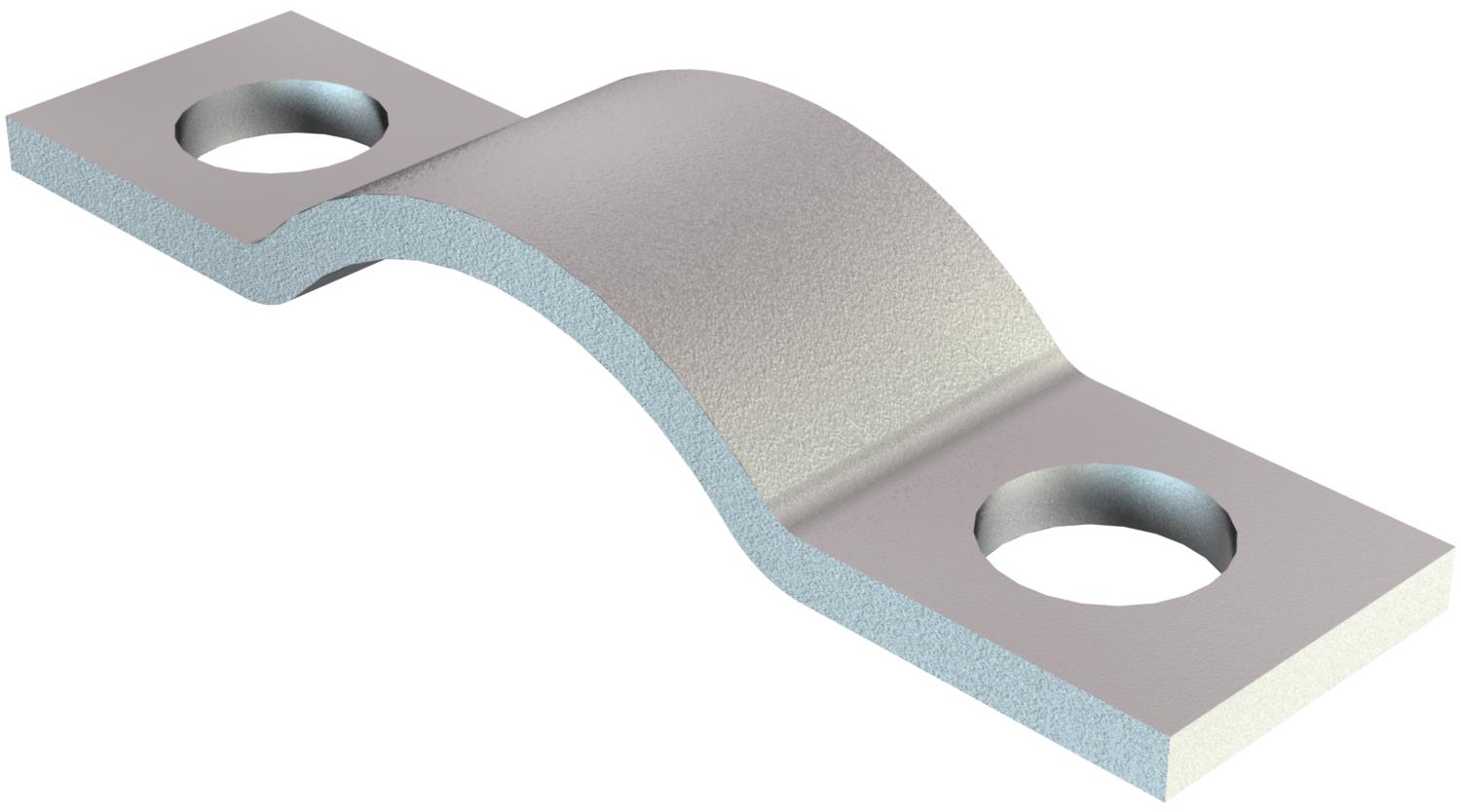

Fastening clip for strain relief of cables
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 6,5 mm
Clamping range D, min. 6,5 mm
CO₂ Footprint (GWP) Cradle-to-Gate 0,0034 kg CO₂e / 1 Piece

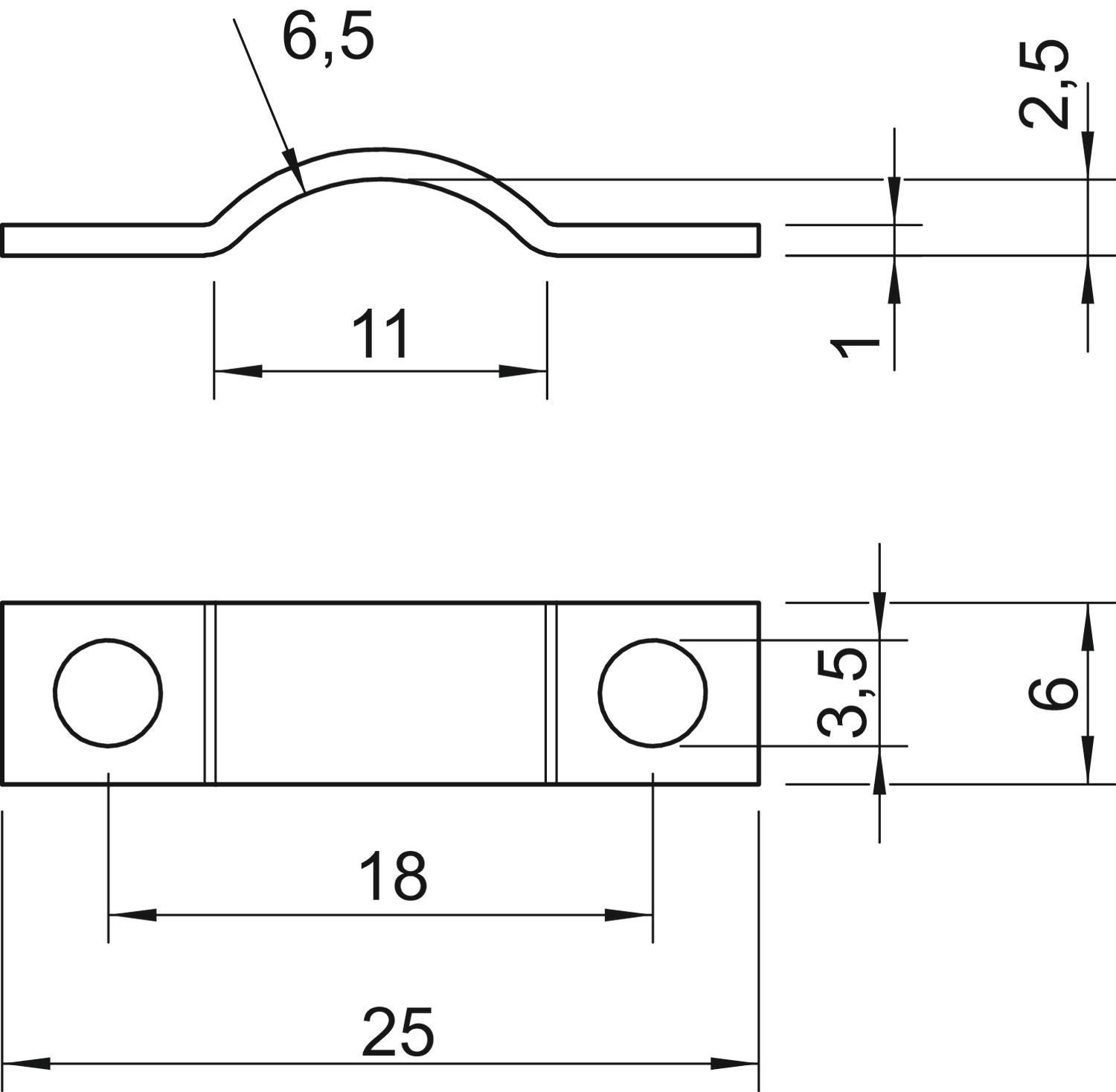

Dimension 6,5mm
Dimension a 11 mm
Dimension b 6 mm
Dimension d 3,5 mm
Dimension h 2,5 mm
Dimension l 18 mm
Dimension L 25 mm
Dimension R 6,5 mm
Dimension t 1 mm
Distance to the wall no
Fastening type Screw hole
For diameter 6,5
Halogen-free yes
Height 2,5 mm
Hole size 3,5 mm
Length 25 mm
Material Steel
Material thickness 1 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Two-lobe
Width 6 mm
All types

All types

Types For diameter Material thickness Hole size Item no. Quantity SSU
7902 6 G 6,5 1 mm 3,5 mm 1436015
100 piece
7902 8 G 8 1 mm 4 mm 1436023
100 piece
