Strain relief clip 7902

Item no. 1436023 | EAN 4012195135012

1 mm
Product description

Product description

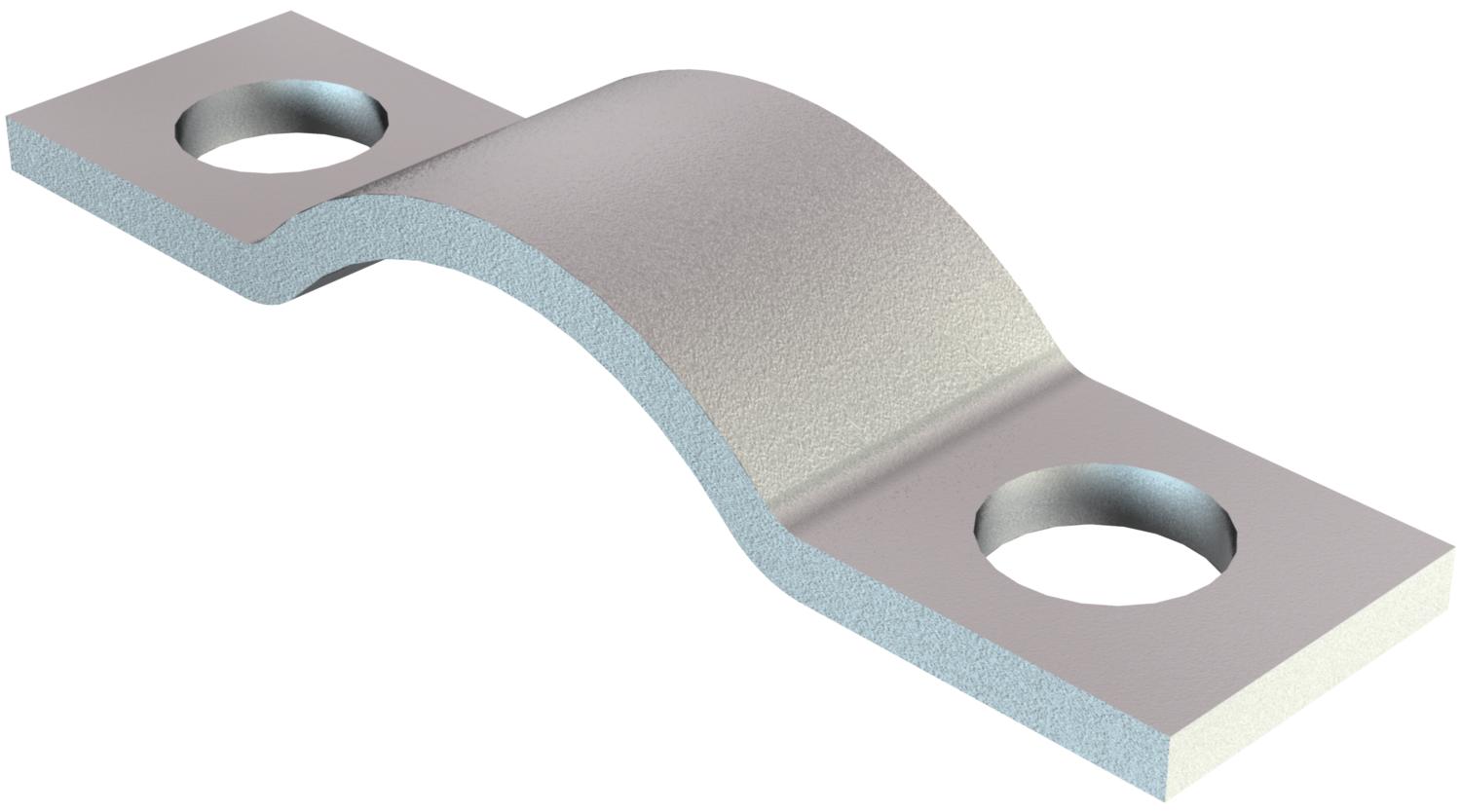

Fastening clip for strain relief of cables
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

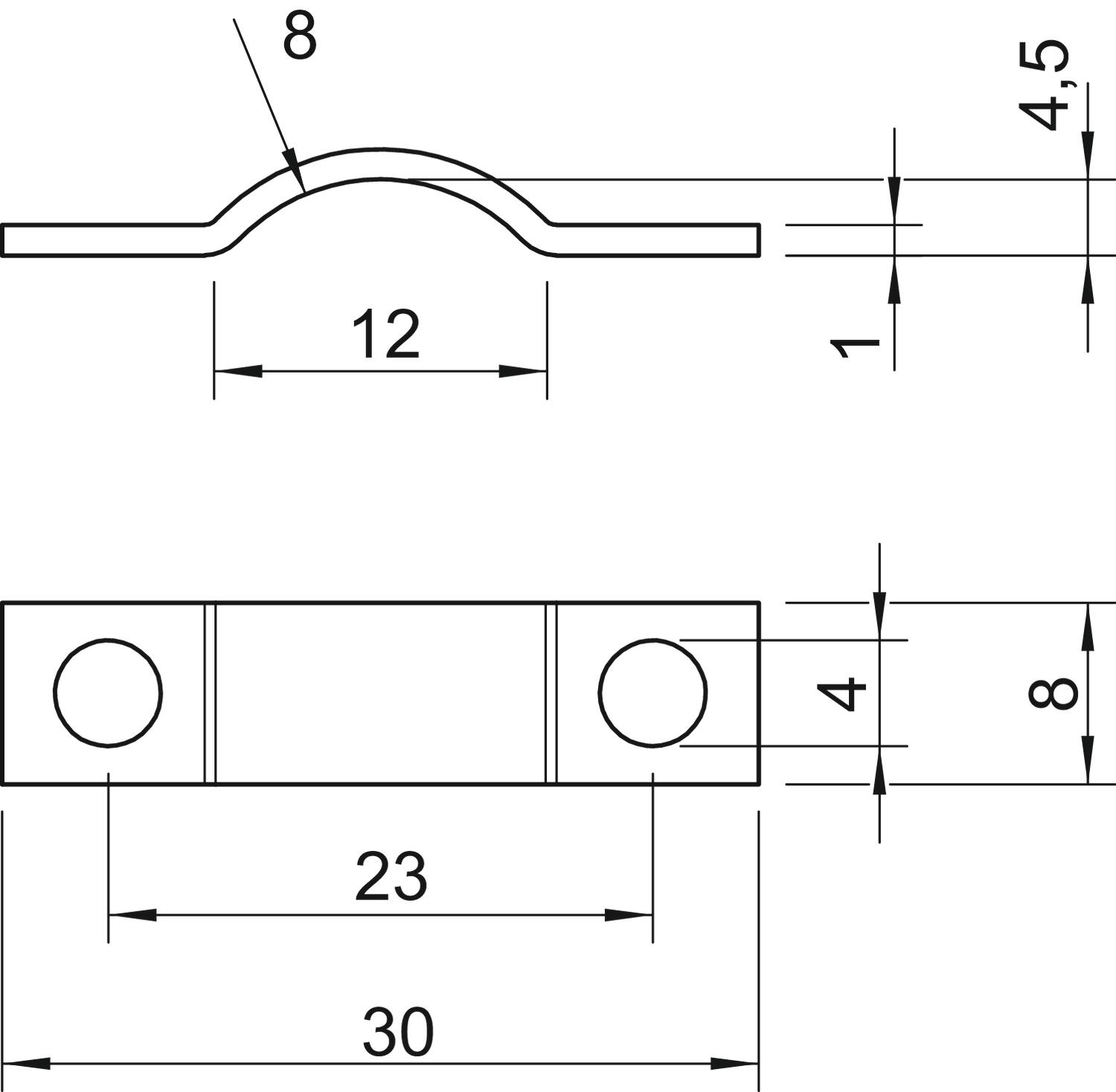

Clamping range D, max. 8 mm
Clamping range D, min. 8 mm
Dimension 8mm
Dimension a 12 mm
Dimension b 8 mm
Dimension d 4 mm
Dimension h 4,5 mm
Dimension L 30 mm
Dimension l 23 mm
Dimension R 8 mm
Dimension t 1 mm
Distance to the wall no
Fastening type Screw hole
For diameter 8
Halogen-free yes
Height 4,5 mm
Hole size 4 mm
Length 30 mm
Material Steel
Material thickness 1 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Two-lobe
Width 8 mm
All types

All types

Types For diameter Material thickness Hole size Item no. Quantity SSU
7902 6 G 6,5 1 mm 3,5 mm 1436015
100 piece
7902 8 G 8 1 mm 4 mm 1436023
100 piece
