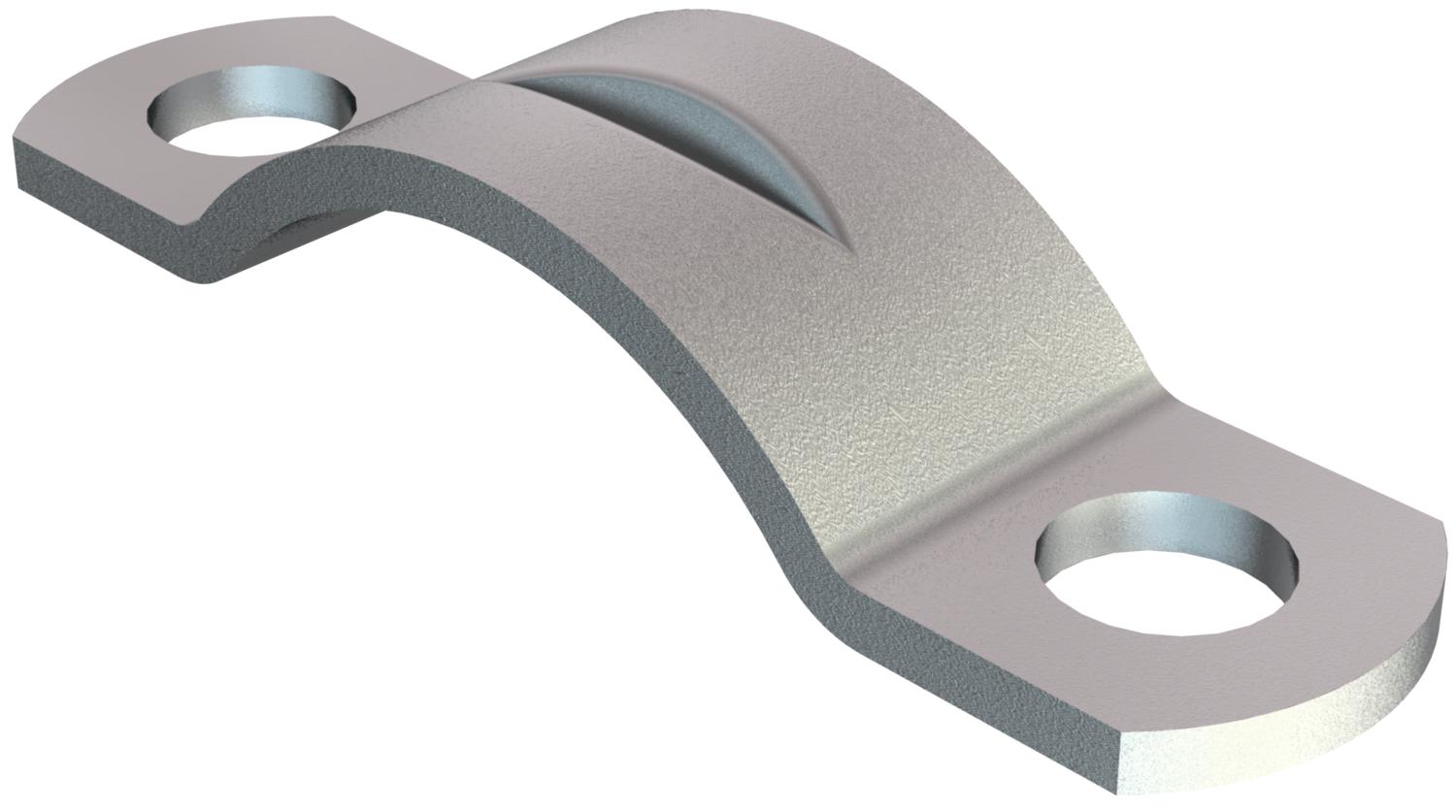

Strain relief clip 7903

Item no. 1437003 | EAN 4012195135074

Product description
Product description
Fastening clip for strain relief of cables
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 6 mm
Clamping range D, min. 6 mm
CO₂ Footprint (GWP) Cradle-to-Gate 0,003 kg CO₂e / 1 Piece

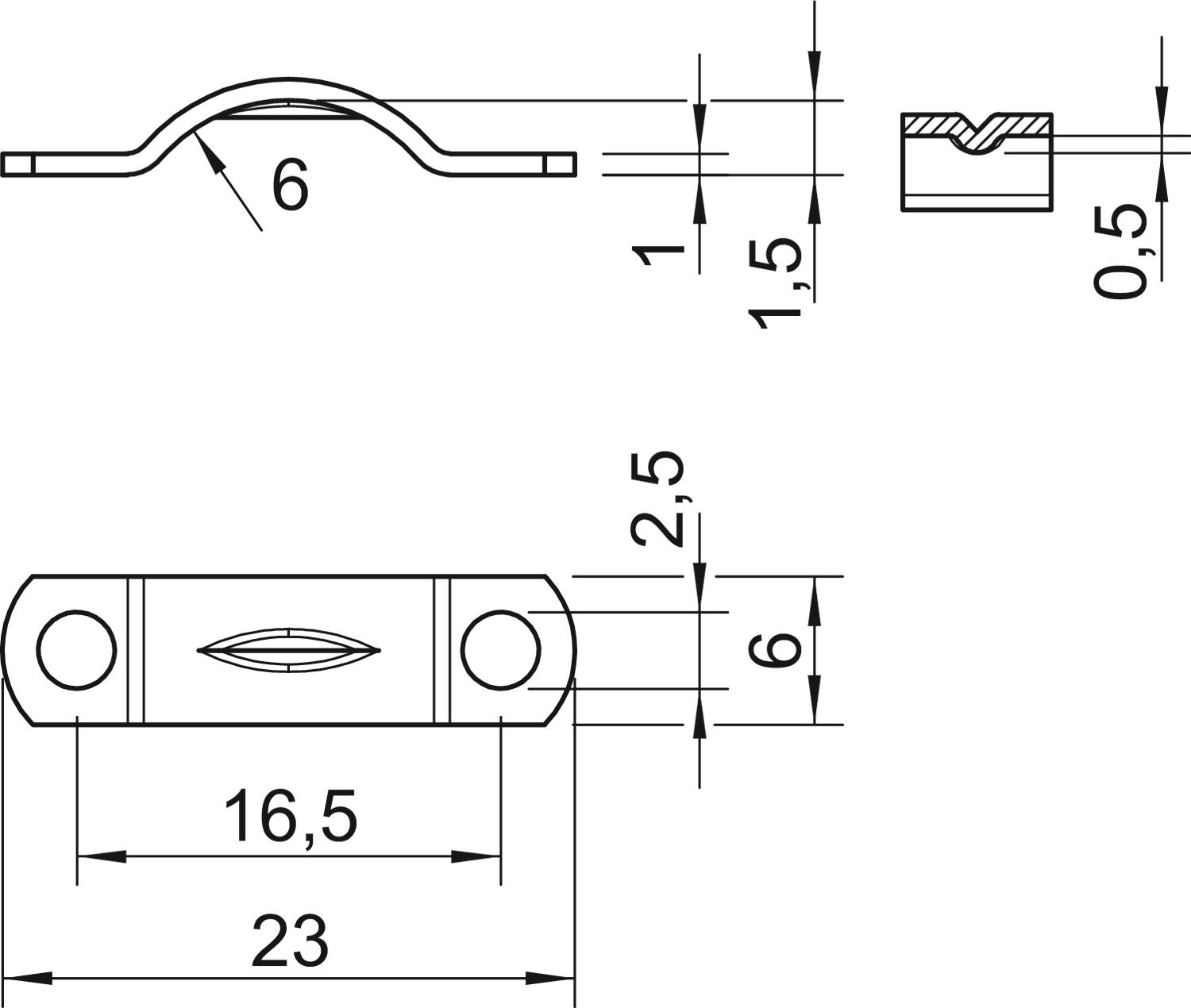

Dimension 6mm
Dimension b 6 mm
Dimension d 2,5 mm
Dimension h 1,5 mm
Dimension H1 (mm) 0,5
Dimension l 16,5 mm
Dimension L 23 mm
Dimension R 6 mm
Dimension t 1 mm
Distance to the wall no
Fastening type Screw hole
For diameter 6
Halogen-free yes
Height 1,5 mm
Hole size 2,5 mm
Length 23 mm
Material Steel
Material thickness 0,5 mm
Nominal diameter 6 mm
Number of cables/pipes 1
Plastic-covered no
Size I
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Two-lobe
Width 6 mm
All types

All types

Types For diameter Material thickness Hole size Item no. Quantity SSU
7903 6 G 6 0.5 mm 2,5 mm 1437003
100 piece
7903 8 G 8 0.8 mm 3,6 mm 1437011
100 piece
7903 9 G 9 1 mm 4,5 mm 1437038
100 piece
