Strain relief clip 7903

Item no. 1437011 | EAN 4012195135135

Product description

Product description

Fastening clip for strain relief of cables
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

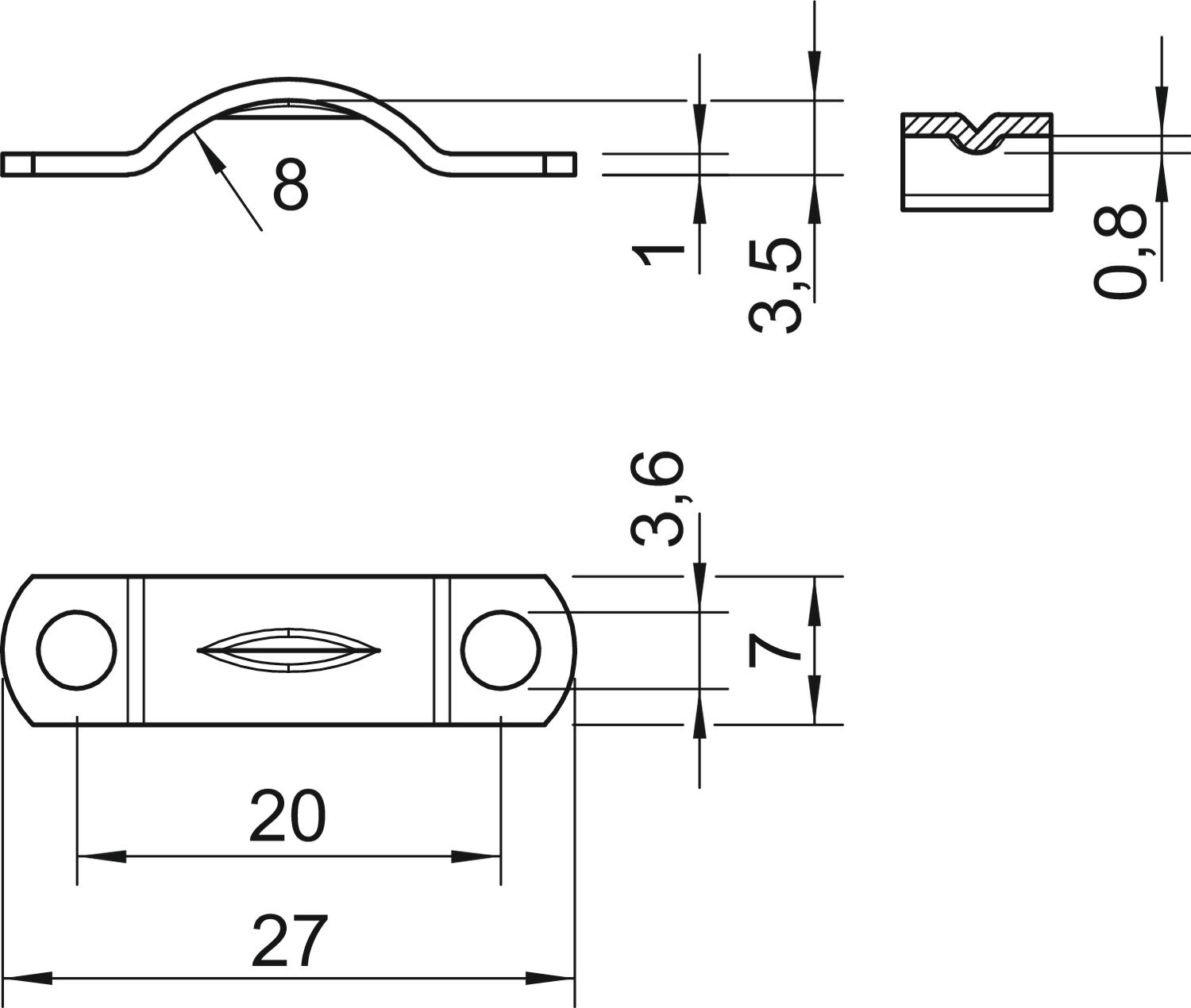

Clamping range D, max. 8 mm
Clamping range D, min. 8 mm
Dimension 8mm
Dimension b 7 mm
Dimension d 3,6 mm
Dimension h 3,5 mm
Dimension H1 (mm) 0,8
Dimension L 27 mm
Dimension l 20 mm
Dimension R 8 mm
Dimension t 1 mm
Distance to the wall no
Fastening type Screw hole
For diameter 8
Halogen-free yes
Height 3,5 mm
Hole size 3,6 mm
Length 27 mm
Material Steel
Material thickness 0,8 mm
Nominal diameter 8 mm
Number of cables/pipes 1
Plastic-covered no
Size II
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Two-lobe
Width 7 mm
All types

All types

Types For diameter Material thickness Hole size Item no. Quantity SSU
7903 6 G 6 0.5 mm 2,5 mm 1437003
100 piece
7903 8 G 8 0.8 mm 3,6 mm 1437011
100 piece
7903 9 G 9 1 mm 4,5 mm 1437038
100 piece
