Strain relief clip 7905

Item no. 1439014 | EAN 4012195135319

1439014 / 7905 5 G
5
0.8 mm
3,5 mm
Product description
Product description
Strain relief clip 5 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 5 mm
Clamping range D, min. 5 mm
CO₂ Footprint (GWP) Cradle-to-Gate 0,003 kg CO₂e / 1 Piece

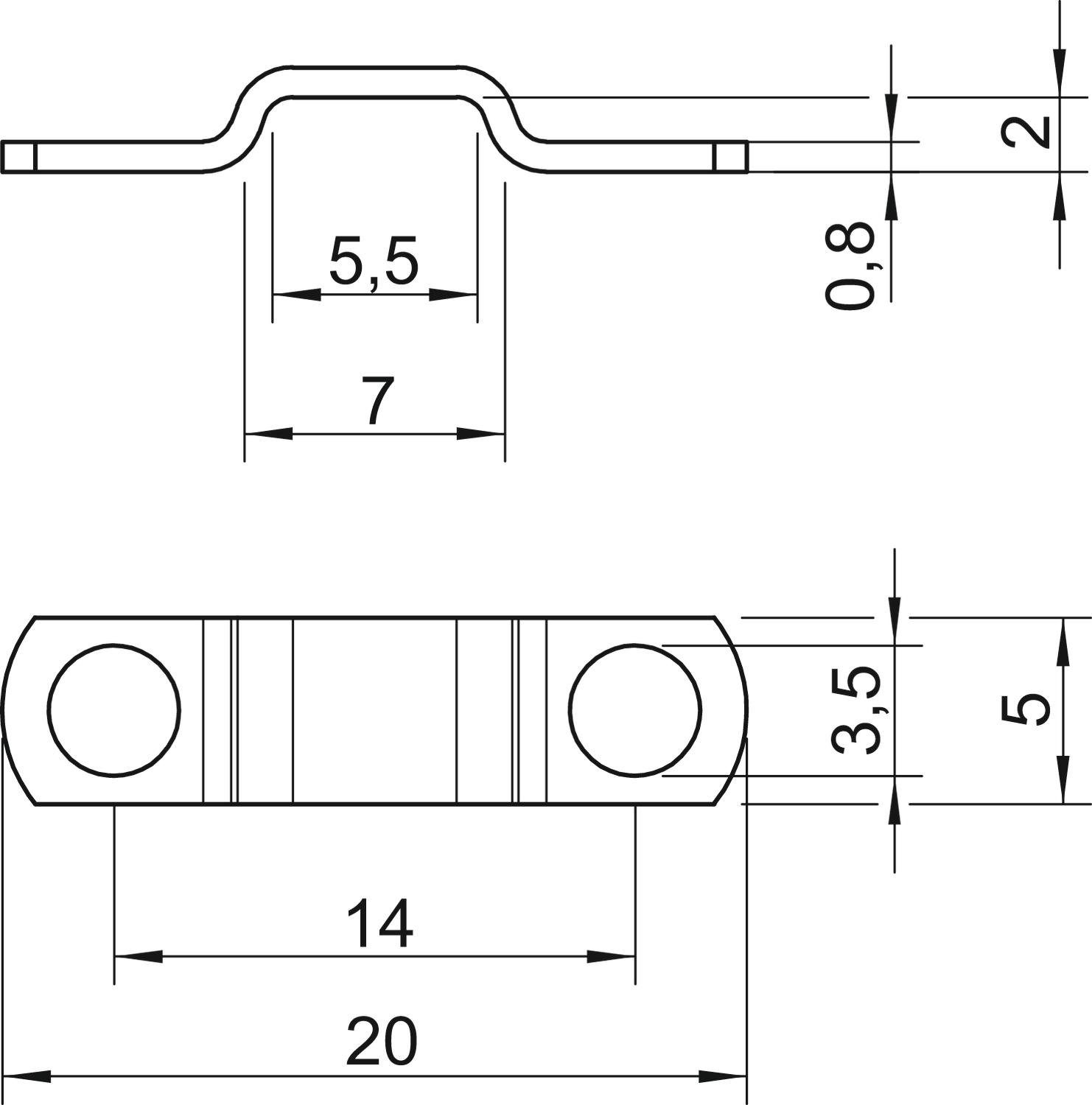

Dimension 5mm
Dimension a 7 mm
Dimension a1 (mm) 5,5 mm
Dimension b 5 mm
Dimension d 3,5 mm
Dimension h 2 mm
Dimension L 20 mm
Dimension l 14 mm
Dimension t 0,8 mm
Distance to the wall no
Fastening type Screw hole
For diameter 5
Halogen-free yes
Height 2 mm
Hole size 3,5 mm
Length 20 mm
Material Steel
Material thickness 0,8 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Two-lobe
Width 5 mm
All types

All types

Types For diameter Material thickness Hole size Item no. Quantity SSU
7905 5 G 5 0.8 mm 3,5 mm 1439014
3600 piece
