- Product description
-
Product description

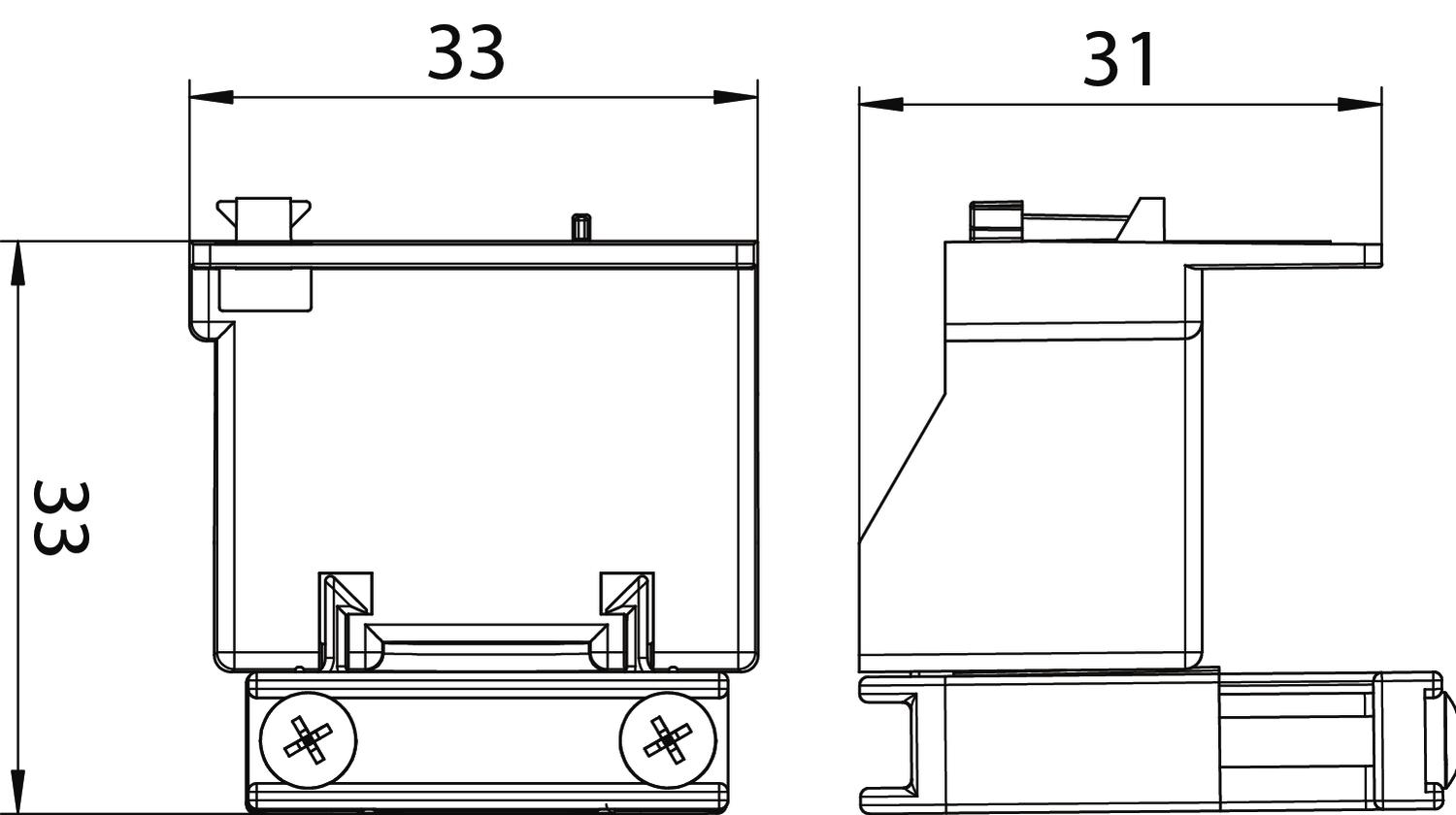

Strain relief for Modul 45 sockets, type STD, connectable at side, for the fastening of a 3-core cable, max. Ø 10 mm, suitable for protective contact sockets at direction of insertion 0° and sockets with earthing pin at direction of insertion 0°.
- Technical data
-
Technical data
Colour Black Material Polycarbonate Nominal voltage 250 V Surface version Matt - All types
- Downloads
-
Data sheet ZL-STD 0 / 6120782 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity ZL-STD 0 / 6120782 , 0.12MB , pdfRoHS Declaration of conformity ZL-STD 0 / 6120782 , 0.12MB , pdfMounting instructions Mounting instructions, strain relief for Modul 45 sockets 0° ZL-STD-0 , 0.13MB , pdf
