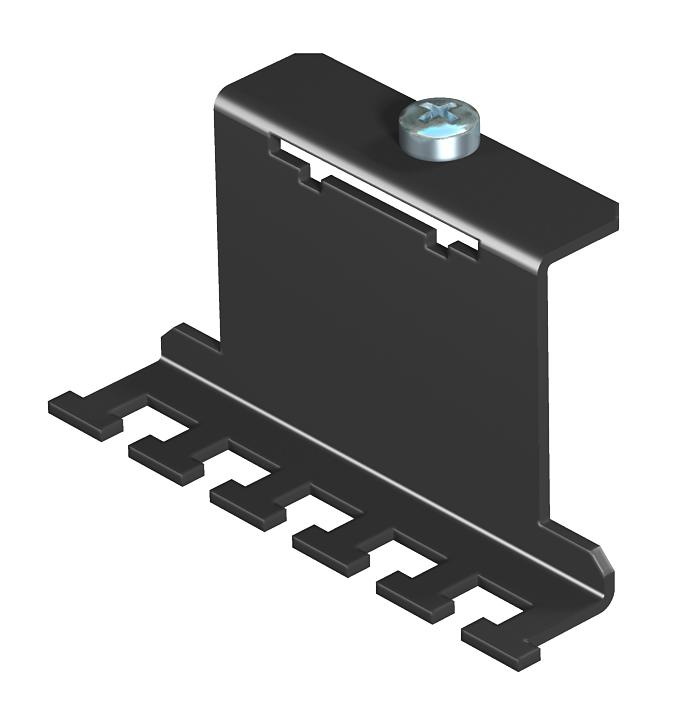

Strain relief for mounting support

Item no. 7407844 | EAN 4012195113300

Product description

Product description

For mounting on the MTU 2 and MTU 3 mounting supports for strain relief of incoming connection cables.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives

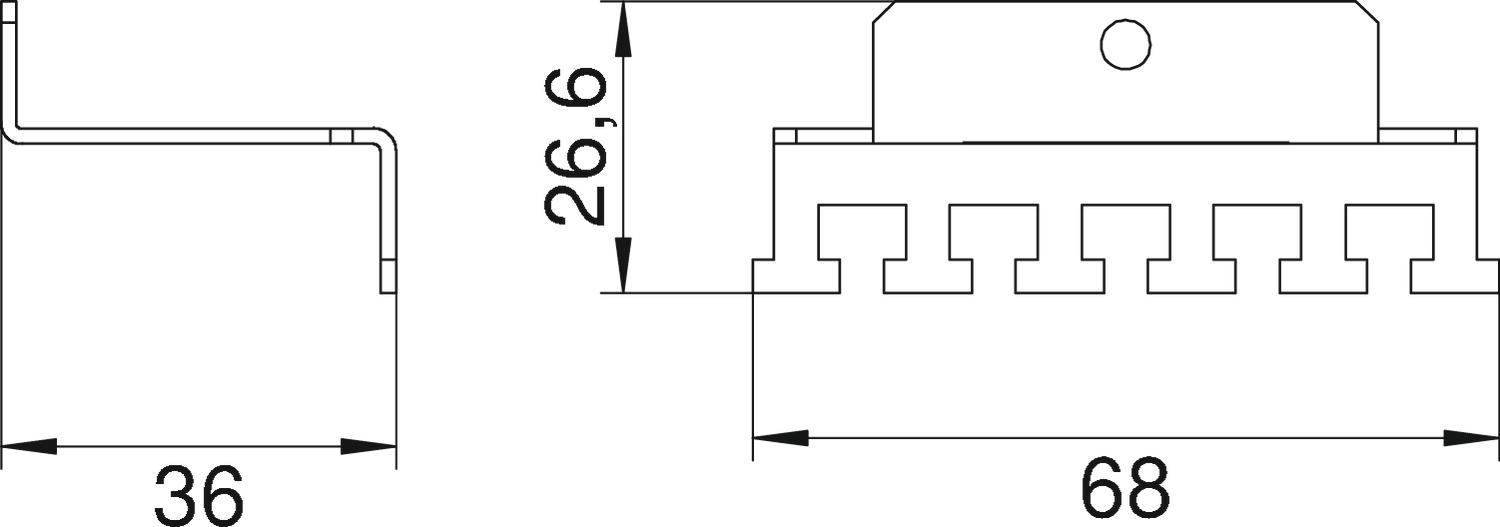

Technical data

Technical data

Colour Jet black; RAL 9005
Decouplable no
Depth 36 mm
Floor covering protection frame no
Floor plate no
Heavy-duty version no
Installation opening for on-floor tank no
Labelling panel no
Length 68 mm
Lowerable to be flush-floor no
Material Steel
Seal installation option no
Strain relief option yes
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts yes
Suitable for underfloor ducts yes
Surface Strip galvanized
Width 26,6 mm
With floor covering recess no
All types

All types

Types Item no. Quantity SSU
MTU ZE 7407844
20 piece
Downloads

Download

No invitation to tender text is available for this product.
