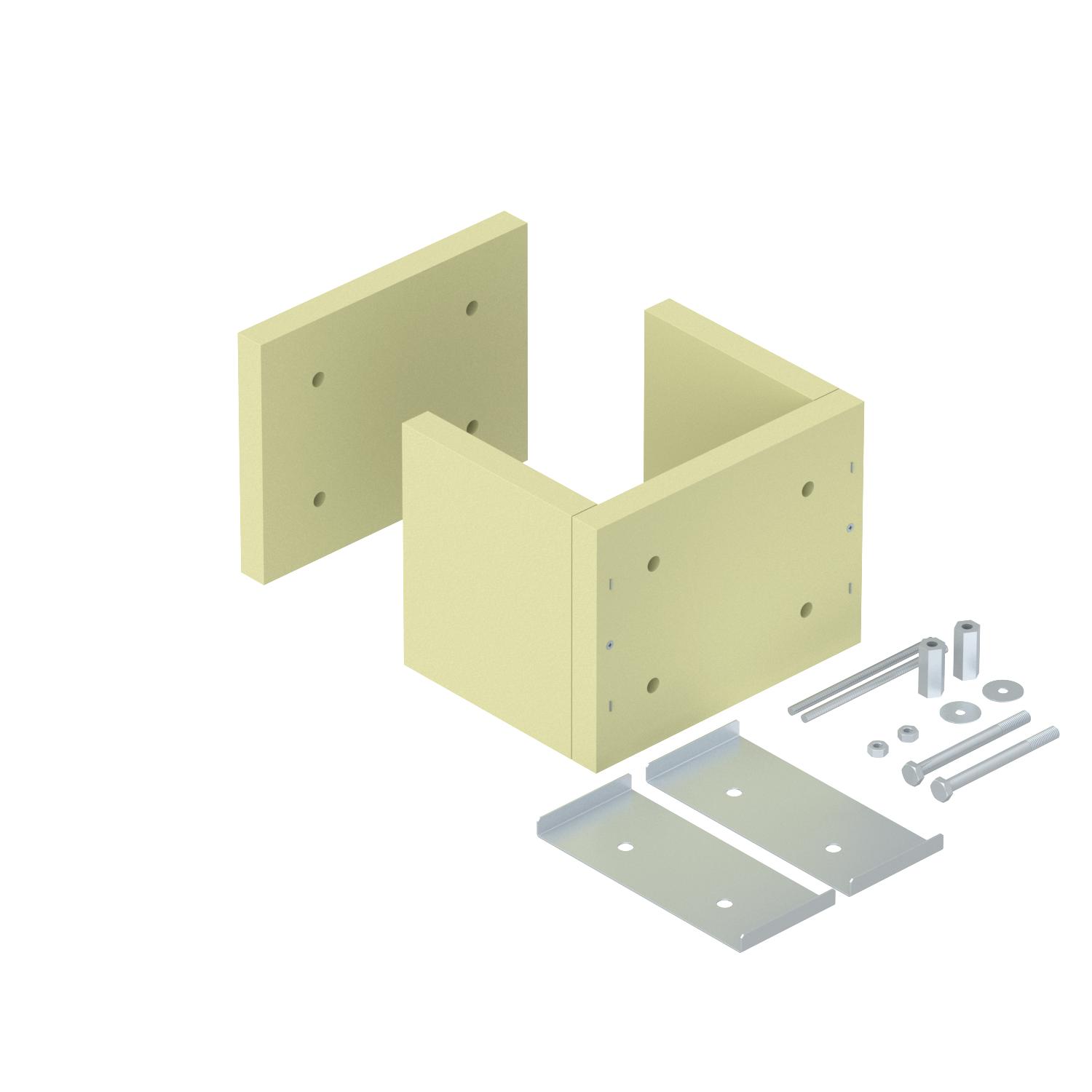

Strain relief on four sides, empty housing, internal height 175 mm

Item no. 7215780 | EAN 4012196814725

200 mm
225 mm
175 mm
Product description

Product description

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12. Approved for all cable types and vertical ladders, created as suspended mounting. Maintenance of electrical function classes E30 to E90. Empty housing for individual filling with the PYROSIT® NG fire protection foam and/or PYROPLUG® Block insulation systems, incl. mounting set and labelling panel.


Technical data

Technical data

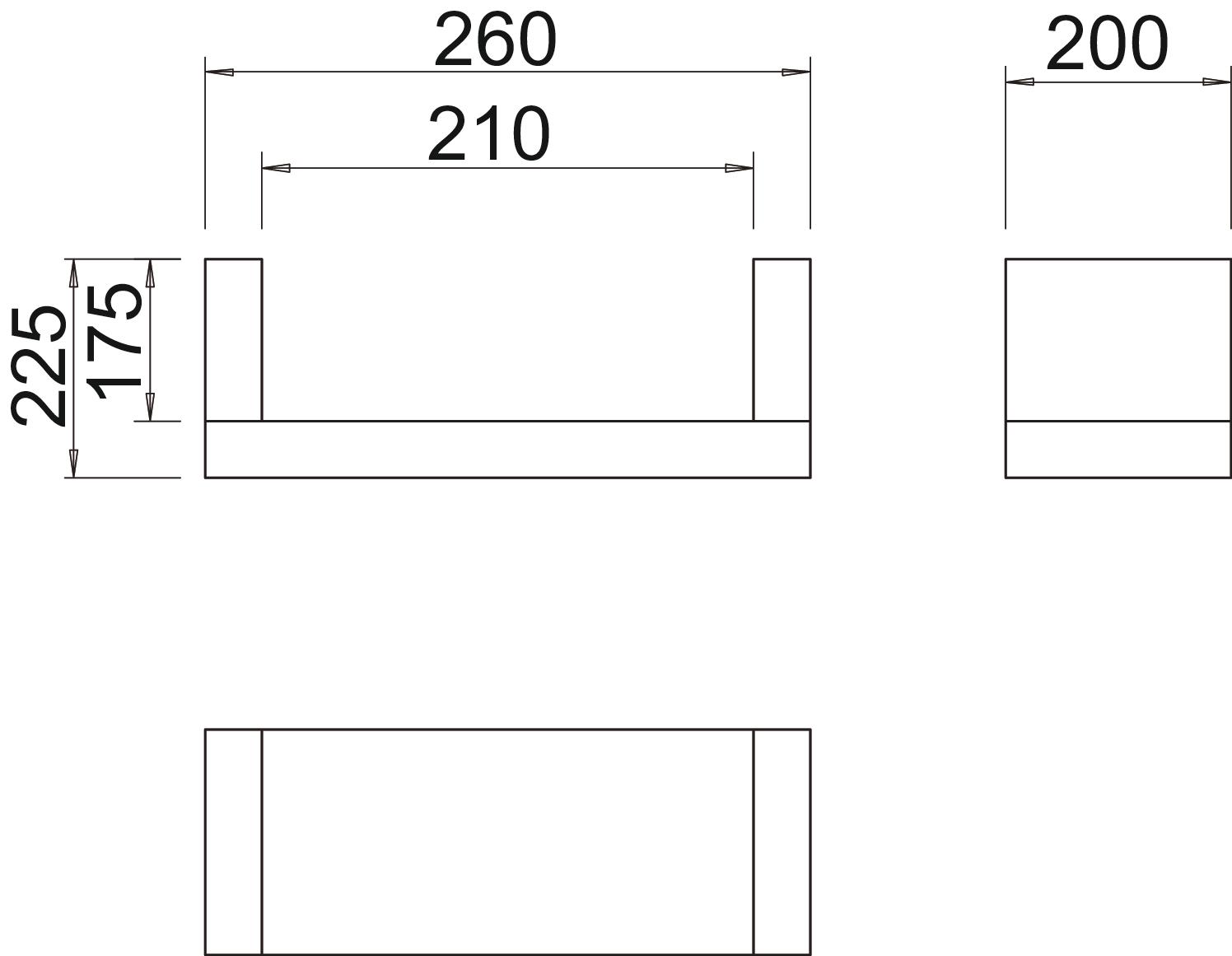

Dimension 260x225x200
Dimension B 260 mm
Dimension b 210 mm
Dimension H 200 mm
Dimension t 175 mm
Dimension t 225 mm
Height 225 mm
Length 200 mm
Material Calcium silicate
Shape Rectangular
Thickness 25 mm
Width 260 mm
All types

All types

Types Dimension B Dimension b Dimension H Dimension t Dimension t Item no. Quantity SSU
ZSE90-21-17 LH 260 mm 210 mm 200 mm 225 mm 175 mm 7215780
1 piece
ZSE90-31-17 LH 360 mm 310 mm 200 mm 225 mm 175 mm 7215782
1 piece
ZSE90-41-17 LH 460 mm 410 mm 200 mm 225 mm 175 mm 7215784
1 piece
ZSE90-51-17 LH 560 mm 510 mm 200 mm 225 mm 175 mm 7215786
1 piece
ZSE90-61-17 LH 660 mm 610 mm 200 mm 225 mm 175 mm 7215788
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU

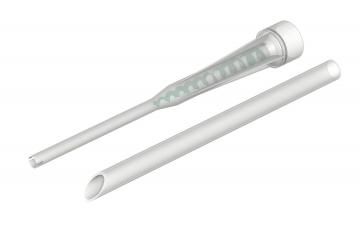

Mixer pipe set Mixer pipe set FBS-M 7203803
1 PU

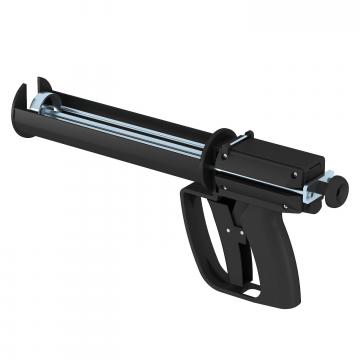

Professional cartridge pistol Professional cartridge pistol FBS-PH 7203806
1 piece

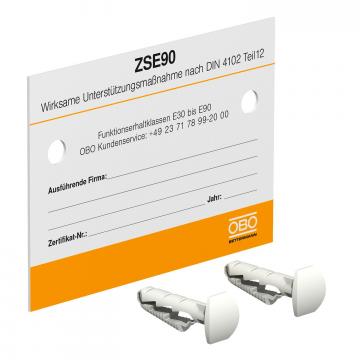

Identification plate for strain relief Identification plate for strain relief KS-ZSE DE 7215750
1 piece

Mounting accessories

Products Types Item no. Quantity SSU
2-component fire protection foam PYROSIT® NG 2-component fire protection foam PYROSIT® NG FBS-S 7203800
1 piece

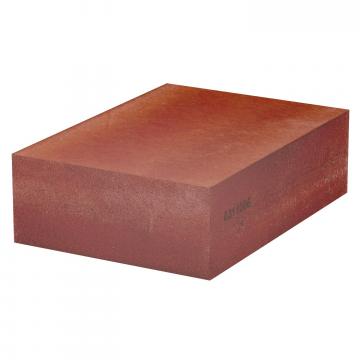

PYROPLUG® Block foam block PYROPLUG® Block foam block FBA-B200-14 7202505
4 piece

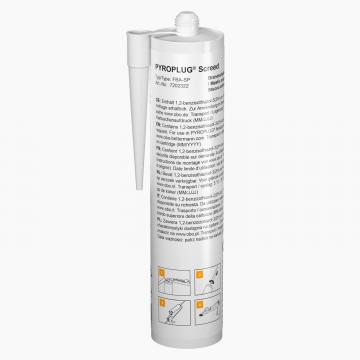

PYROPLUG® screed filler PYROPLUG® screed filler FBA-SP 7202322
1 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
