Strain relief on three sides, empty housing, internal height 115 mm 400 | 350 | 200 | 140 | 115

Strain relief on three sides, empty housing, internal height 115 mm

Item no. 7215762 | EAN 4012196814619

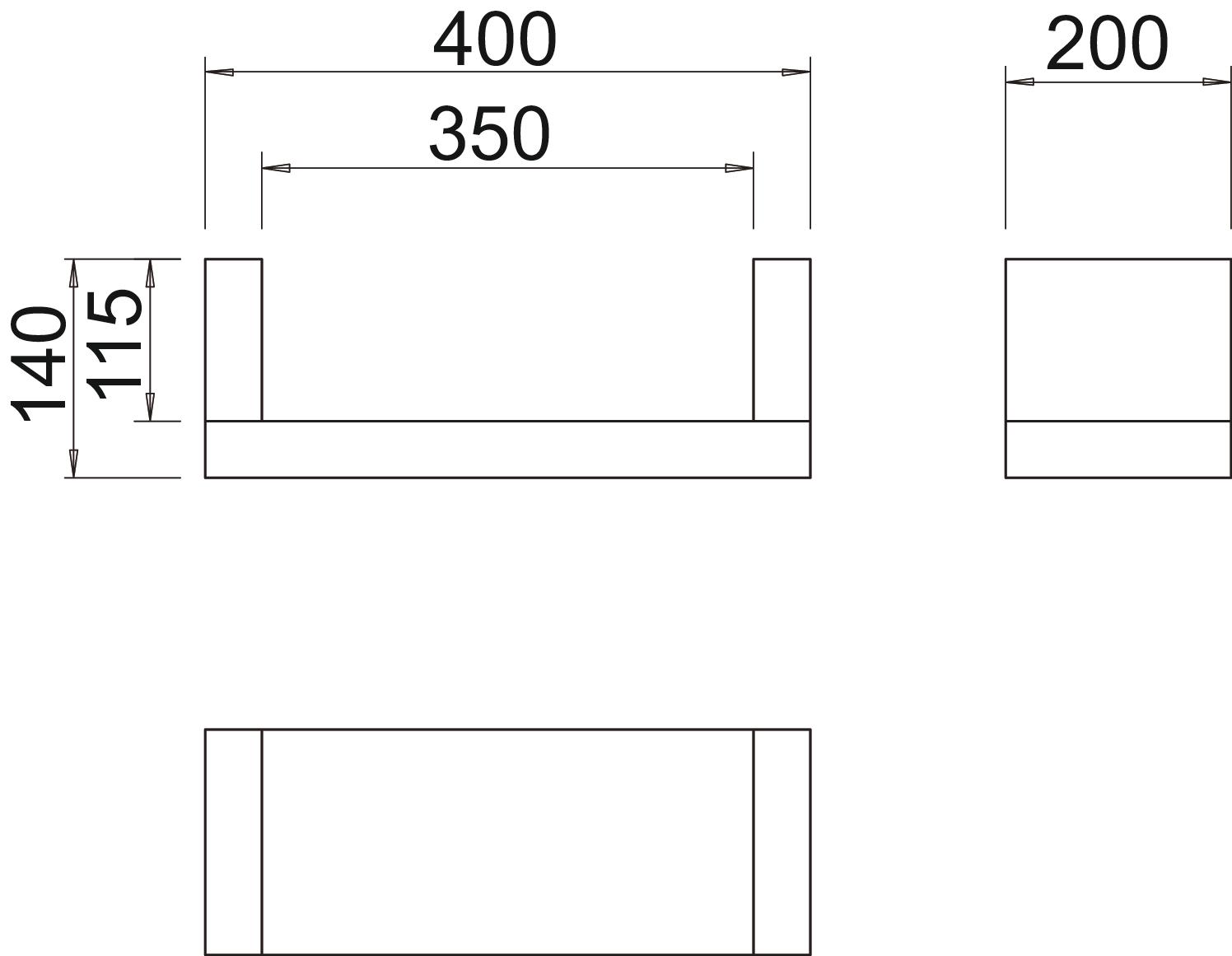

Item no. / Types

Dimension B

Dimension b

Dimension H	200 mm

Dimension t	140 mm

Dimension t	115 mm

Product description

Product description

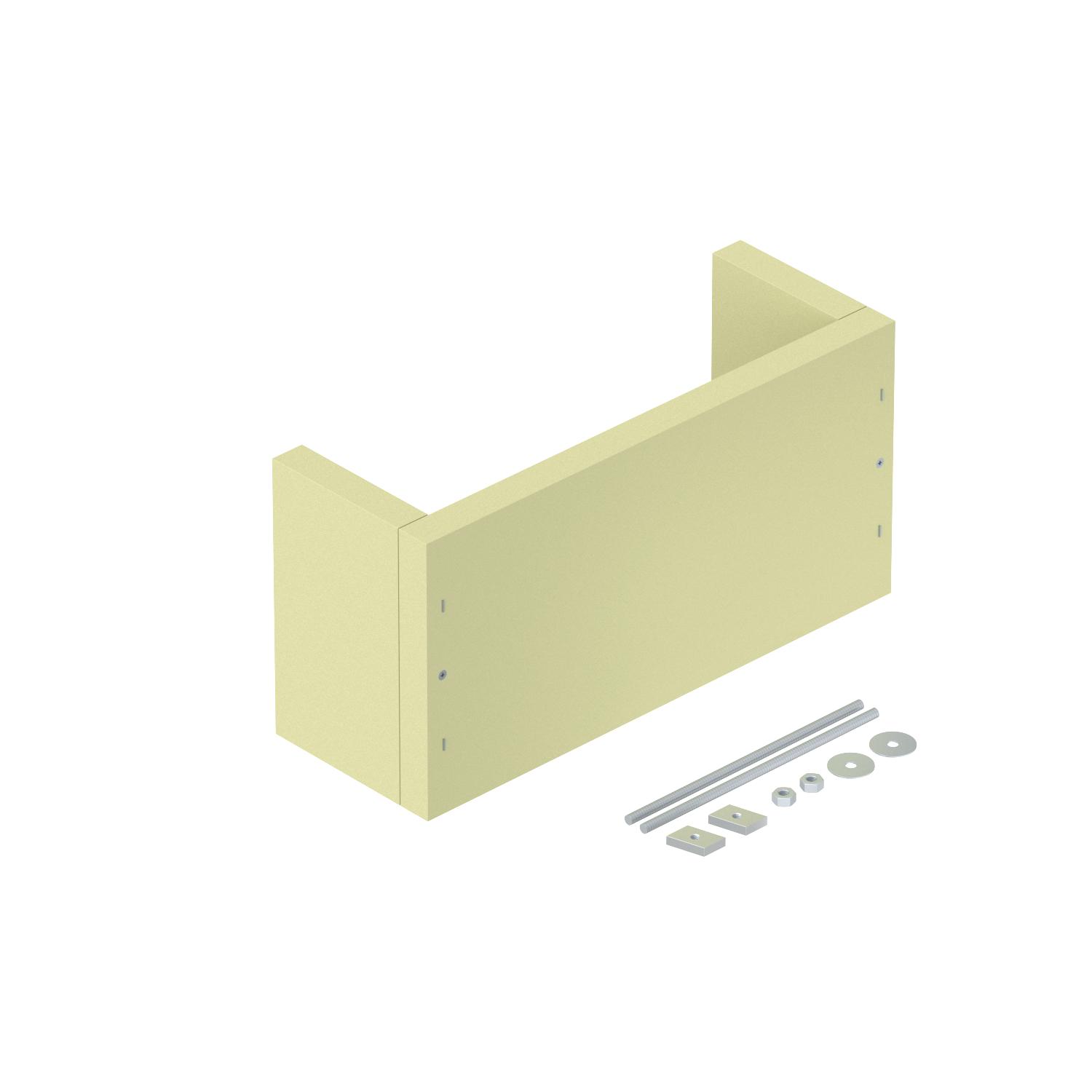

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12. Approved for all cable types and all vertical routing systems, which are mounted directly on solid walls. Maintenance of electrical function classes E30 to E90. Empty housing for individual filling with the PYROSIT® NG fire protection foam and/or PYROPLUG® Block insulation systems, incl. mounting set and labelling panel.

Technical data

Technical data

Accessories required	no
Colour	Cream; RAL 9001
Dimension	400x140x200
Dimension b	350 mm
Dimension B	400 mm
Dimension H	200 mm
Dimension t	115 mm

Dimension t	140 mm
Height	140 mm
Length	200 mm
Material	Calcium silicate
Shape	Rectangular
Thickness	25 mm
Width	400 mm

All types

All types

Types	Dimension B	Dimension b	Dimension H	Dimension t	Dimension t	Item no.	Quantity	SSU
ZSE90-25-11 L	300 mm	250 mm	200 mm	140 mm	115 mm	7215760	piece	1 piece
ZSE90-35-11 L	400 mm	350 mm	200 mm	140 mm	115 mm	7215762	piece	1 piece
ZSE90-45-11 L	500 mm	450 mm	200 mm	140 mm	115 mm	7215764	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Mixer pipe set	FBS-M	7203803	PU	1 PU
Professional cartridge pistol	FBS-PH	7203806	piece	1 piece
Identification plate for strain relief	KS-ZSE DE	7215750	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	piece	1 piece
PYROPLUG® Block foam block	FBA-B200-14	7202505	piece	4 piece
PYROPLUG® screed filler	FBA-SP	7202322	piece	1 piece
