Strain relief on three sides, empty housing, internal height 175 mm

Item no. 7215766 | EAN 4012196814657

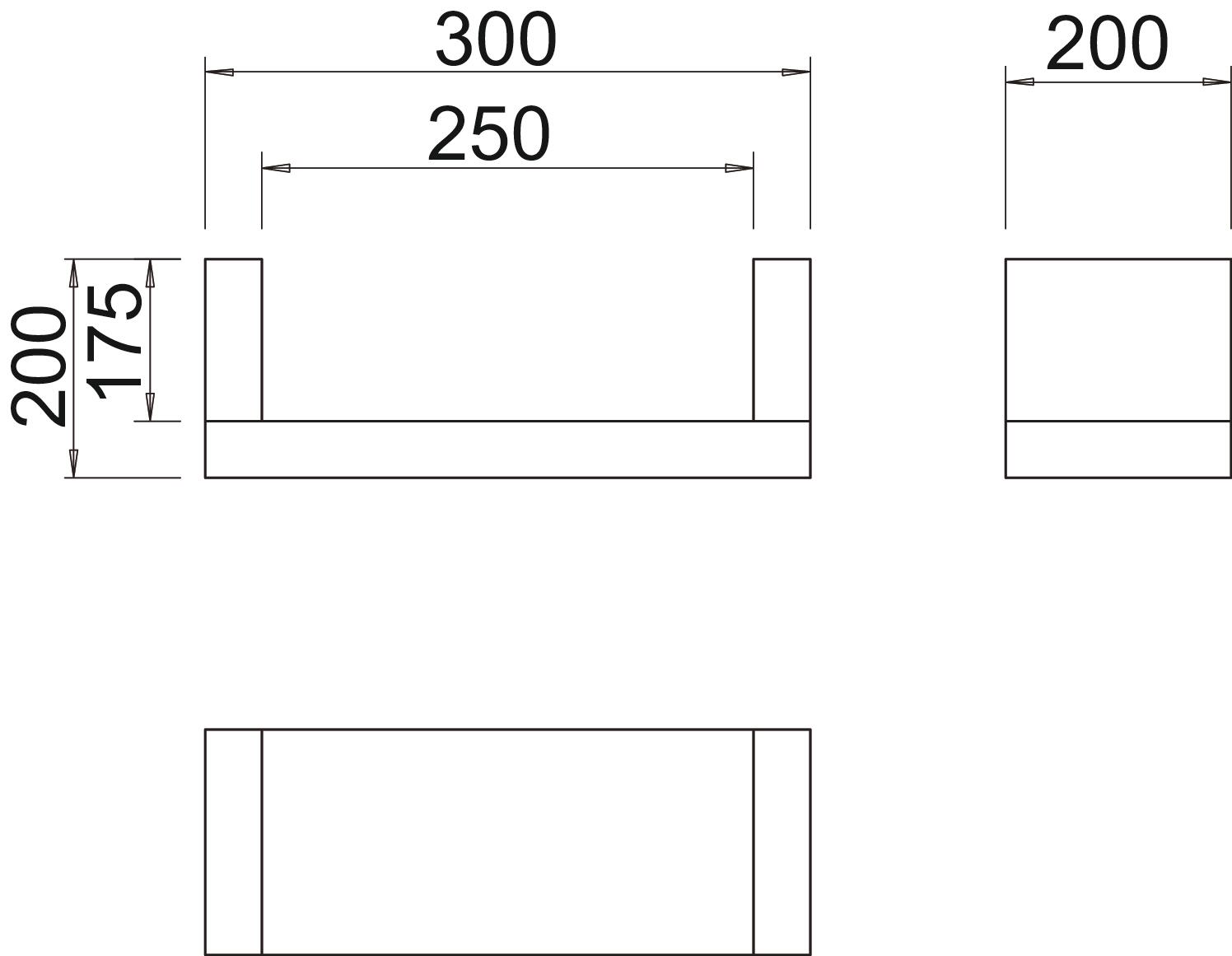

200 mm
200 mm
175 mm
Product description
Product description

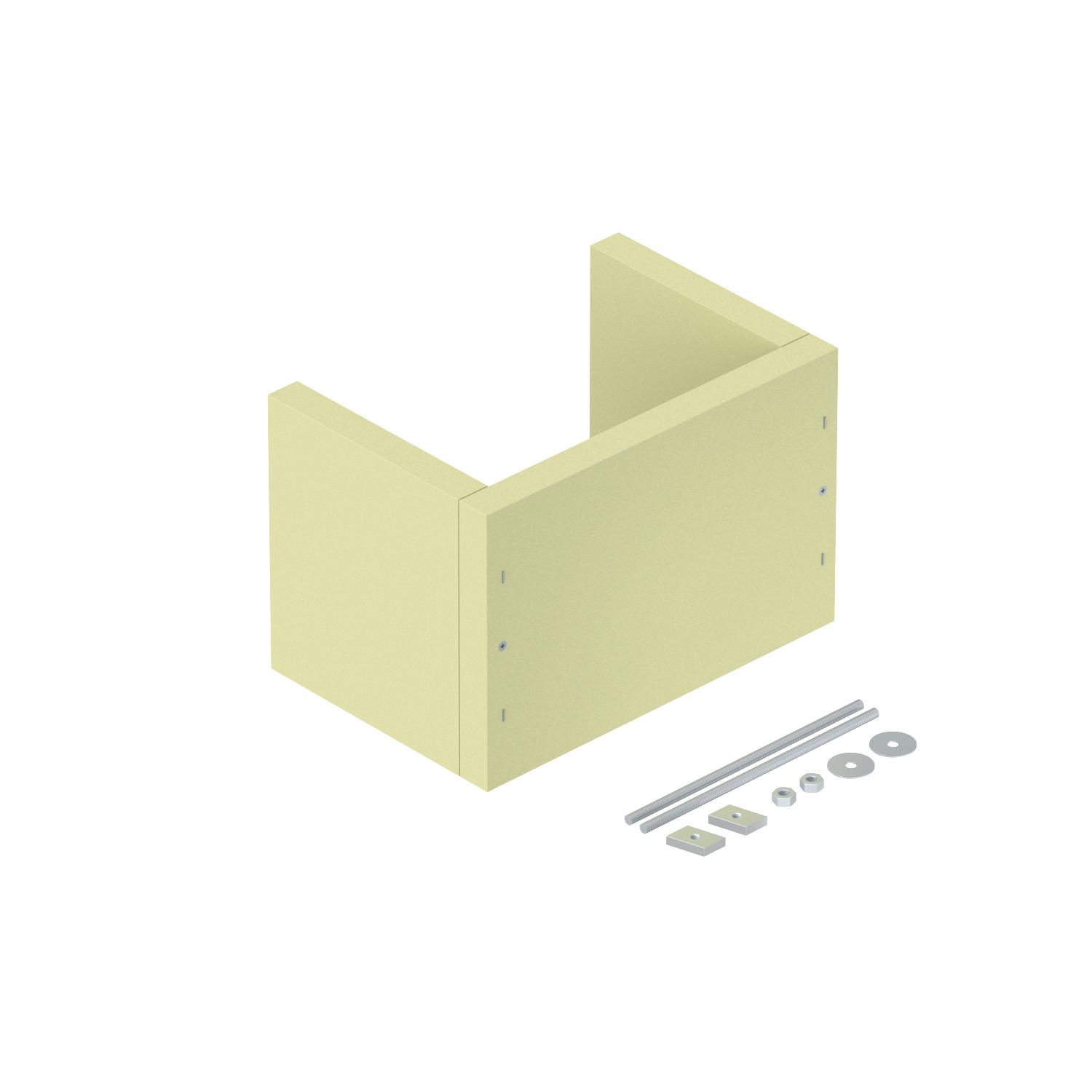

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12. Approved for all cable types and all vertical routing systems, which are mounted directly on solid walls. Maintenance of electrical function classes E30 to E90. Empty housing for individual filling with the PYROSIT® NG fire protection foam and/or PYROPLUG® Block insulation systems, incl. mounting set and labelling panel.
Technical data

Technical data

Colour Cream; RAL 9001
Dimension 300x200x200
Dimension b 250 mm
Dimension B 300 mm
Dimension H 200 mm
Dimension t 200 mm
Dimension t 175 mm
Height 200 mm
Length 200 mm
Material Calcium silicate
Shape Rectangular
Thickness 25 mm
Width 300 mm
All types

All types

Types Dimension B Dimension b Dimension H Dimension t Dimension t Item no. Quantity SSU
ZSE90-25-17 L 300 mm 250 mm 200 mm 200 mm 175 mm 7215766
1 piece
ZSE90-35-17 L 400 mm 350 mm 200 mm 200 mm 175 mm 7215768
1 piece
ZSE90-45-17 L 500 mm 450 mm 200 mm 200 mm 175 mm 7215770
1 piece
ZSE90-55-17 L 600 mm 550 mm 200 mm 200 mm 175 mm 7215772
1 piece
ZSE90-65-17 L 700 mm 650 mm 200 mm 200 mm 175 mm 7215774
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Mixer pipe set Mixer pipe set FBS-M 7203803
1 PU
Professional cartridge pistol Professional cartridge pistol FBS-PH 7203806
1 piece
Identification plate for strain relief Identification plate for strain relief KS-ZSE DE 7215750
1 piece

Mounting accessories

Products Types Item no. Quantity SSU
2-component fire protection foam PYROSIT® NG 2-component fire protection foam PYROSIT® NG FBS-S 7203800
1 piece
PYROPLUG® Block foam block PYROPLUG® Block foam block FBA-B200-14 7202505
4 piece
PYROPLUG® screed filler PYROPLUG® screed filler FBA-SP 7202322
1 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
