Strain relief on three sides, empty housing, internal height 175 mm 600 | 550 | 200 | 200 | 175

Strain relief on three sides, empty housing, internal height 175 mm

Item no. 7215772 | EAN 4012196814688

Item no. / Types

Dimension B

Dimension b

Dimension H	200 mm

Dimension t	200 mm

Dimension t	175 mm

Product description

Product description

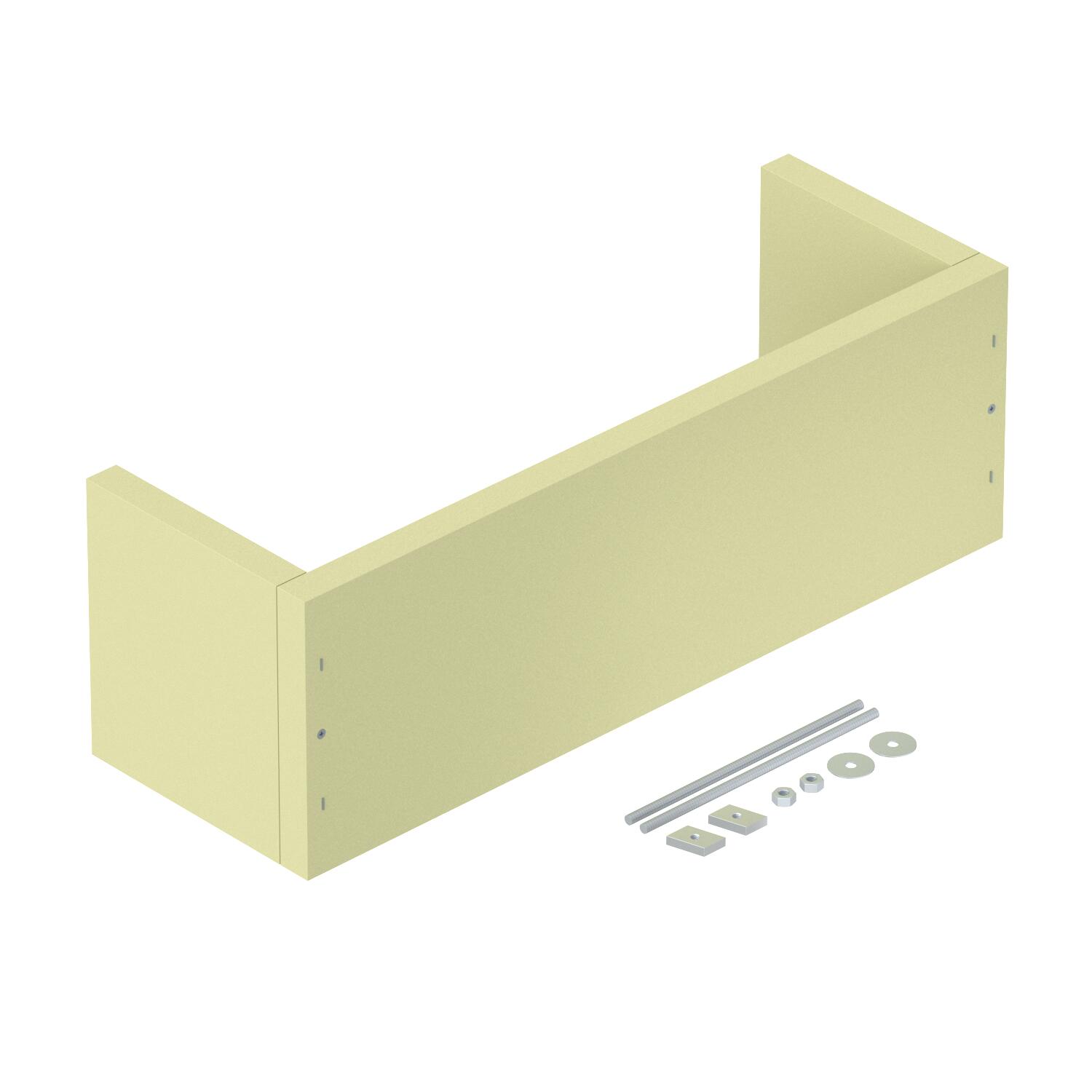

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12. Approved for all cable types and all vertical routing systems, which are mounted directly on solid walls. Maintenance of electrical function classes E30 to E90. Empty housing for individual filling with the PYROSIT® NG fire protection foam and/or PYROPLUG® Block insulation systems, incl. mounting set and labelling panel.

Technical data

Technical data

Colour	Cream; RAL 9001

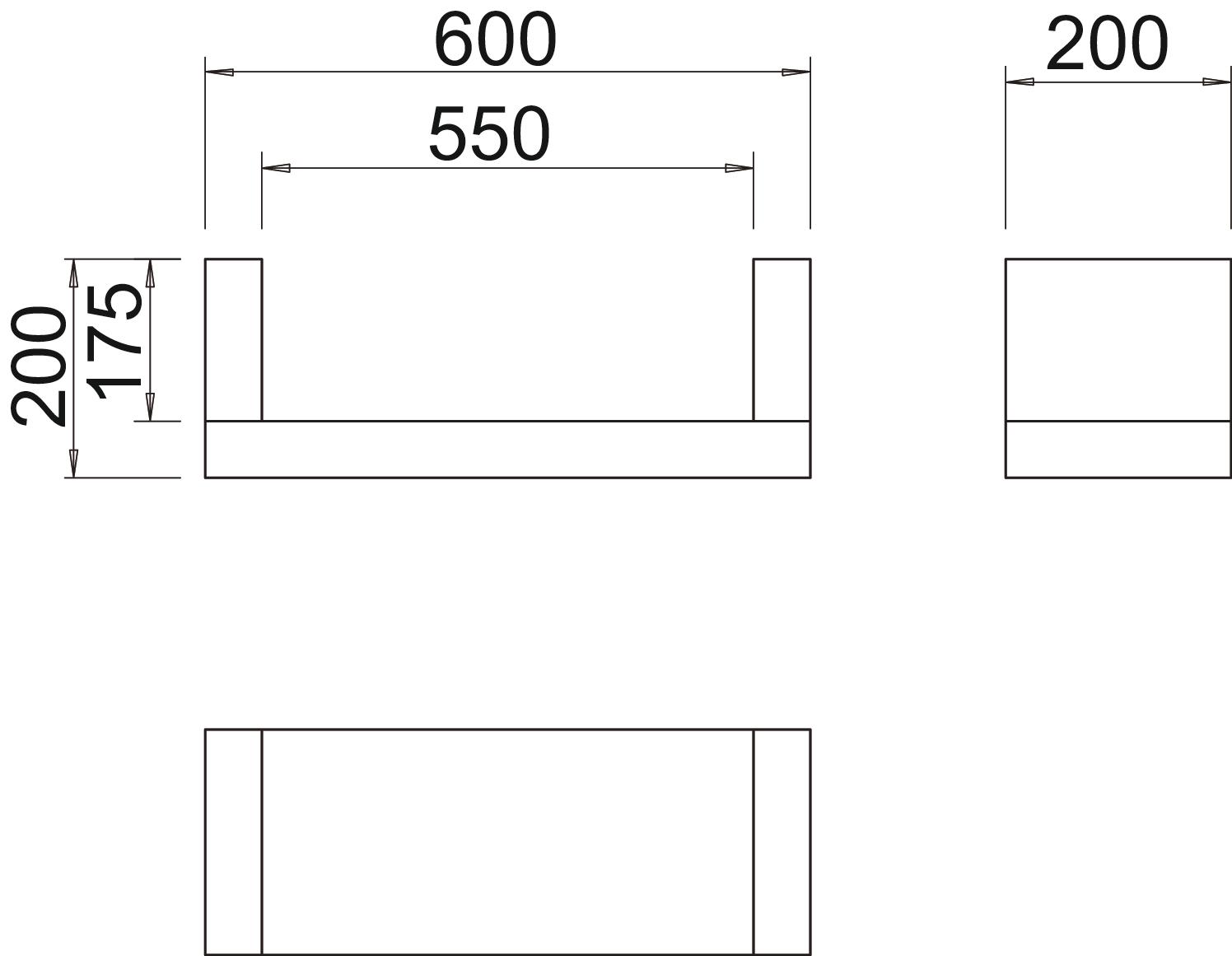

Dimension	600x200x200
Dimension B	600 mm
Dimension b	550 mm
Dimension H	200 mm
Dimension t	175 mm
Dimension t	200 mm

Height	200 mm
Length	200 mm
Material	Calcium silicate
Shape	Rectangular
Thickness	25 mm
Width	600 mm

All types

All types

Types	Dimension B	Dimension b	Dimension H	Dimension t	Dimension t	Item no.	Quantity	SSU
ZSE90-25-17 L	300 mm	250 mm	200 mm	200 mm	175 mm	7215766	piece	1 piece
ZSE90-35-17 L	400 mm	350 mm	200 mm	200 mm	175 mm	7215768	piece	1 piece
ZSE90-45-17 L	500 mm	450 mm	200 mm	200 mm	175 mm	7215770	piece	1 piece
ZSE90-55-17 L	600 mm	550 mm	200 mm	200 mm	175 mm	7215772	piece	1 piece
ZSE90-65-17 L	700 mm	650 mm	200 mm	200 mm	175 mm	7215774	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Mixer pipe set	FBS-M	7203803	PU	1 PU
Professional cartridge pistol	FBS-PH	7203806	piece	1 piece
Identification plate for strain relief	KS-ZSE DE	7215750	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	piece	1 piece
PYROPLUG® Block foam block	FBA-B200-14	7202505	piece	4 piece
PYROPLUG® screed filler	FBA-SP	7202322	piece	1 piece
