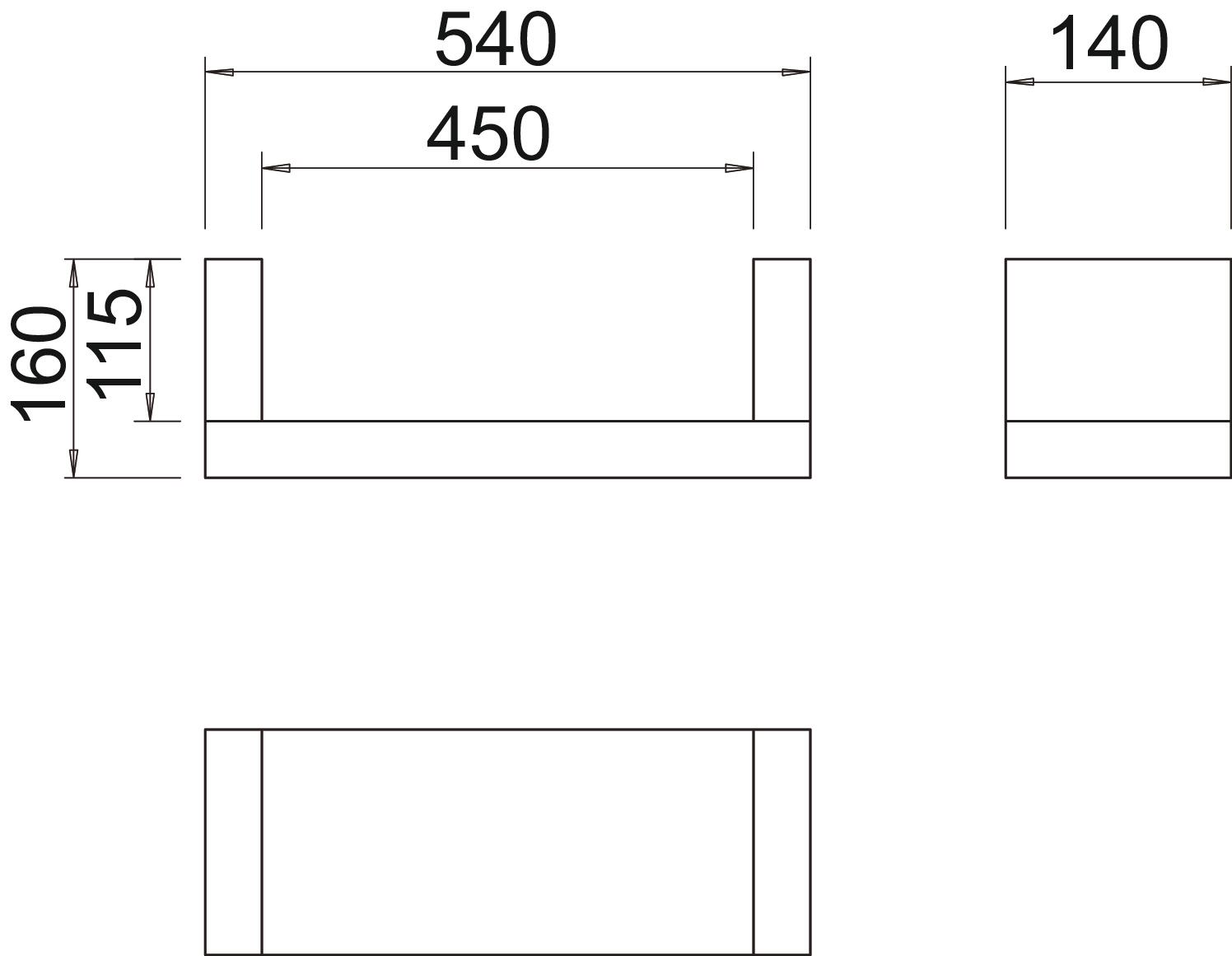

Strain relief on three sides, with mineral wool, internal height 115 mm 540 | 450 | 140 | 160 | 115

Strain relief on three sides, with mineral wool, internal height 115 mm

Item no. 7215709 | EAN 4012195958871

Item no. / Types

Dimension B

Dimension b

Dimension H	140 mm

Dimension t	160 mm

Dimension t	115 mm

Product description

Product description

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12, approved for all cable types and all vertical routing systems. Maintenance of electrical function classes E30 to E90. Housing including mineral fibre panels, fastening material, ASX fire protection coating in cartridge and identification plate.

Technical data

Technical data

Accessories required	no
Dimension	540x160x140
Dimension B	540 mm
Dimension b	450 mm
Dimension H	140 mm
Dimension t	115 mm
Dimension t	160 mm

Fire protection version	Soft insulation
Height	160 mm
Length	140 mm
Shape	Rectangular
Thickness	45 mm
Width	540 mm

All types

All types

Types	Dimension B	Dimension b	Dimension H	Dimension t	Dimension t	Item no.	Quantity	SSU
ZSE90-25-11	340 mm	250 mm	140 mm	160 mm	115 mm	7215702	piece	1 piece
ZSE90-35-11	440 mm	350 mm	140 mm	160 mm	115 mm	7215706	piece	1 piece
ZSE90-45-11	540 mm	450 mm	140 mm	160 mm	115 mm	7215709	piece	1 piece
