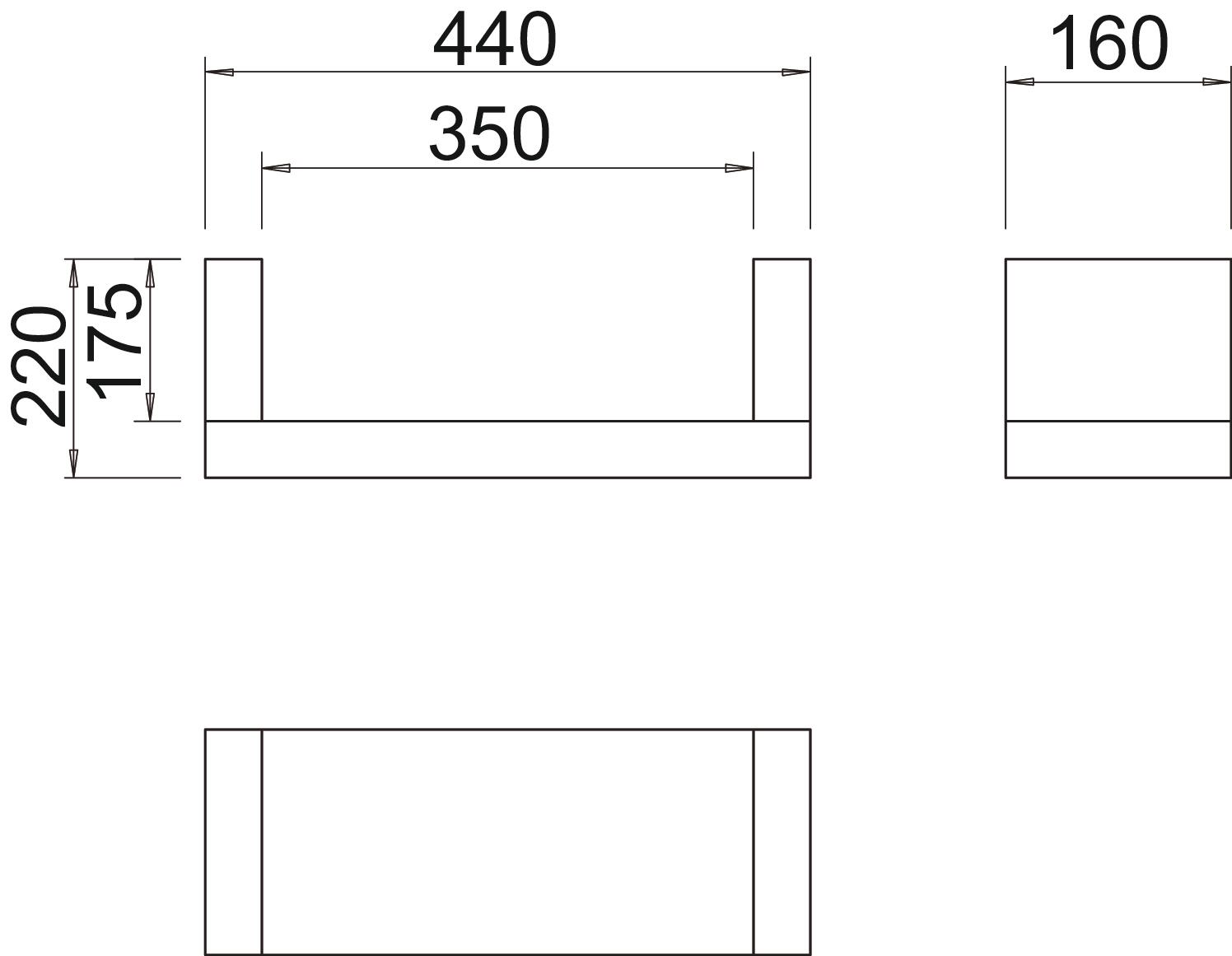

Strain relief on three sides, with mineral wool, internal height 175 mm 440 | 350 | 160 | 220 | 175

Strain relief on three sides, with mineral wool, internal height 175 mm

Item no. 7215716 | EAN 4012195958918

Item no. / Types

Dimension B

Dimension b

Dimension H	160 mm

Dimension t	220 mm

Dimension t	175 mm

Product description

Product description

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12, approved for all cable types and all vertical routing systems. Maintenance of electrical function classes E30 to E90. Housing including mineral fibre panels, fastening material, ASX fire protection coating in cartridge and identification plate.

Technical data

Technical data

Accessories required	no
Dimension	440x220x160
Dimension b	350 mm
Dimension B	440 mm
Dimension H	160 mm
Dimension t	175 mm
Dimension t	220 mm

Fire protection version	Soft insulation
Height	220 mm
Length	160 mm
Shape	Rectangular
Thickness	45 mm
Width	440 mm

All types

All types

Types	Dimension B	Dimension b	Dimension H	Dimension t	Dimension t	Item no.	Quantity	SSU
ZSE90-25-17	340 mm	250 mm	160 mm	220 mm	175 mm	7215713	piece	1 piece
ZSE90-35-17	440 mm	350 mm	160 mm	220 mm	175 mm	7215716	piece	1 piece
ZSE90-45-17	540 mm	450 mm	160 mm	220 mm	175 mm	7215719	piece	1 piece
ZSE90-55-17	640 mm	550 mm	160 mm	220 mm	175 mm	7215726	piece	1 piece
ZSE90-65-17	740 mm	650 mm	160 mm	220 mm	175 mm	7215730	piece	1 piece
