Support A2 45

morepic-1

morepic-2

Support A2

Item no. 6221017 | EAN 4012196164479

Item no. / Types	6221017 / LAL 70 A2

Height	45 mm

Product description

Product description

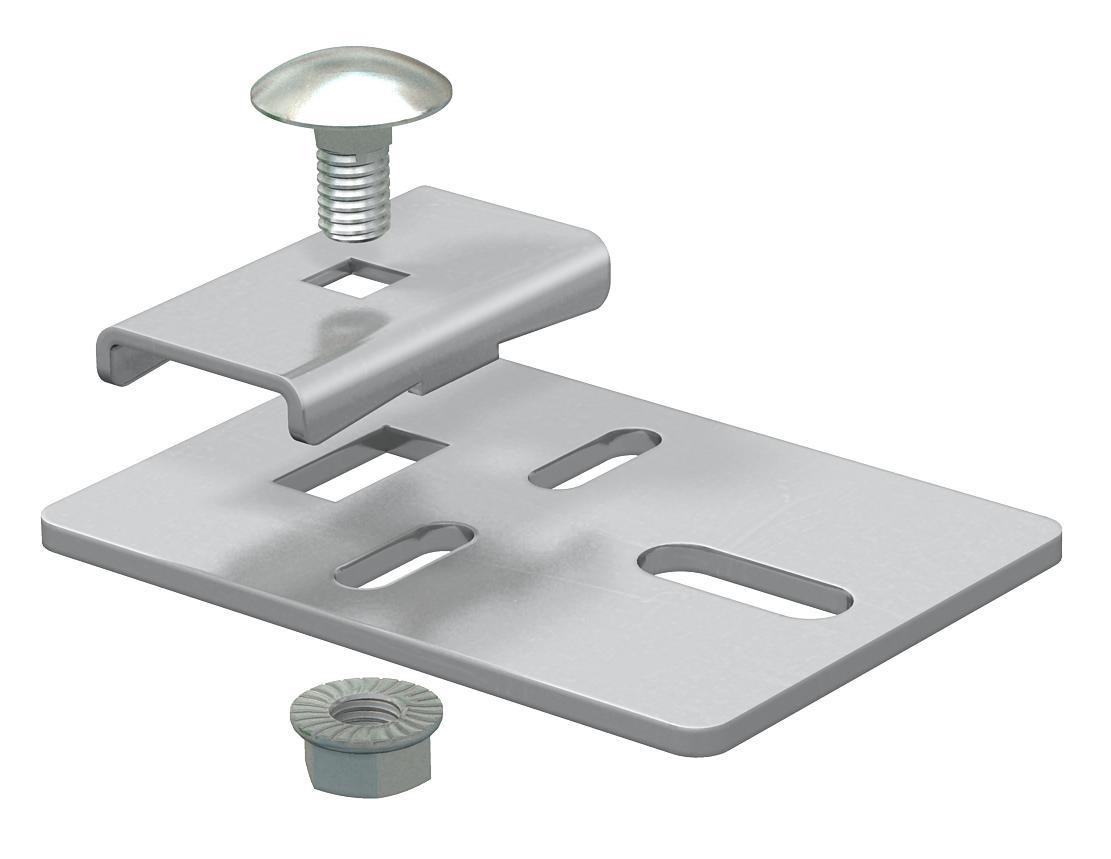

Support for fastening rising or falling cable ladders.

Technical data

Technical data

Dimension	70x50
Material	Stainless steel

Surface	Bright, treated

Dimensions

Height	45 mm

All types

All types

Types	Height	Item no.	Quantity	SSU
LAL 70 A2	45 mm	6221017	piece	20 piece

Downloads

Data sheet LAL 70 A2 / 6221017 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAL 70 A2 / 6221017 , 0.15MB , pdf

REACH Declaration of conformity LAL 70 A2 / 6221017 , 0.27MB , pdf

Download

RoHS Declaration of conformity LAL 70 A2 / 6221017 , 0.28MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

Product graphic LAL 70 A2 / 6221017, 42.79 kB, jpg

Scale drawing LAL 70 A2 / 6221017, 57.31 kB, jpg

LAL 70 A2 / 6221017

6221017_KSTP1.stp, 218.30 kB
