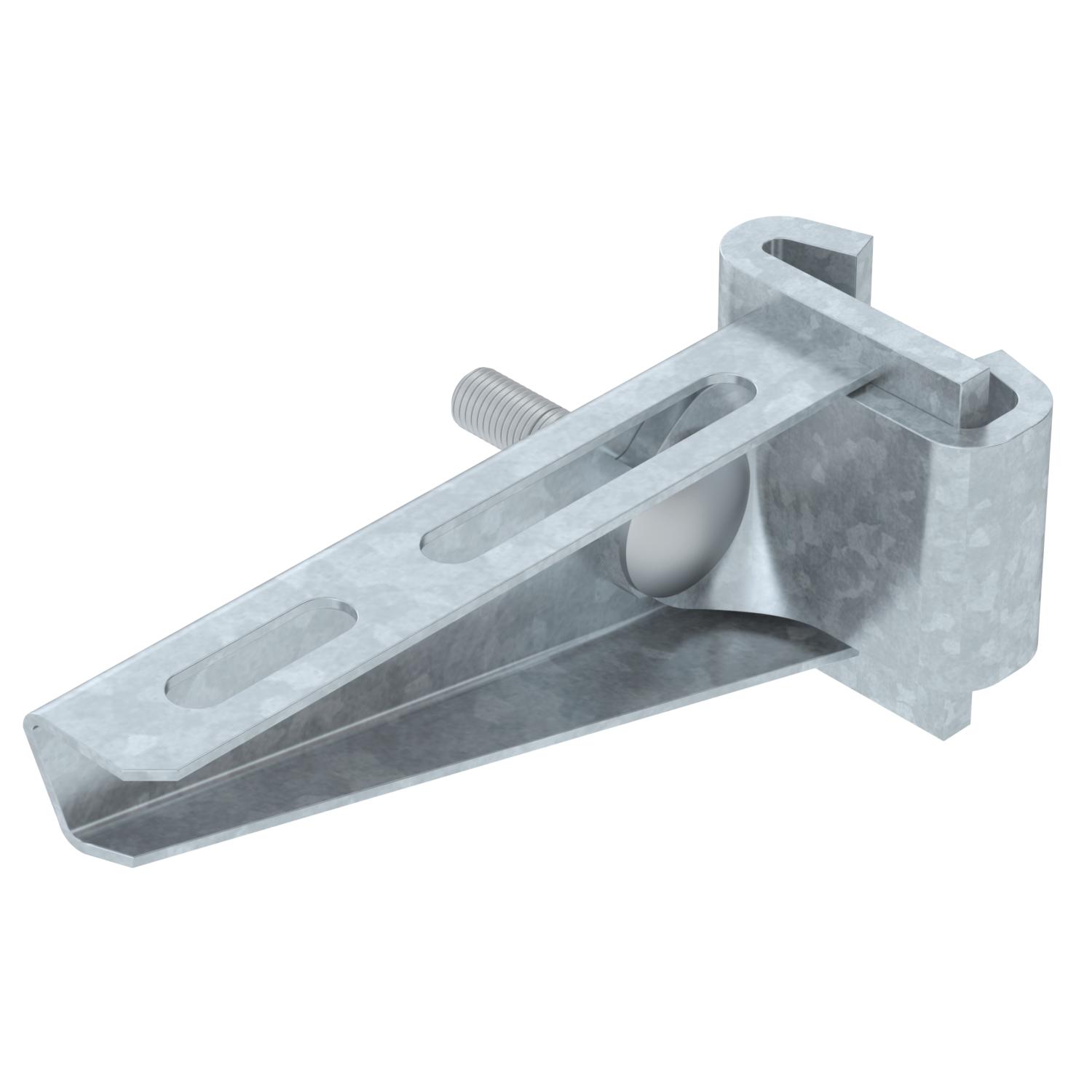

Support bracket AS 15

Item no. 6421326 | EAN 4012196207732

41 mm
1.5 kN
Product description
Product description
Light-duty support bracket for infinitely adjustable fastening on IS 8 support.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • I support

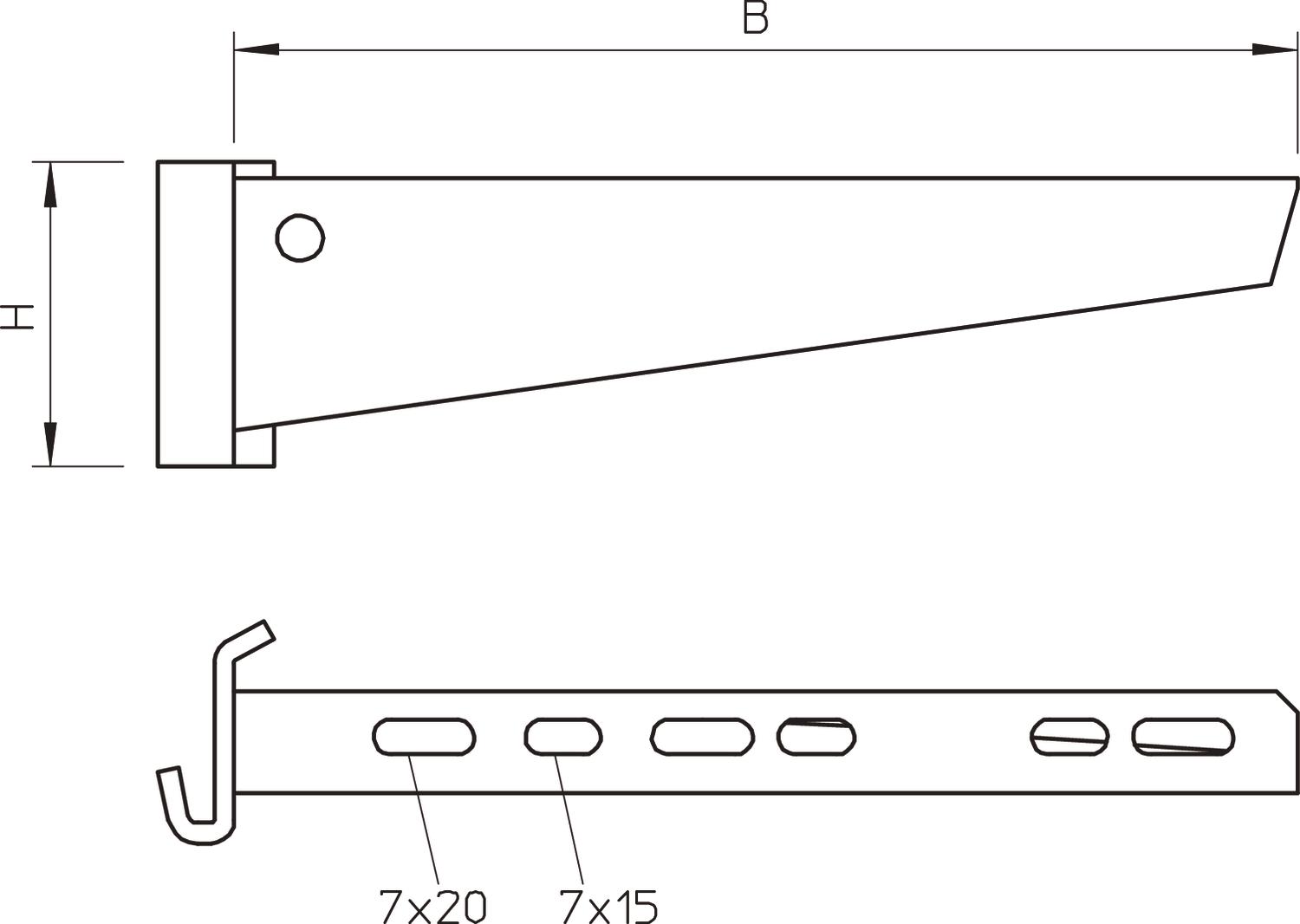

Technical data

Technical data

Colour zinc
Dimension B110mm
Dimension A 41 mm
Dimension B 110 mm
Dimension H 50 mm
Dimension L 110 mm
EPD article yes
F in kN 1,5 kN
Height 50 mm
Length 41 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Support bracket
Width 110 mm

Technical data

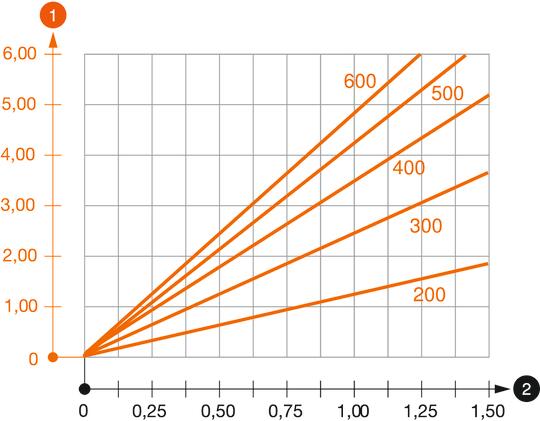

Load diagram, bracket type AS 15

Load diagram, bracket type AS 15
  • Bending of the bracket tip at permitted bracket load Bending of the bracket tip at permitted bracket load
  • Permitted bracket load in kN without man load Permitted bracket load in kN without man load
  • Support width in m Support width in m
  • Load curve with bracket lengths in mm Load curve with bracket lengths in mm
All types

All types

Types Length Width F in kN Item no. Quantity SSU
AS 15 11 FT 41 mm 110 mm 1.5 kN 6421326
30 piece
AS 15 16 FT 41 mm 160 mm 1.5 kN 6421334
30 piece
AS 15 21 FT 41 mm 210 mm 1.5 kN 6421350
25 piece
AS 15 31 FT 41 mm 310 mm 1.5 kN 6421385
25 piece
AS 15 41 FT 41 mm 410 mm 1.5 kN 6421423
30 piece
AS 15 51 FT 41 mm 510 mm 1.5 kN 6421466
10 piece
AS 15 61 FT 41 mm 610 mm 1.5 kN 6421490
10 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
