- Product description
-

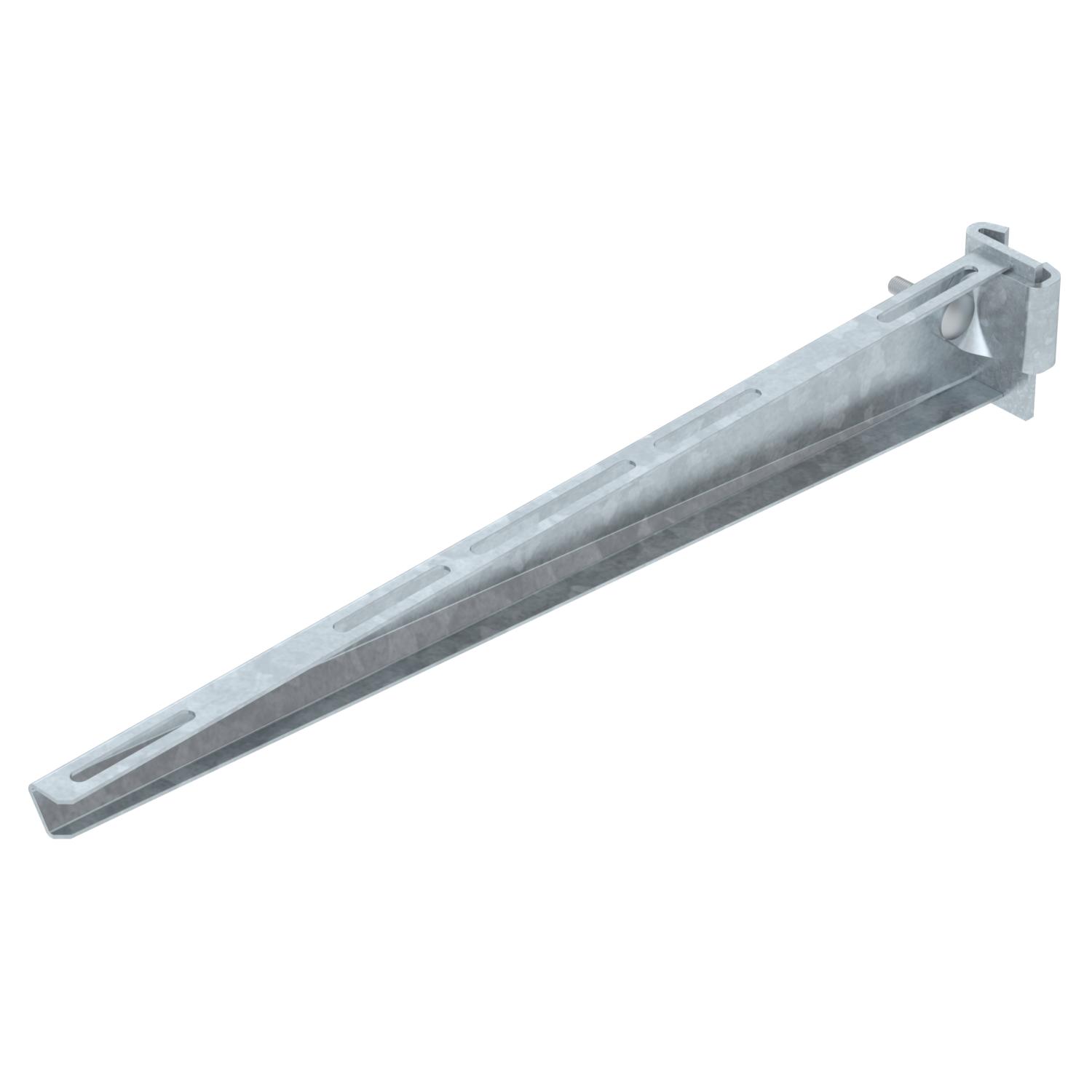

Product descriptionLight-duty support bracket for infinitely adjustable fastening on IS 8 support.
- Technical data
-
Technical data

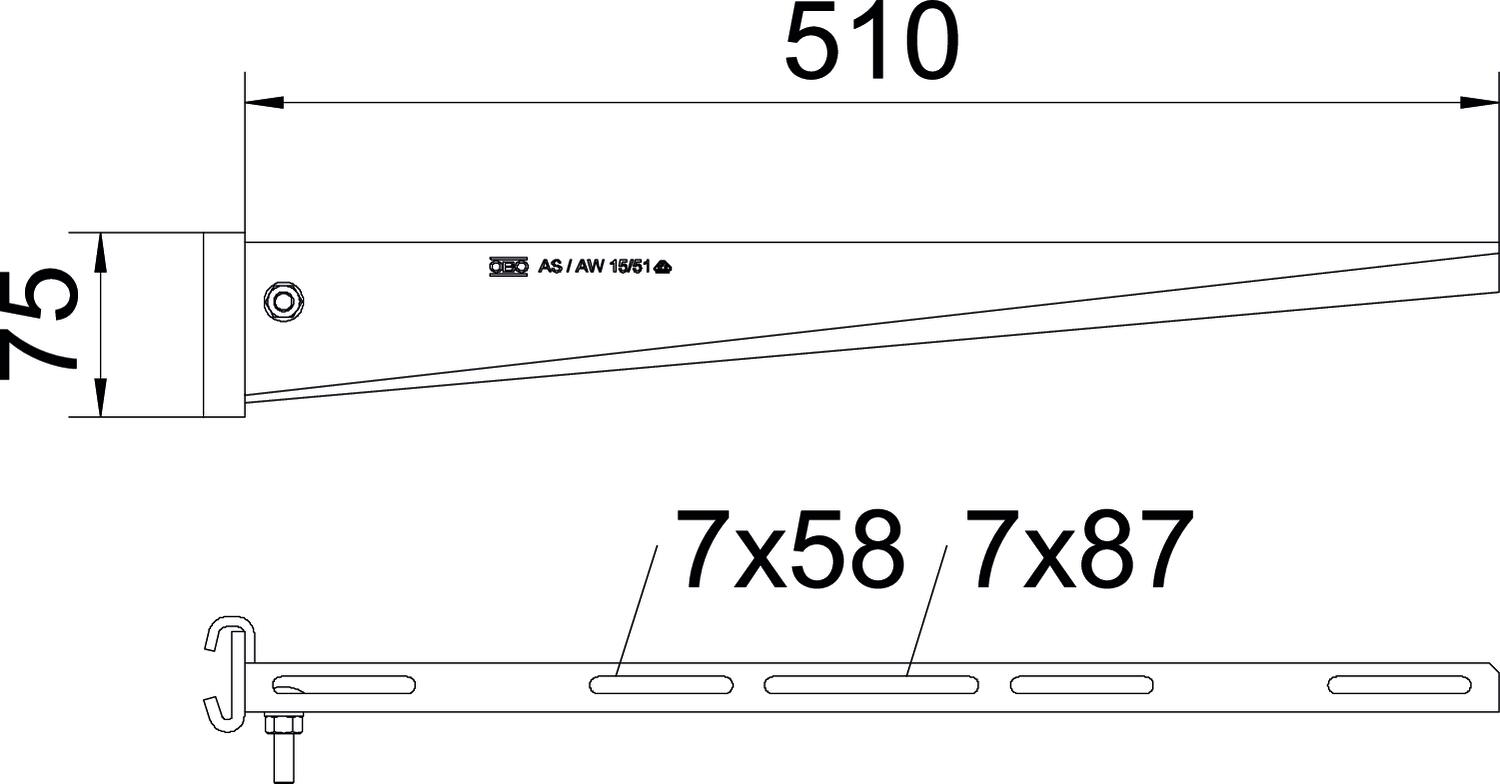

Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 2,029 kg CO₂e / 1 Piece Dimension B510mm Dimension A 41 mm Dimension B 510 mm Dimension H 75 mm Dimension L 510 mm EPD article yes F in kN 1,5 kN Height 75 mm Length 41 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Support bracket Width 510 mm Technical data
Load diagram, bracket type AS 15
- Bending of the bracket tip at permitted bracket load
- Permitted bracket load in kN without man load
- Support width in m
- Load curve with bracket lengths in mm
- All types
-
All types
