Support bracket AS 55

Item no. 6419304 | EAN 4012195873150

41 mm
5.5 kN
Product description
Product description

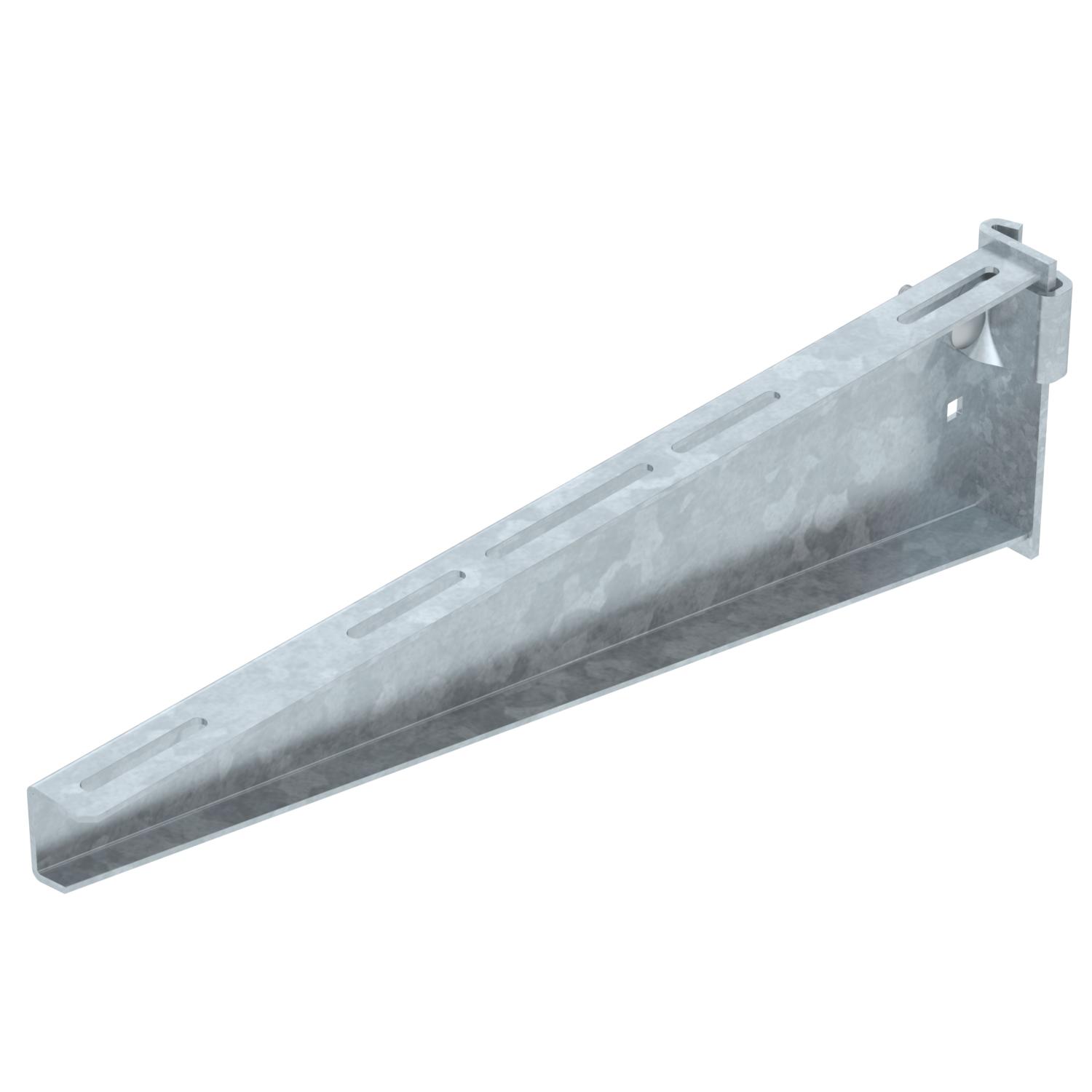

Heavy-duty support bracket for infinitely adjustable fastening on IS 8 support.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • I support
Technical data

Technical data

Colour zinc
Dimension B510mm
Dimension A 41 mm
Dimension B 510 mm
Dimension H 145 mm
Dimension L 510 mm
F in kN 5,5 kN
Height 145 mm
Length 41 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Support bracket
Width 510 mm

Technical data

Load diagram, bracket type AS 55

Load diagram, bracket type AS 55
  • Bending of the bracket tip at permitted bracket load Bending of the bracket tip at permitted bracket load
  • Permitted bracket load in kN without man load Permitted bracket load in kN without man load
  • Load curve with bracket lengths in mm Load curve with bracket lengths in mm
All types

All types

Types Length Width F in kN Item no. Quantity SSU
AS 55 21 FT 41 mm 210 mm 5.5 kN 6419286
1 piece
AS 55 31 FT 41 mm 310 mm 5.5 kN 6419292
1 piece
AS 55 41 FT 41 mm 410 mm 5.5 kN 6419298
1 piece
AS 55 51 FT 41 mm 510 mm 5.5 kN 6419304
1 piece
AS 55 56 FT 41 mm 560 mm 5.5 kN 6419310
1 piece
AS 55 61 FT 41 mm 610 mm 5.5 kN 6419316
1 piece
AS 55 71 FT 41 mm 710 mm 5.5 kN 6419322
1 piece
AS 55 81 FT 41 mm 810 mm 5.5 kN 6419328
1 piece
AS 55 91 FT 41 mm 910 mm 5.5 kN 6419334
1 piece
AS 55 101 FT 41 mm 1010 mm 5.5 kN 6419340
1 piece
