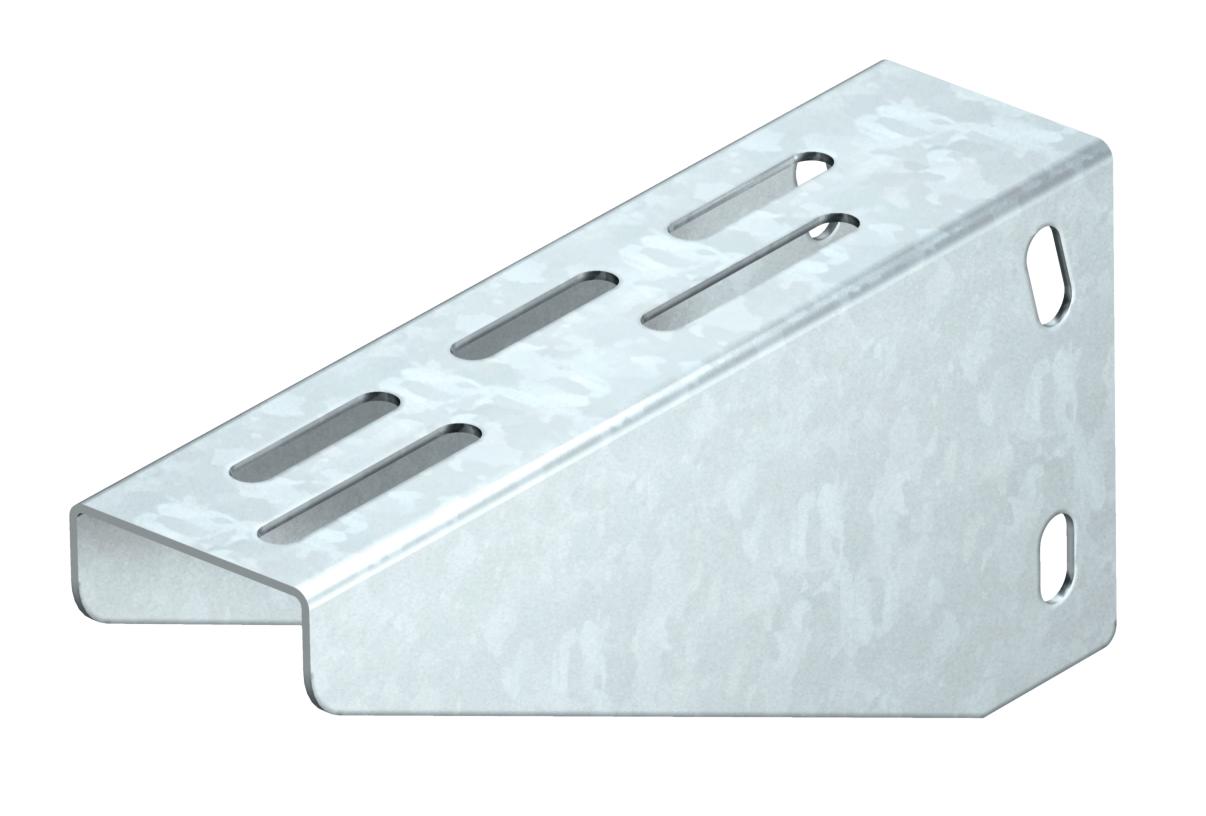

Support bracket ASU 15

Item no. 6344488 | EAN 4012196640577

47 mm
Product description

Product description

Support bracket for fastening on the U support, type USL 5.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension B185mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Strip galvanized
Version for Support bracket

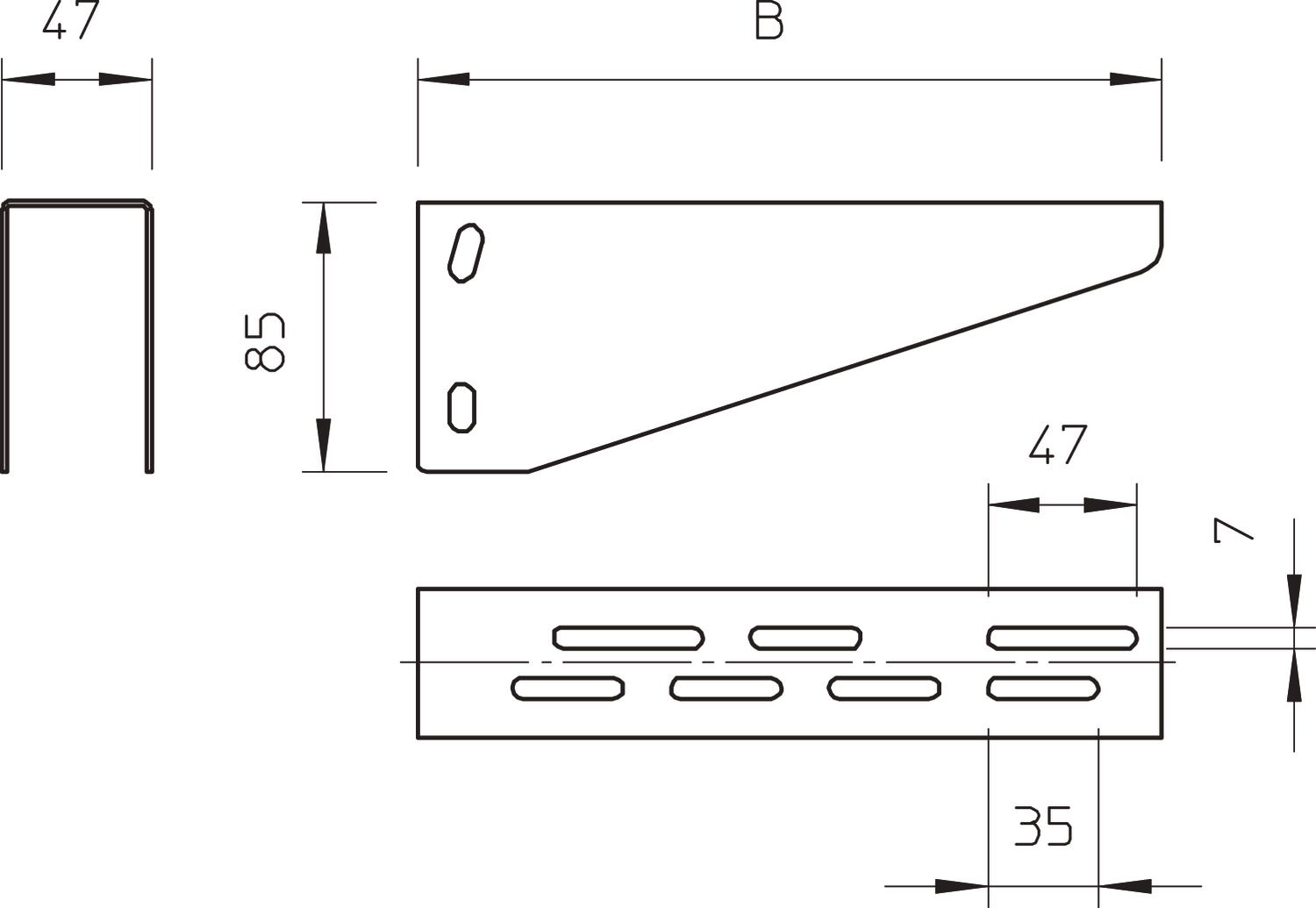

Dimensions

Dimension A 47 mm
Dimension B 185 mm
Dimension H 84,4 mm
Height 84,4 mm
Length 47 mm
Width 185 mm
All types

All types

Types Length Width Item no. Quantity SSU
ASU 15 15 FS 47 mm 185 mm 6344488
30 piece
ASU 15 20 FS 47 mm 235 mm 6344496
25 piece
ASU 15 30 FS 47 mm 345 mm 6344518
20 piece
ASU 15 40 FS 47 mm 445 mm 6344526
10 piece
ASU 15 50 FS 47 mm 535 mm 6344534
10 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

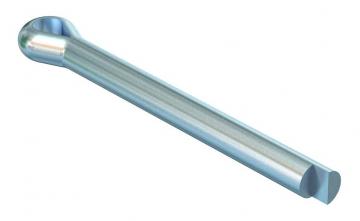

Fastening splint G 8X71 G Fastening splint G 8X71 G G 8X71 G 6344569
25 piece
Downloads

Download
Download
Download
Download

Declaration of conformity ASU 15 15 FS / 6344488 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
