Product description

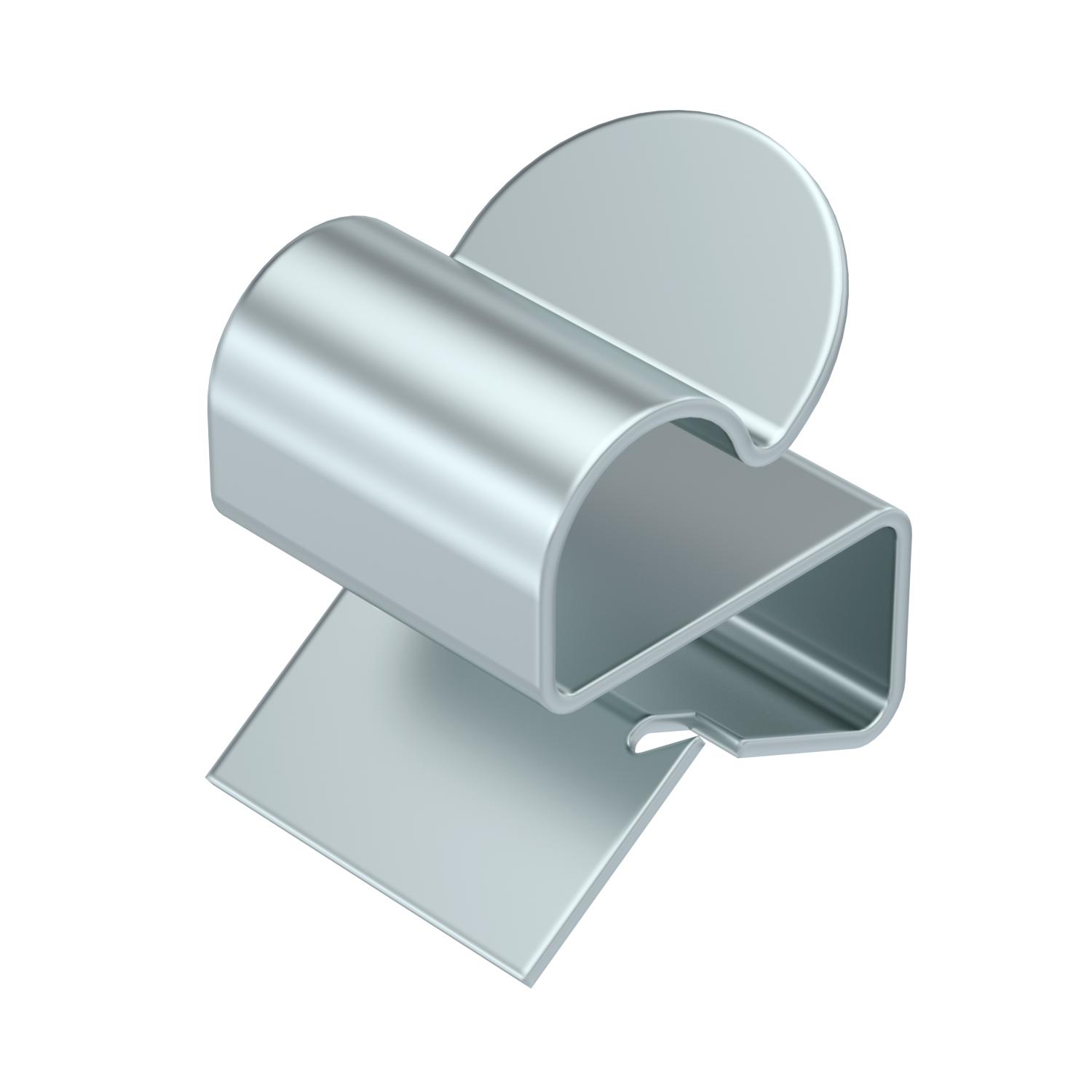

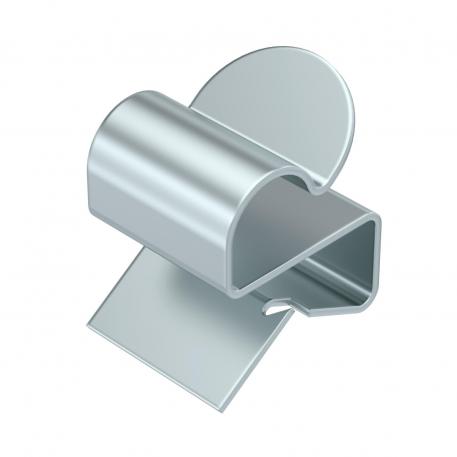

Support clamp for mounting cables. Open cable seat at side. Fastening through knocking onto steel girders.
-
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 4-7,5mm Fastening type Clamp Flange thickness F max. 7,5 mm Flange thickness F min. 4 mm Hinge, adjustable no Hinged no Material Steel Pipe/cable diameter, max. 9 mm Pipe/cable diameter, min. 8 mm Surface Zinc slat Dimensions

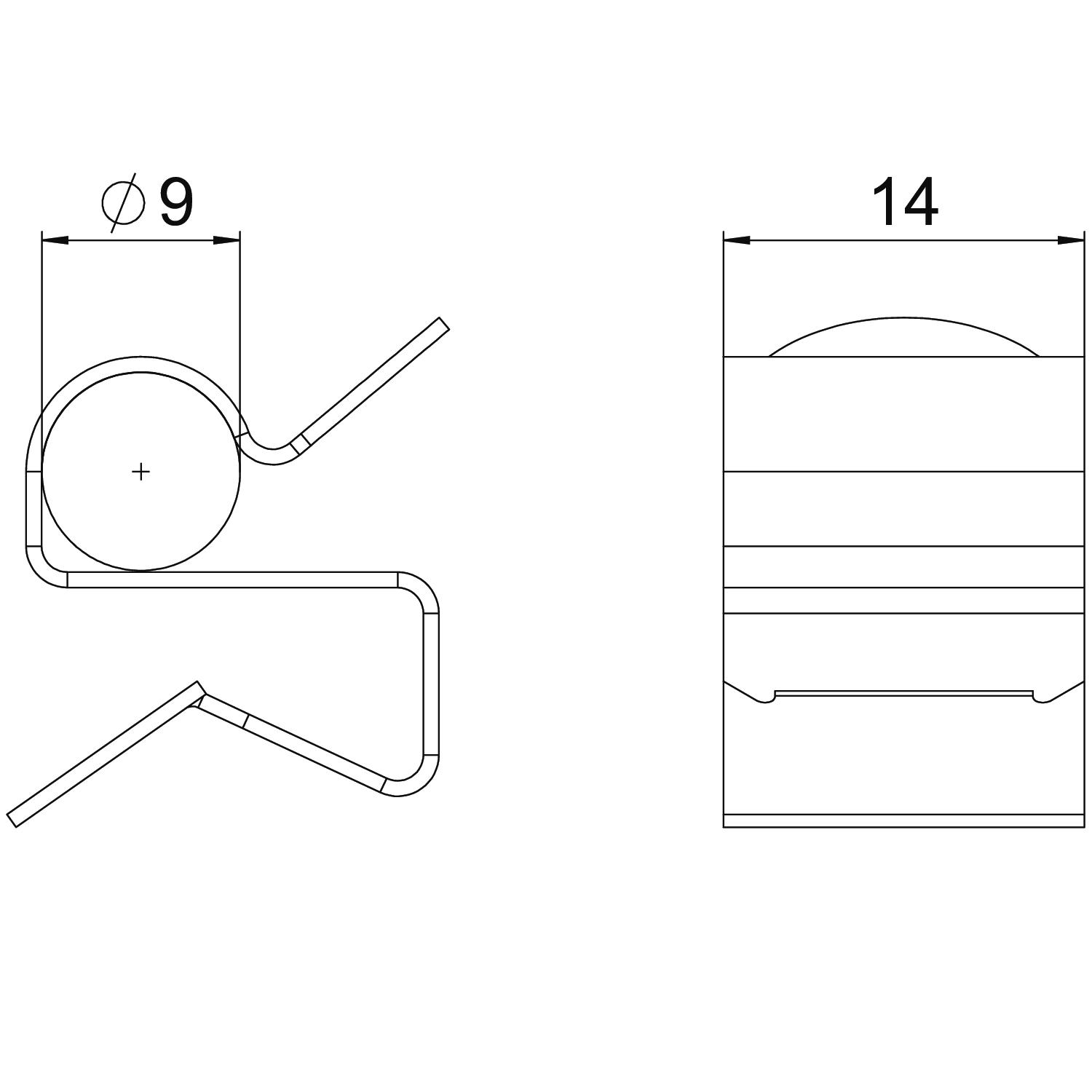

Dimension D 9 mm Height 20 mm Length 17 mm Maß W 14 mm Width 14 mm - All types
-
All types
- Downloads
-
Data sheet SCC 4-7,5 D9 / 1488485 , 0.19MB , pdf
English
