- Product description
-
Product description

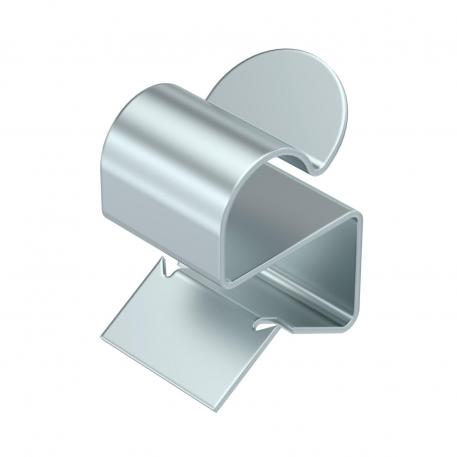

Support clamp for mounting cables. Open cable seat at side. Fastening through knocking onto steel girders.
-
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 7,5-12mm Fastening type Clamp Flange thickness F max. 12 mm Flange thickness F min. 7,5 mm Hinge, adjustable no Hinged no Material Steel Pipe/cable diameter, max. 11 mm Pipe/cable diameter, min. 10 mm Surface Zinc slat Dimensions

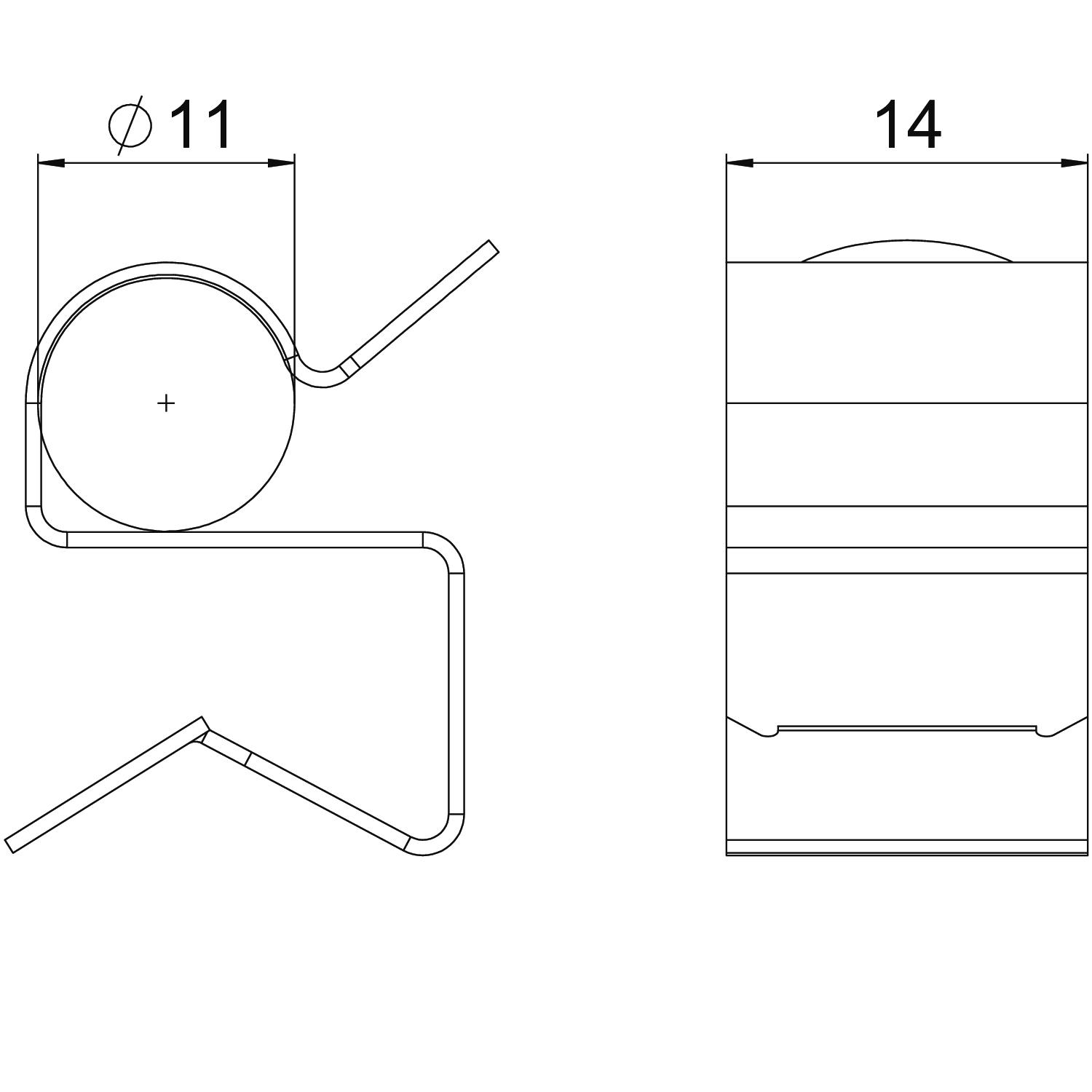

Dimension D 11 mm Height 24 mm Length 19 mm Maß W 14 mm Width 14 mm - All types
-
All types
- Downloads
-
Data sheet SCC 7,5-12 D11 / 1488515 , 0.16MB , pdf
