- Product description
-
Product description

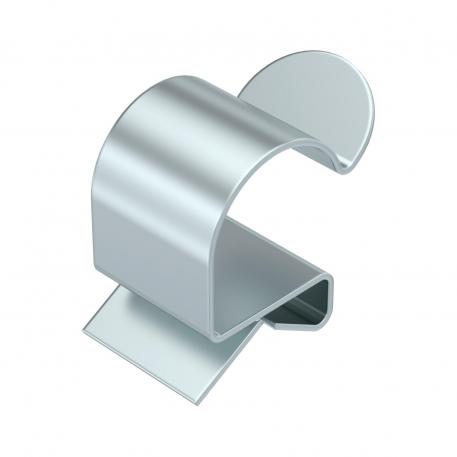

Support clamp for mounting cables. Open cable seat at side. Fastening through knocking onto steel girders.
-
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 1-4mm Fastening type Clamp Flange thickness F max. 4 mm Flange thickness F min. 1 mm Hinge, adjustable no Hinged no Material Steel Pipe/cable diameter, max. 18 mm Pipe/cable diameter, min. 15 mm Surface Zinc slat Dimensions

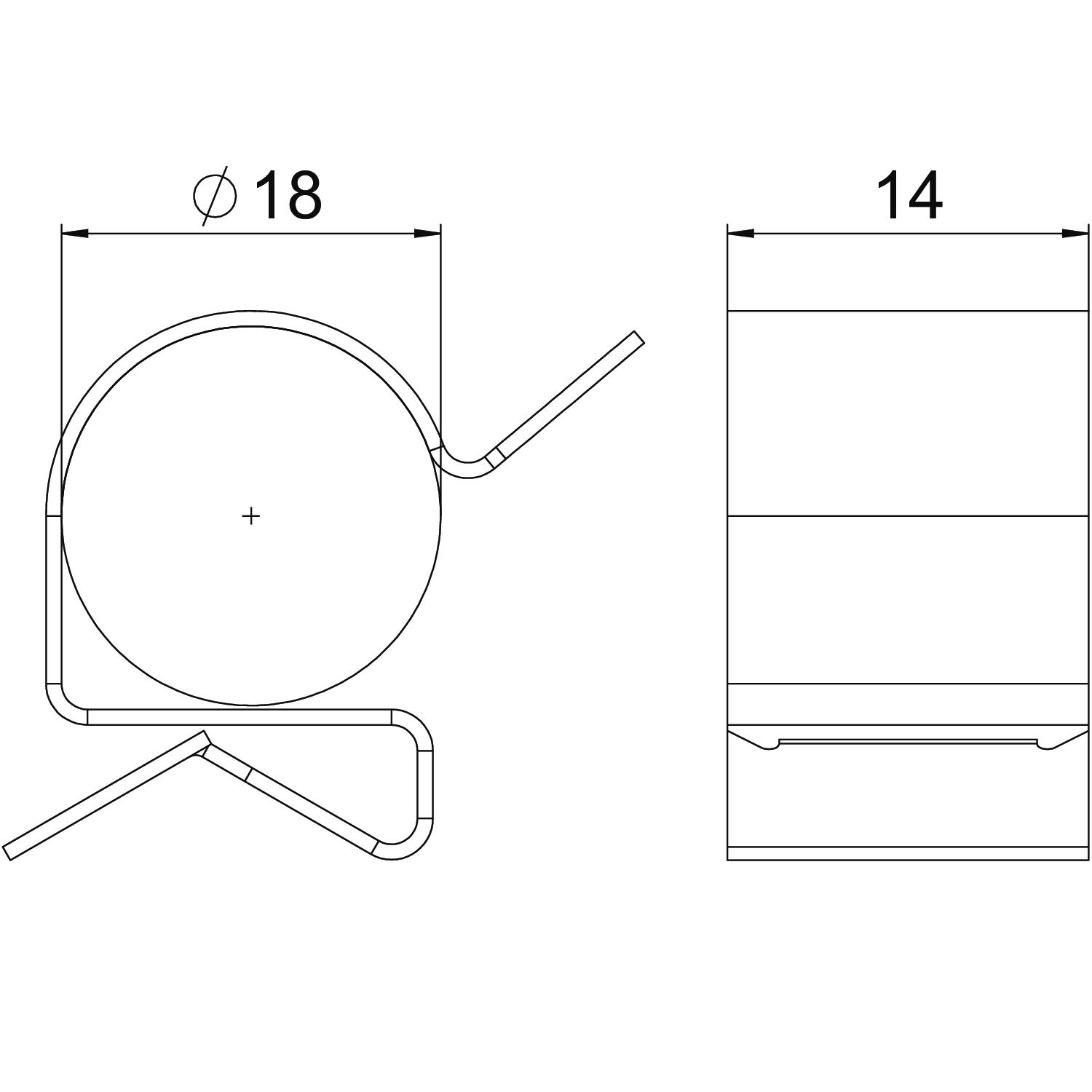

Dimension D 18 mm Height 22 mm Length 25 mm Maß W 14 mm Width 14 mm - All types
-
All types
- Downloads
-
Data sheet SCC 1-4 D18 / 1488465 , 0.17MB , pdf
English
