- Product description
-
Product description

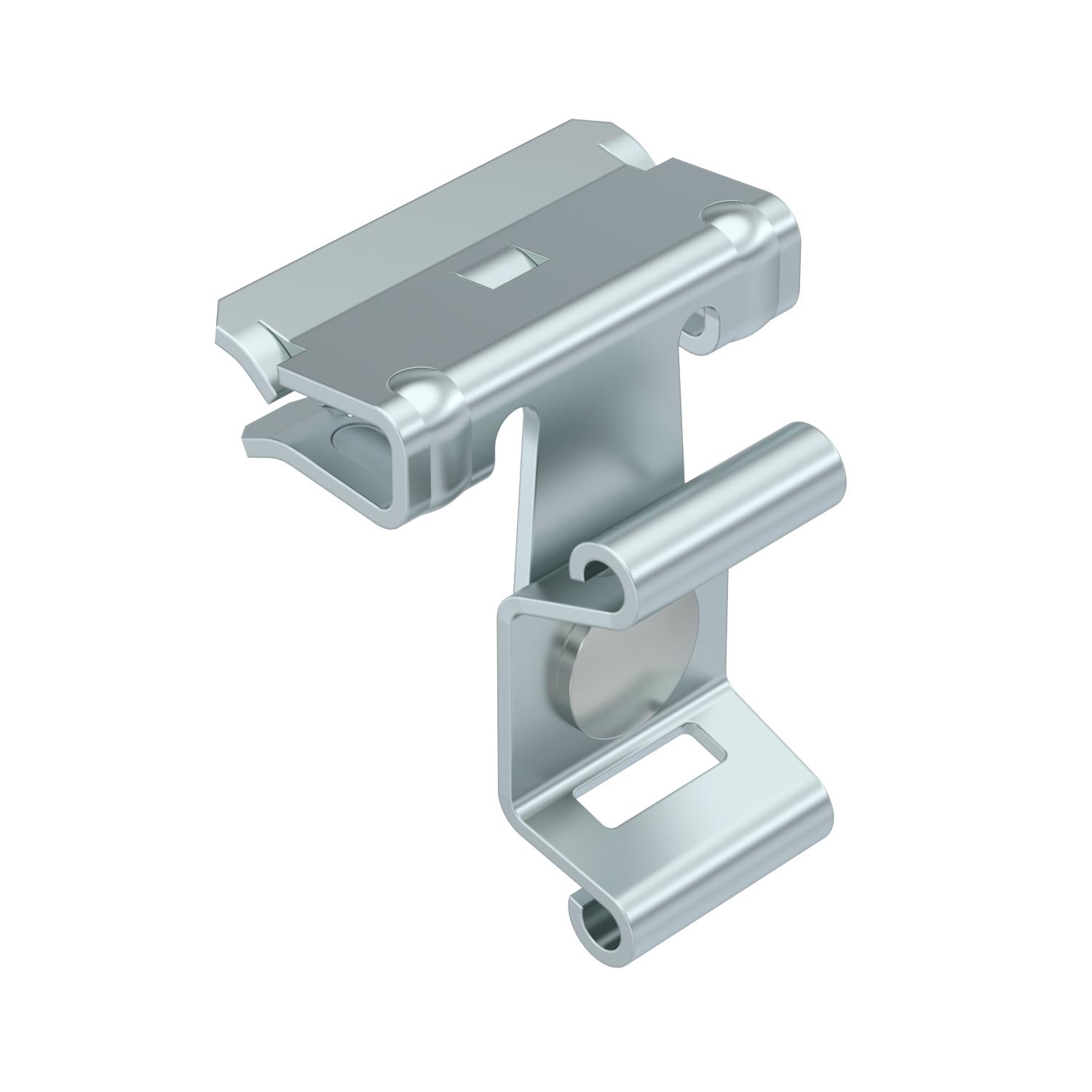

Support clamp for cable ties for mounting cables and pipes. Fastening through knocking onto steel girders. Cable ties not contained in scope of supply.
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 1,5-4mm Fastening type Clamp Flange thickness F max. 4 mm Flange thickness F min. 1,5 mm Hinge, adjustable no Hinged no Material Steel Surface Zinc slat Dimensions

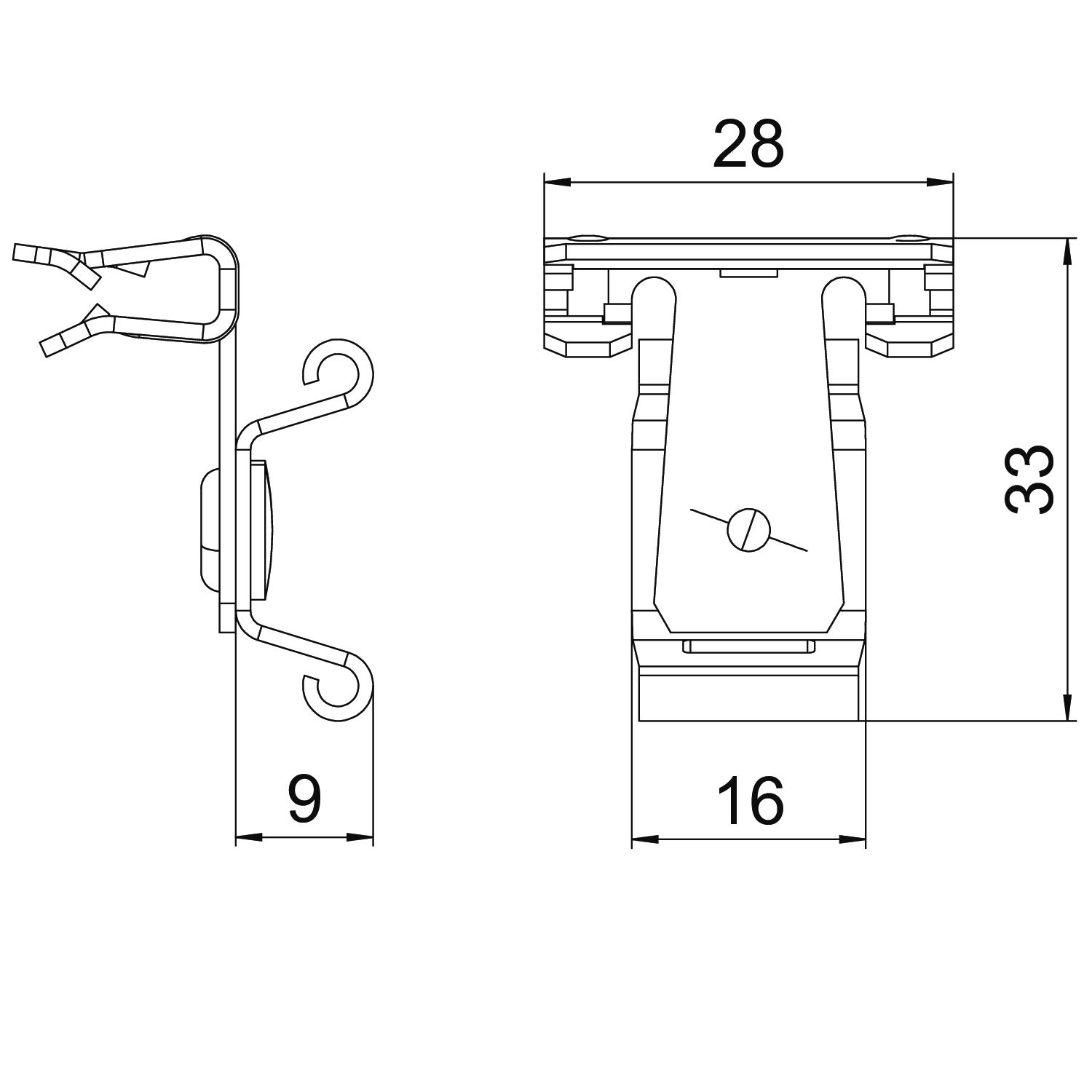

Dimension L 33 mm Height 24 mm Length 33 mm Maß W 28 mm Width 28 mm - All types
-
All types
- Downloads
-
Data sheet SCCT 1,5-4 / 1488301 , 0.21MB , pdf
English
