- Product description
-
Product description

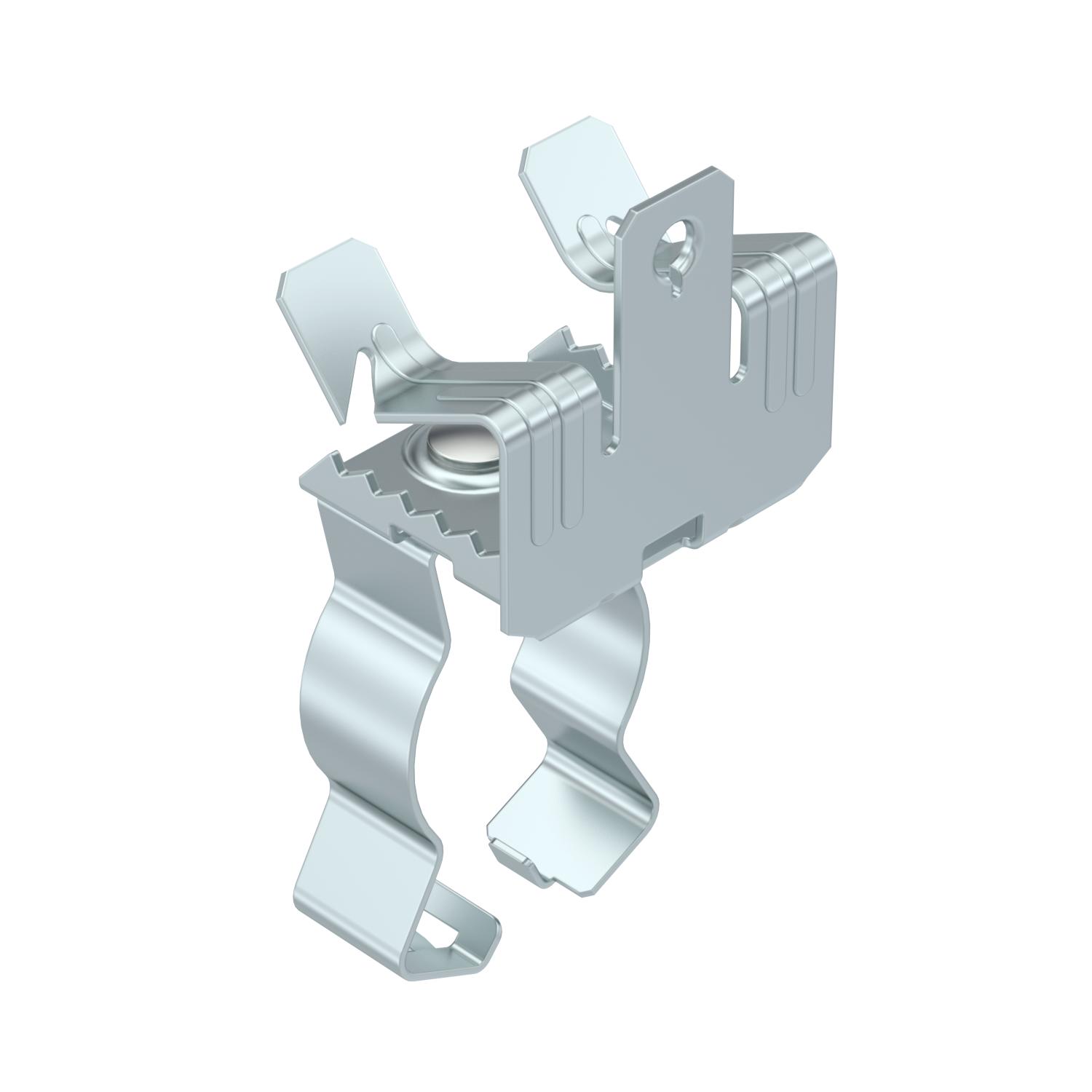

Support clamp for mounting pipes. Closed pipe seat at bottom. Fastening through knocking onto steel girders.
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 14-20mm Fastening type Clamp Flange thickness F max. 20 mm Flange thickness F min. 14 mm Hinge, adjustable no Hinged no Material Steel Pipe/cable diameter, max. 32 mm Pipe/cable diameter, min. 30 mm Surface Zinc slat Dimensions

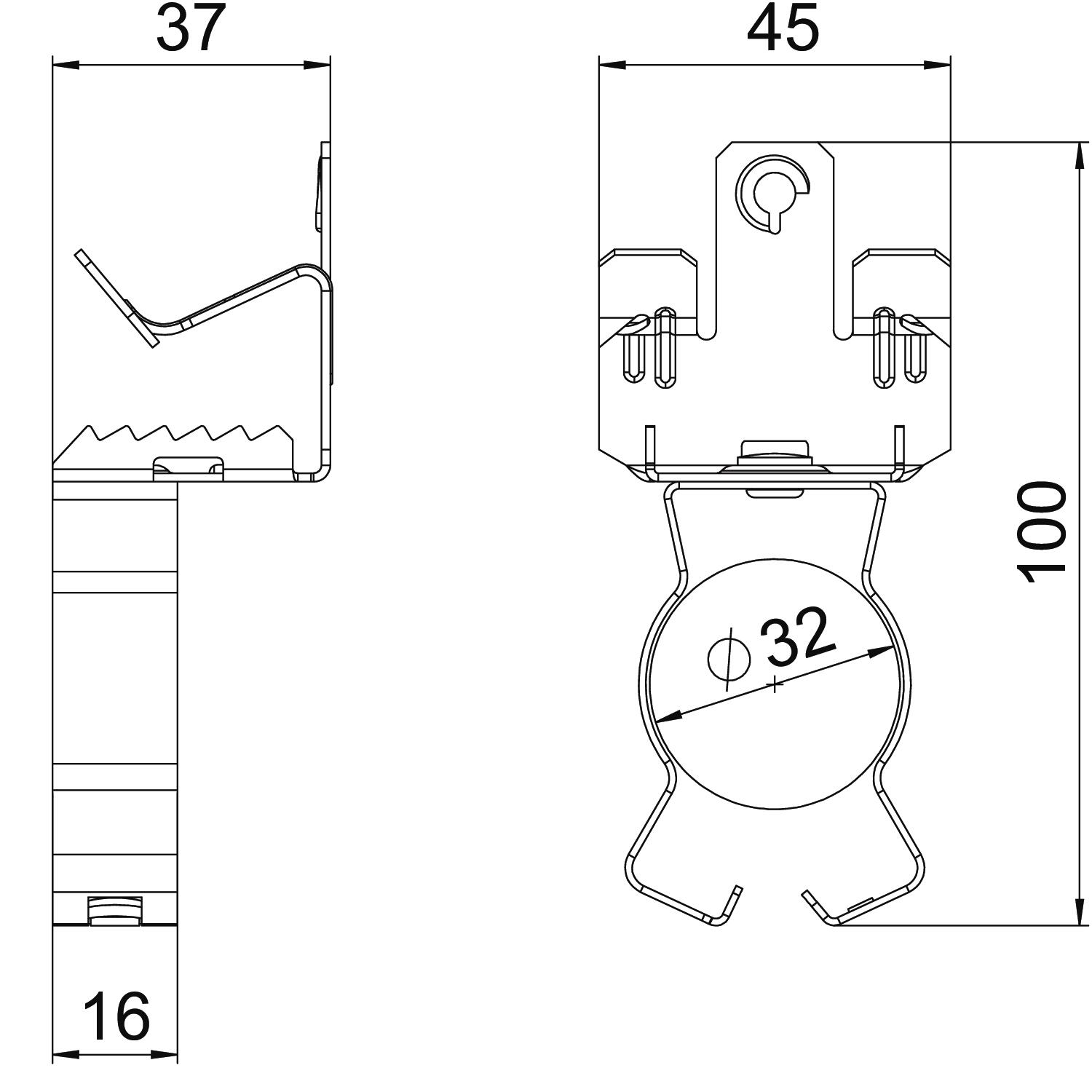

Dimension D 32 mm Dimension L 100 mm Height 36 mm Length 100 mm Width 45 mm - All types
-
All types
- Downloads
-
Data sheet SCVPC 14-20 D32 / 1488639 , 0.21MB , pdf
