- Product description
-
Product description

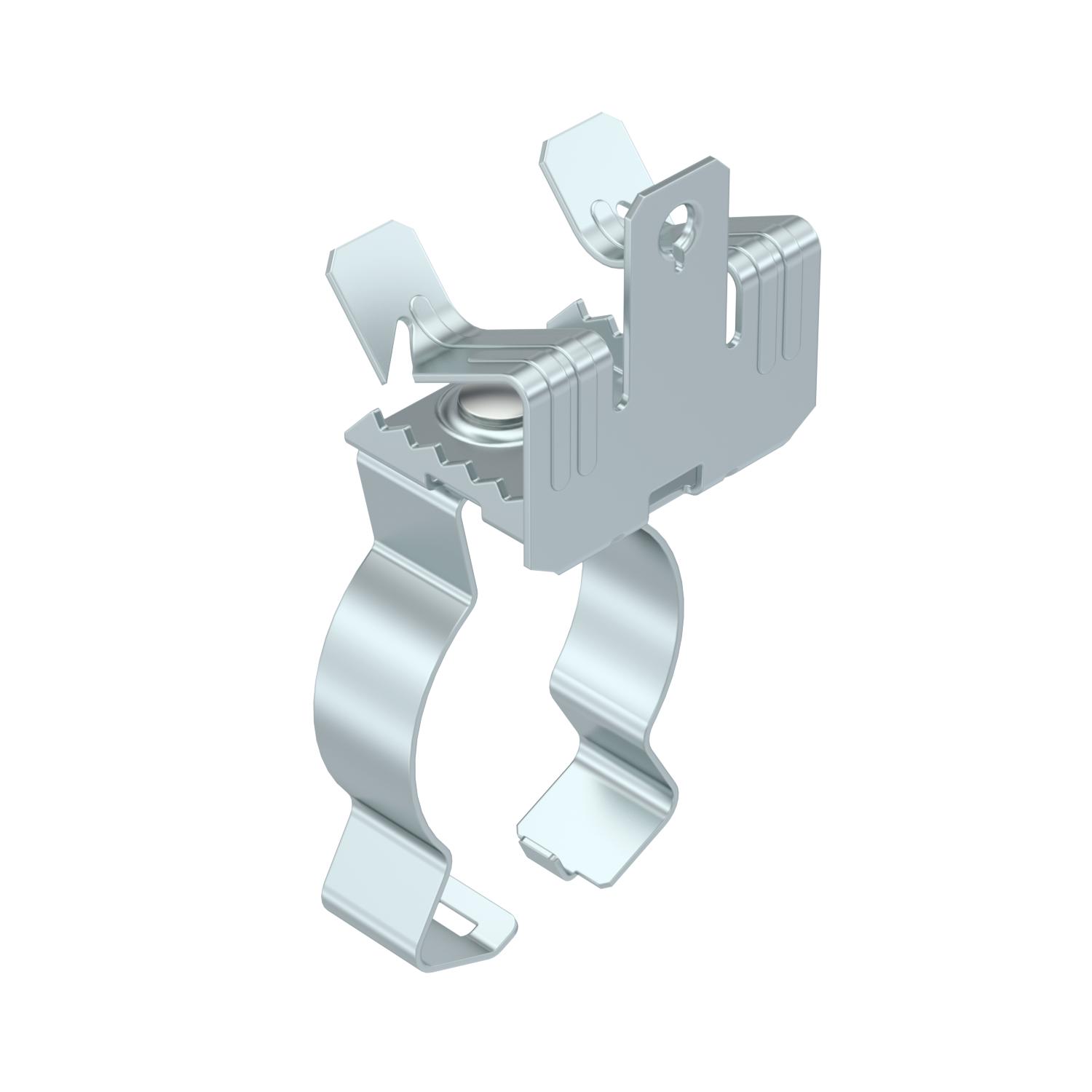

Support clamp for mounting pipes. Closed pipe seat at bottom. Fastening through knocking onto steel girders.
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 14-20mm Fastening type Clamp Flange thickness F max. 20 mm Flange thickness F min. 14 mm Hinge, adjustable no Hinged no Material Steel Pipe/cable diameter, max. 40 mm Pipe/cable diameter, min. 36 mm Surface Zinc slat Dimensions

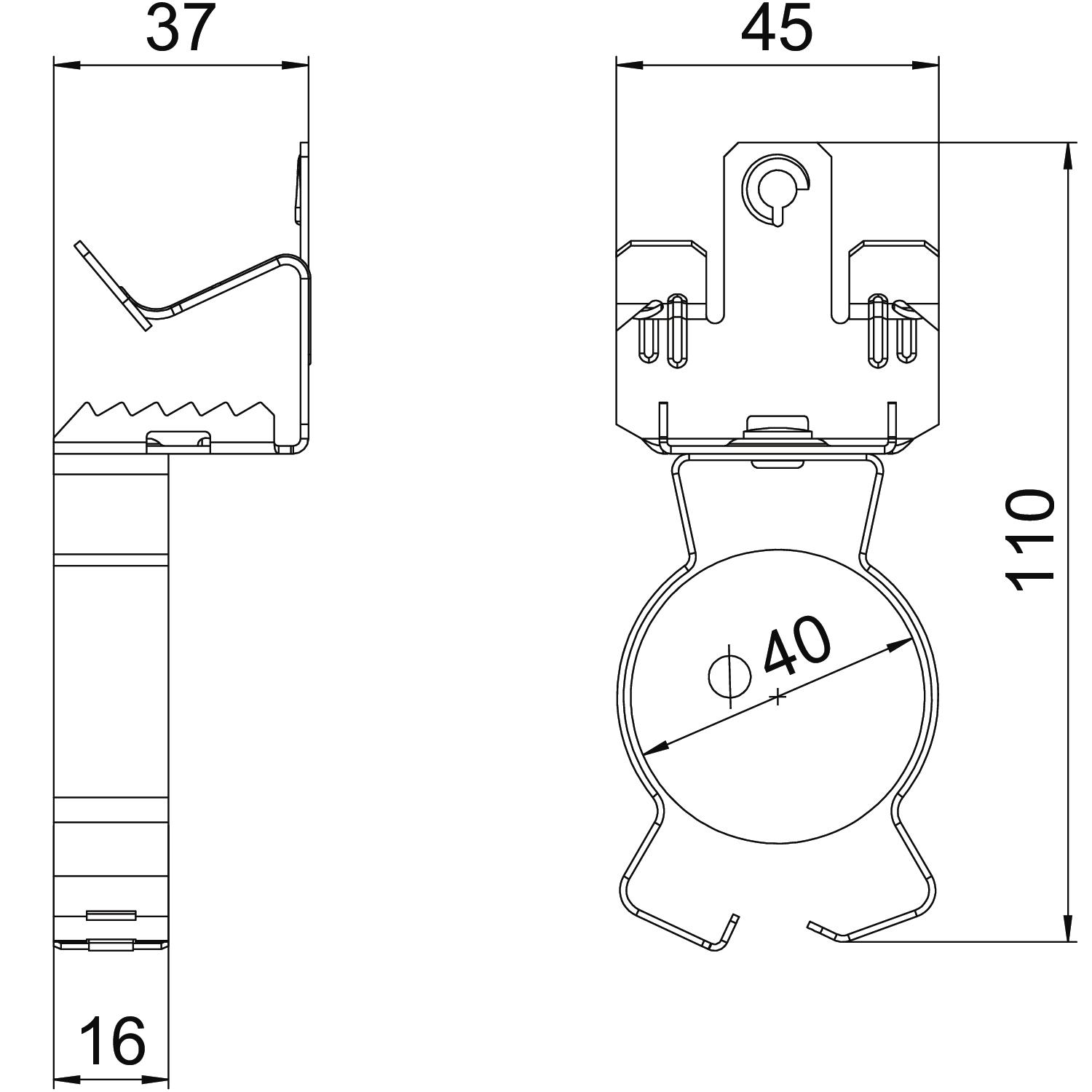

Dimension D 40 mm Dimension L 110 mm Height 36 mm Length 113 mm Width 45 mm - All types
-
All types
- Downloads
-
Data sheet SCVPC 14-20 D40 / 1488641 , 0.19MB , pdf
English
