- Product description
-
Product description

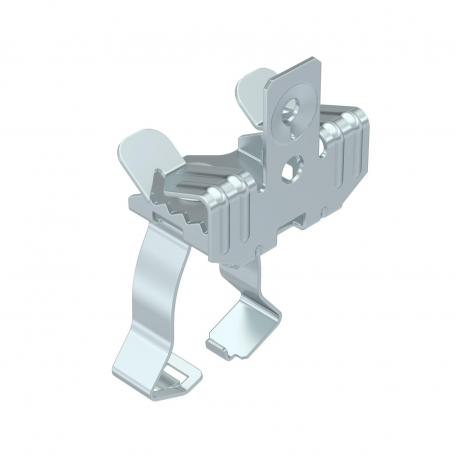

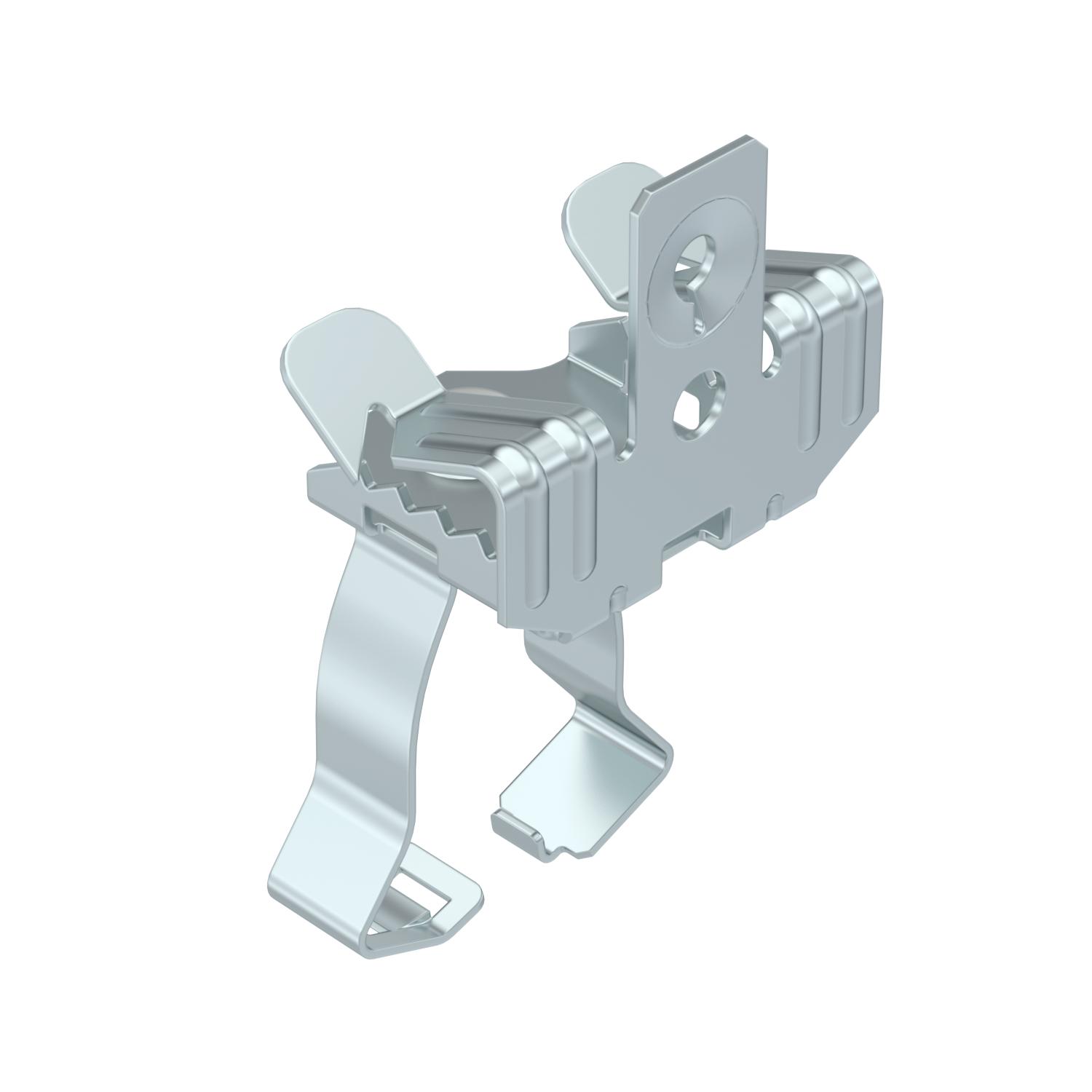

Support clamp for mounting pipes. Closed pipe seat at bottom. Fastening through knocking onto steel girders.
- Technical data
-
Technical data
Connection type/component Pipe/cable Dimension 7-13mm Fastening type Clamp Flange thickness F max. 13 mm Flange thickness F min. 7 mm Hinge, adjustable no Hinged no Material Steel Pipe/cable diameter, max. 25 mm Pipe/cable diameter, min. 20 mm Surface Zinc slat Dimensions

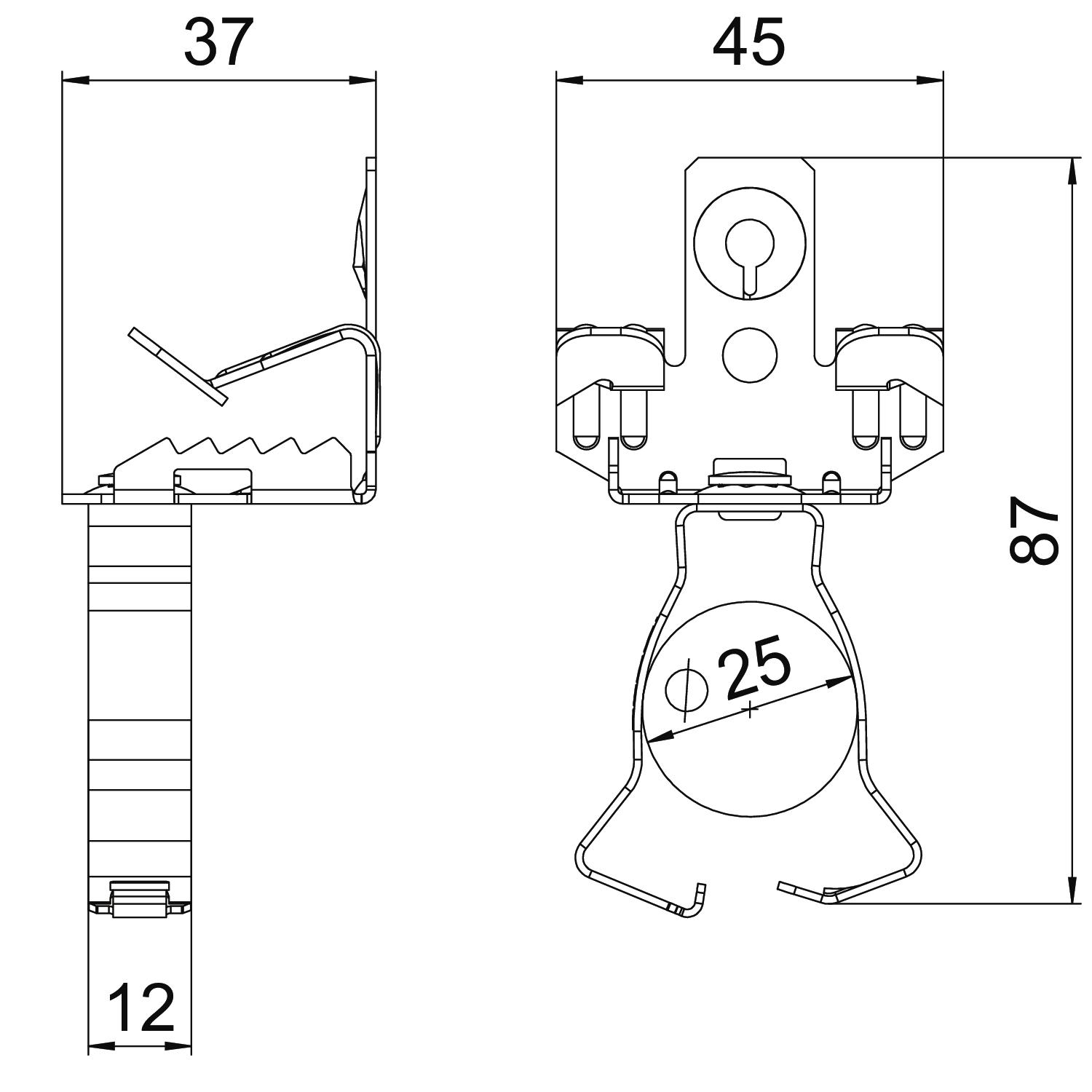

Dimension D 25 mm Dimension L 87 mm Height 37 mm Length 89 mm Width 45 mm - All types
-
All types
- Downloads
-
Data sheet SCVPC 7-13 D25 / 1488629 , 0.21MB , pdf
