Support clamp, with threaded rod seat

Item no. / Types

Length

Width	40 mm

Height

Dimension L

Flange thickness F min.

Flange thickness F max.

Product description

Product description

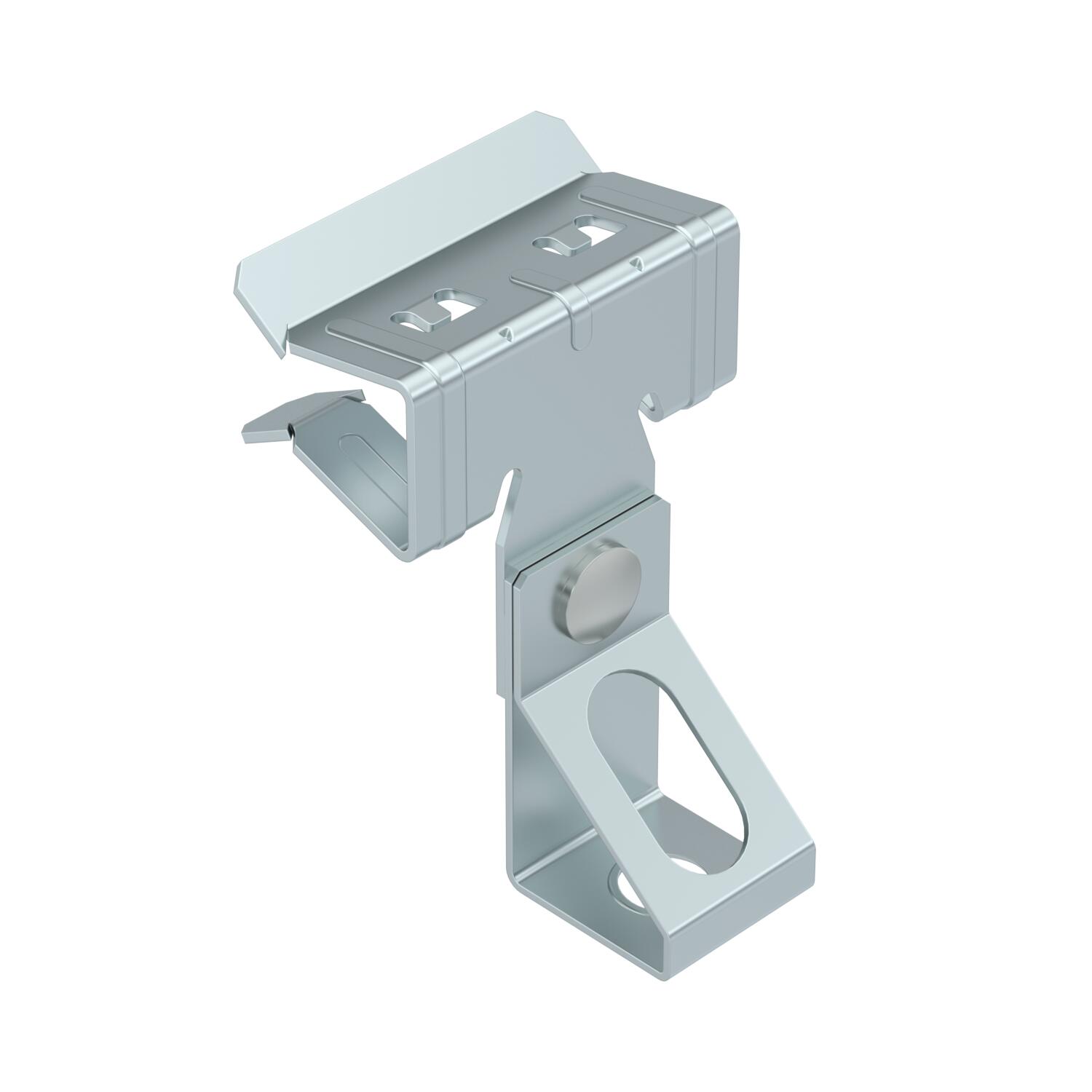

Support clamp with threaded rod seat for individual mounting solutions. Fastening through knocking onto steel girders.

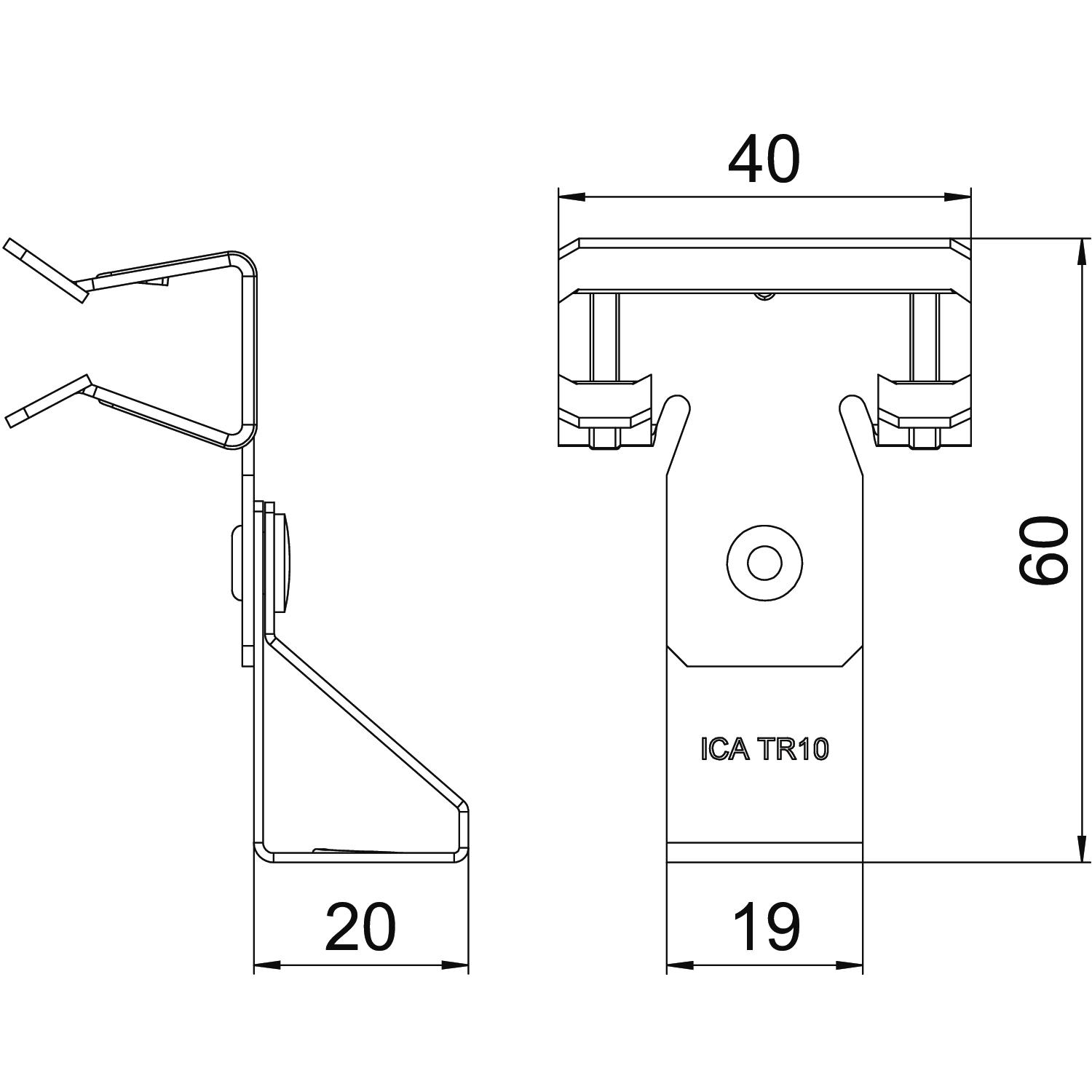

Technical data

Dimension L	60 mm
Height	45 mm

Length	60 mm
Width	40 mm

All types

Types	Length	Width	Height	Dimension L	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
SCTR 4-10 M6	54 mm	40 mm	43 mm	54 mm	4 mm	10 mm	1488321	piece	50 piece
SCTR 10-15 M6	60 mm	40 mm	44 mm	60 mm	10 mm	15 mm	1488323	piece	50 piece
SCTR 4-10 M8	54 mm	40 mm	44 mm	54 mm	4 mm	10 mm	1488325	piece	50 piece
SCTR 10-15 M8	60 mm	40 mm	45 mm	60 mm	10 mm	15 mm	1488327	piece	50 piece
SCTR 4-10 M10	54 mm	40 mm	44 mm	54 mm	4 mm	10 mm	1488329	piece	50 piece
SCTR 10-15 M10	60 mm	40 mm	45 mm	60 mm	10 mm	15 mm	1488331	piece	50 piece
