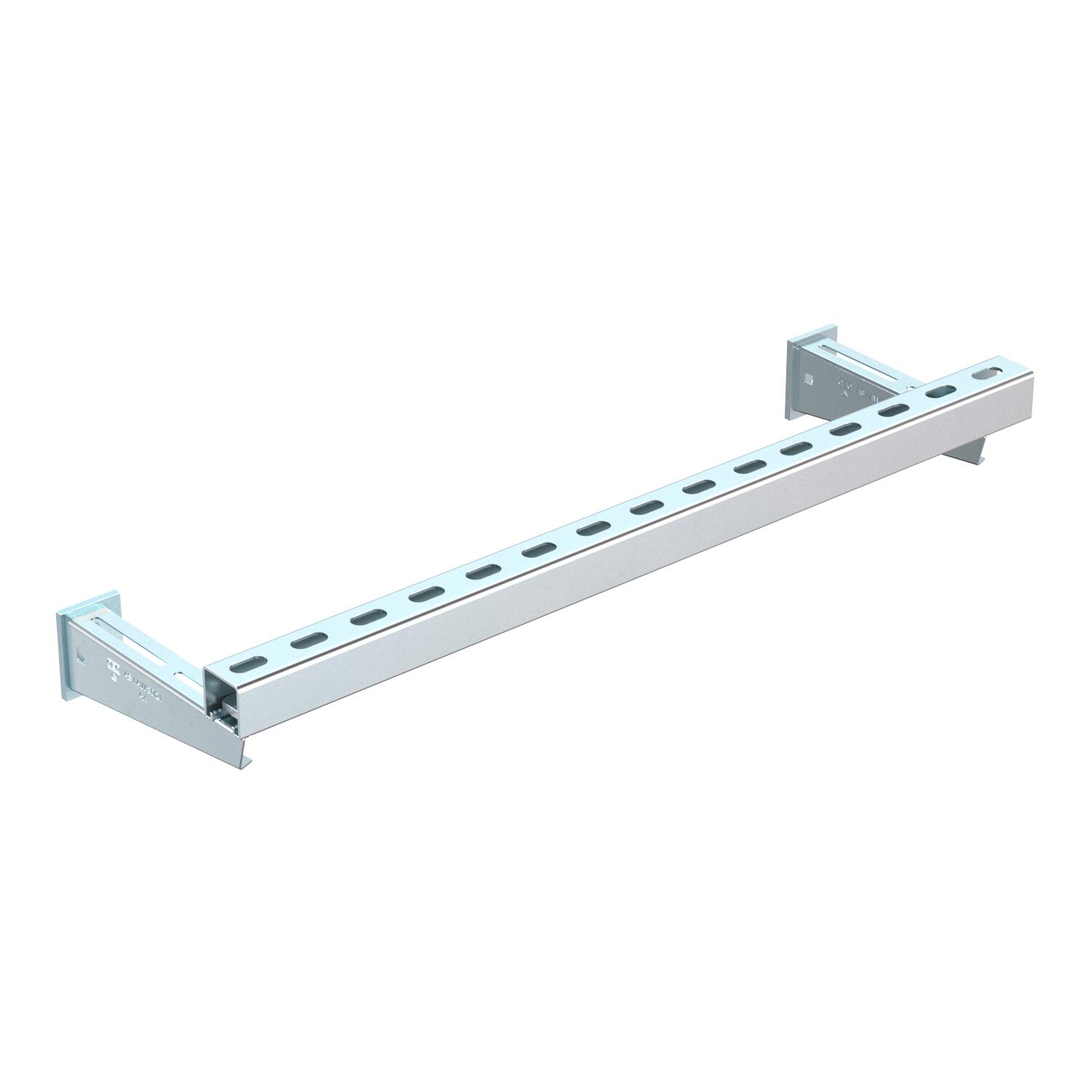

Support construction for insulations, with bracket
Item no. 7202436 | EAN 4012196839520
- Product description
-
Product description
Suspension and fastening material, made of steel, to create the first support of pass-through installations in fire insulation. Mounting of the bracket on the wall, support of the installation using mounting rail.
The maximum distance of the mounting rail to the wall of 200 mm fulfils the requirements of most insulation systems.
- Technical data
-
Technical data

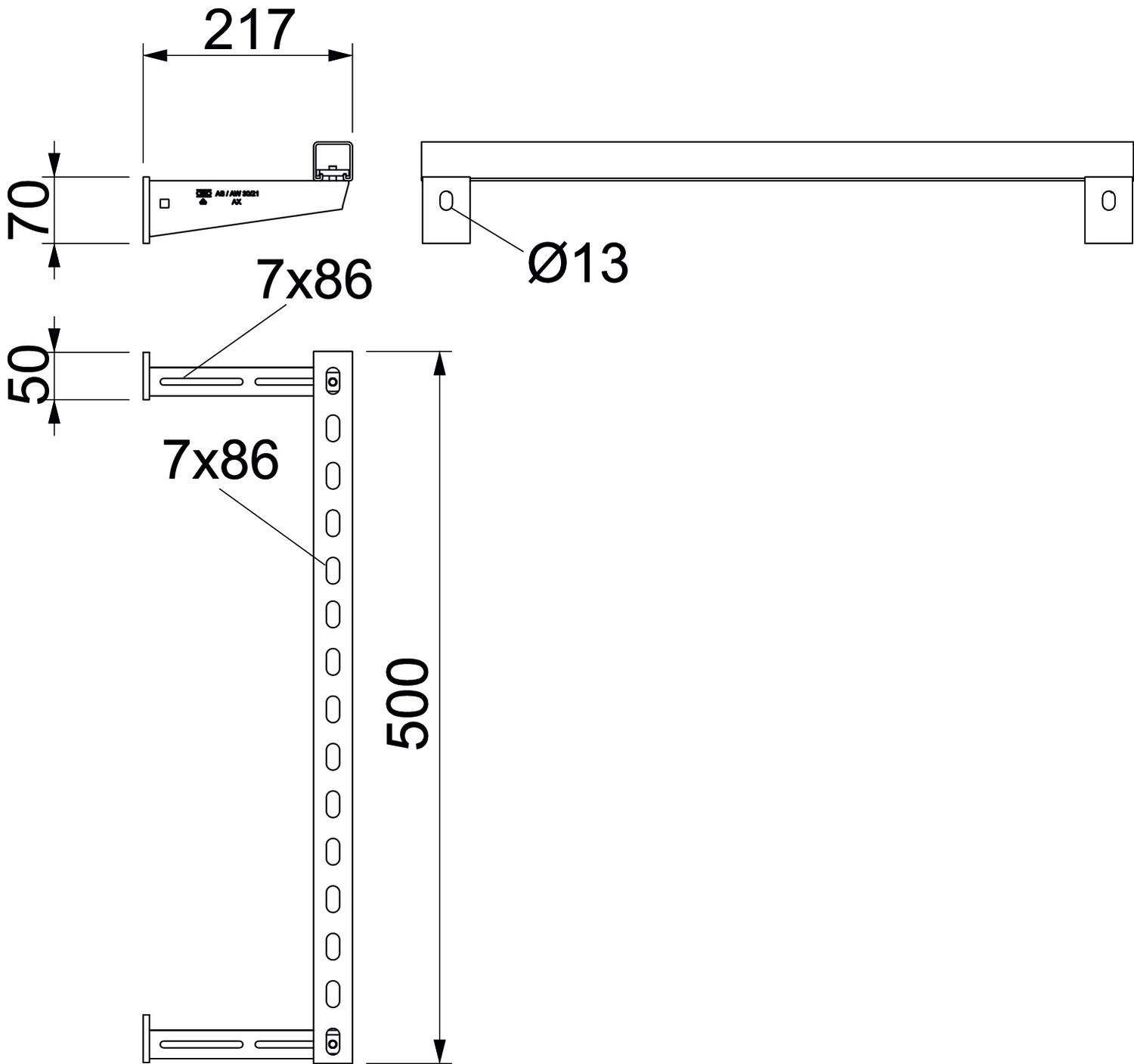

Dimension 500mm Dimension A 50 mm Dimension B 217 mm Dimension H 70 mm Material Steel Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet SKA 05 VZ / 7202436 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, support structure bracket , 0.82MB , pdfNo invitation to tender text is available for this product.
