Support, duct width 100 mm, pure white 200 | 67 | Pure white; RAL 9010
morepic-1 morepic-2

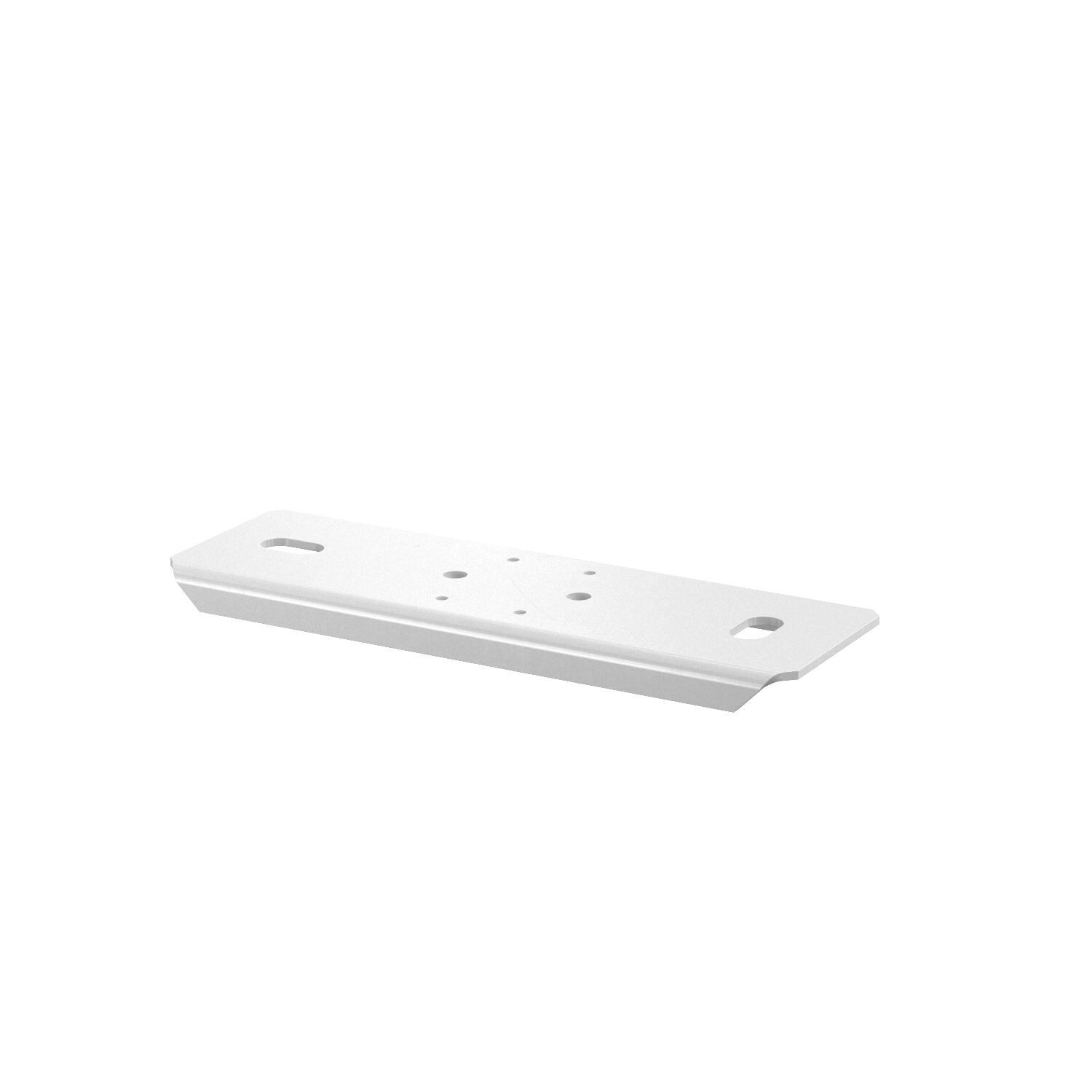

Support, duct width 100 mm, pure white

Item no. 7218166 | EAN 4012197274740

7218166 / PLM SU 100 RW
200 mm
67 mm
Pure white; RAL 9010
Product description
Product description
Support for suspended mounting of the PYROLINE® Rapid PLM installation duct.
Suspension point for accepting two M10 threaded rods and suitable as a support at joints of ducts and fittings.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Colour Pure white; RAL 9010

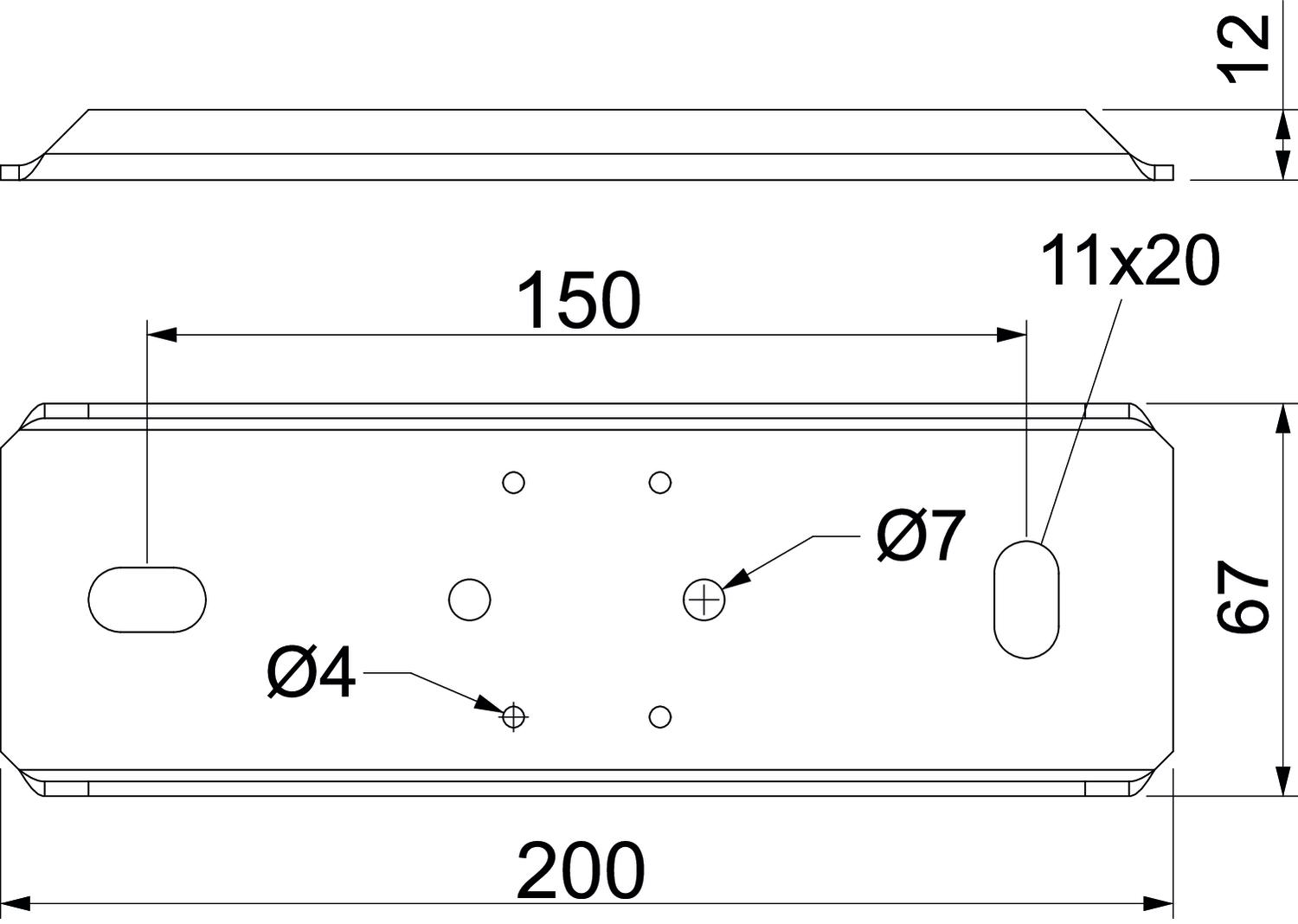

Dimension 200x67x12
Dimension B 200 mm
Dimension b 150 mm
Length 200 mm
Material Steel
Spare part no
Surface Strip galvanized
Type of accessory Threaded rod adapter
Width 67 mm
All types

All types

Types Length Width Colour Item no. Quantity SSU
PLM SU 100 RW 200 mm 67 mm Pure white; RAL 9010 7218166
5 piece
Downloads

Download

Download

EU declaration of conformity PLM SU 100 RW / 7218166 , 0.11MB , pdf
Download
Declaration of performance PLM SU 100 RW / 7218166 , 0.78MB , pdf
Download

Download

No invitation to tender text is available for this product.
