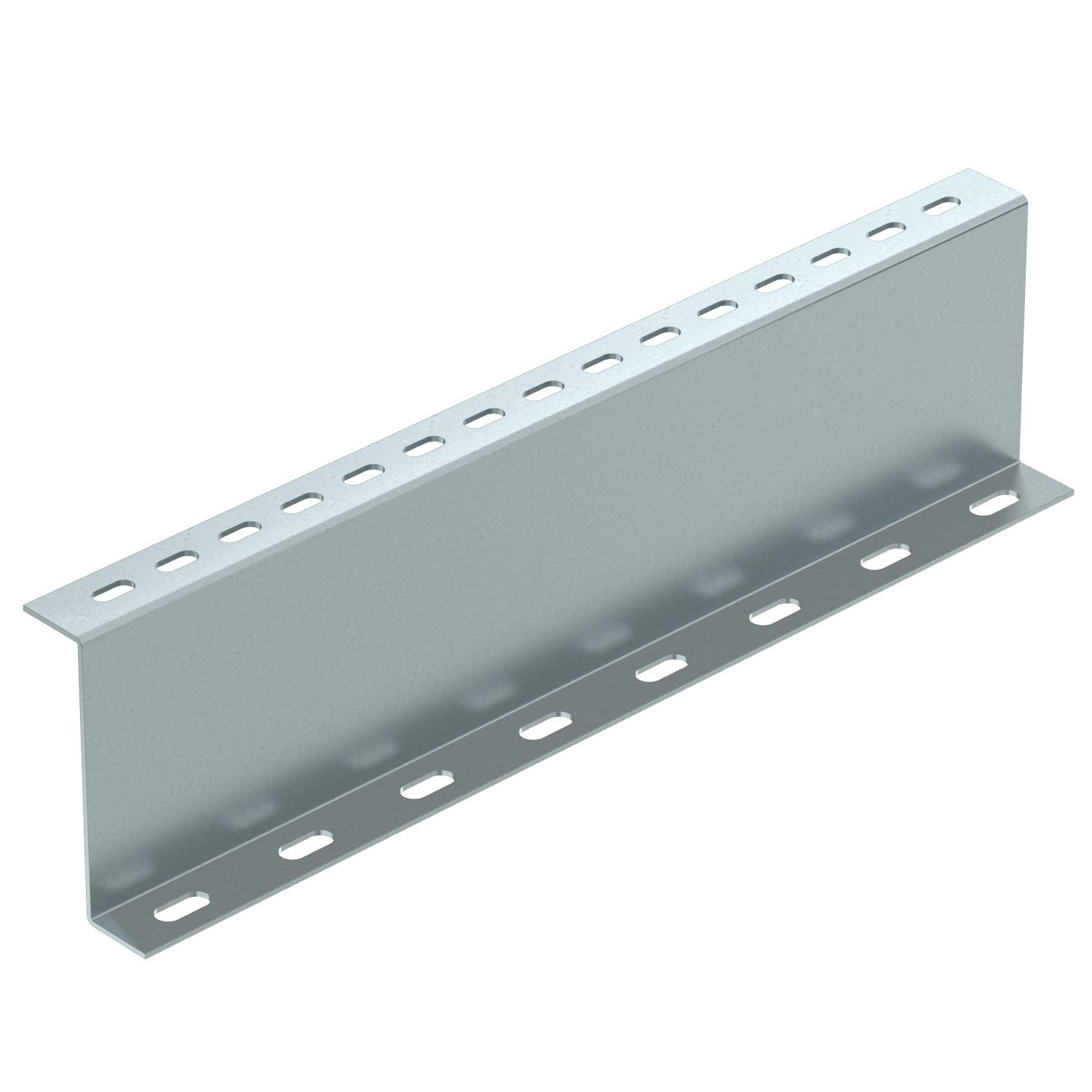

Support profile 100 FS

Item no. 6044581 | EAN 4012196341726

Item no. / Types

Length

Product description

Product description

Support profile for holding up the walkable cable tray system BKRS from the floor. Installation must be performed on both sides of the Z profile during the process of securing the system so that it is held up.

Technical data

Technical data

Colour	zinc

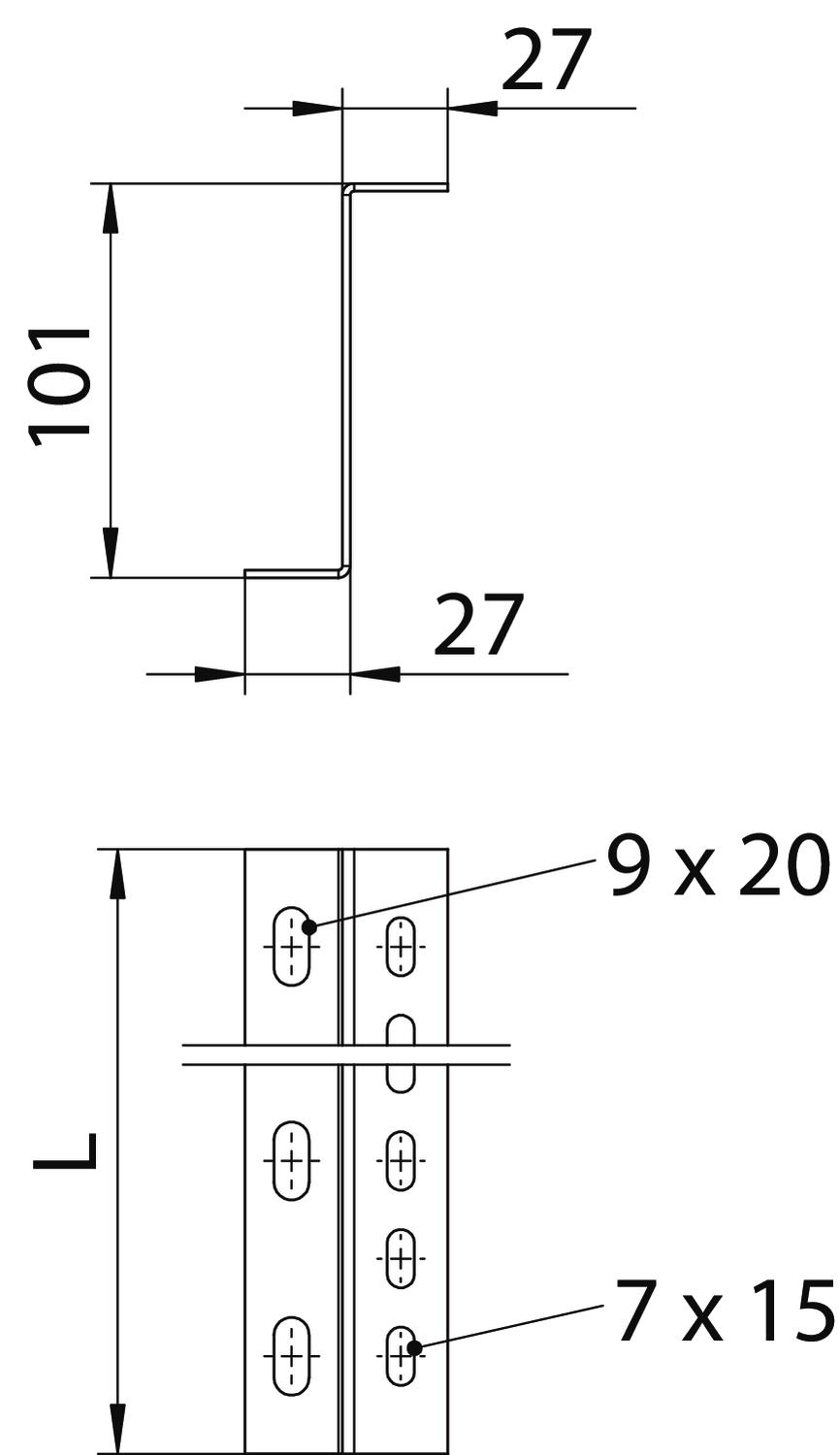

Dimension	100x100
Dimension L	100 mm
Height	100 mm
Length	100 mm

Material	Steel
Material thickness	2 mm
Rustproof steel, pickled	no
Surface	Strip galvanized
Width	100 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
STP Z 1010 FS	100 mm	6044581	piece	10 piece
STP Z 1020 FS	200 mm	6044583	piece	10 piece
STP Z 1030 FS	300 mm	6044585	piece	10 piece
STP Z 1040 FS	400 mm	6044587	piece	10 piece
STP Z 1050 FS	500 mm	6044589	piece	10 piece
STP Z 1060 FS	600 mm	6044591	piece	10 piece
STP Z 10300 FS	3000 mm	6044596	m	3 m
