Surface-mounted socket 0° with hinged cover, protective contact, single Black
morepic-1 morepic-2

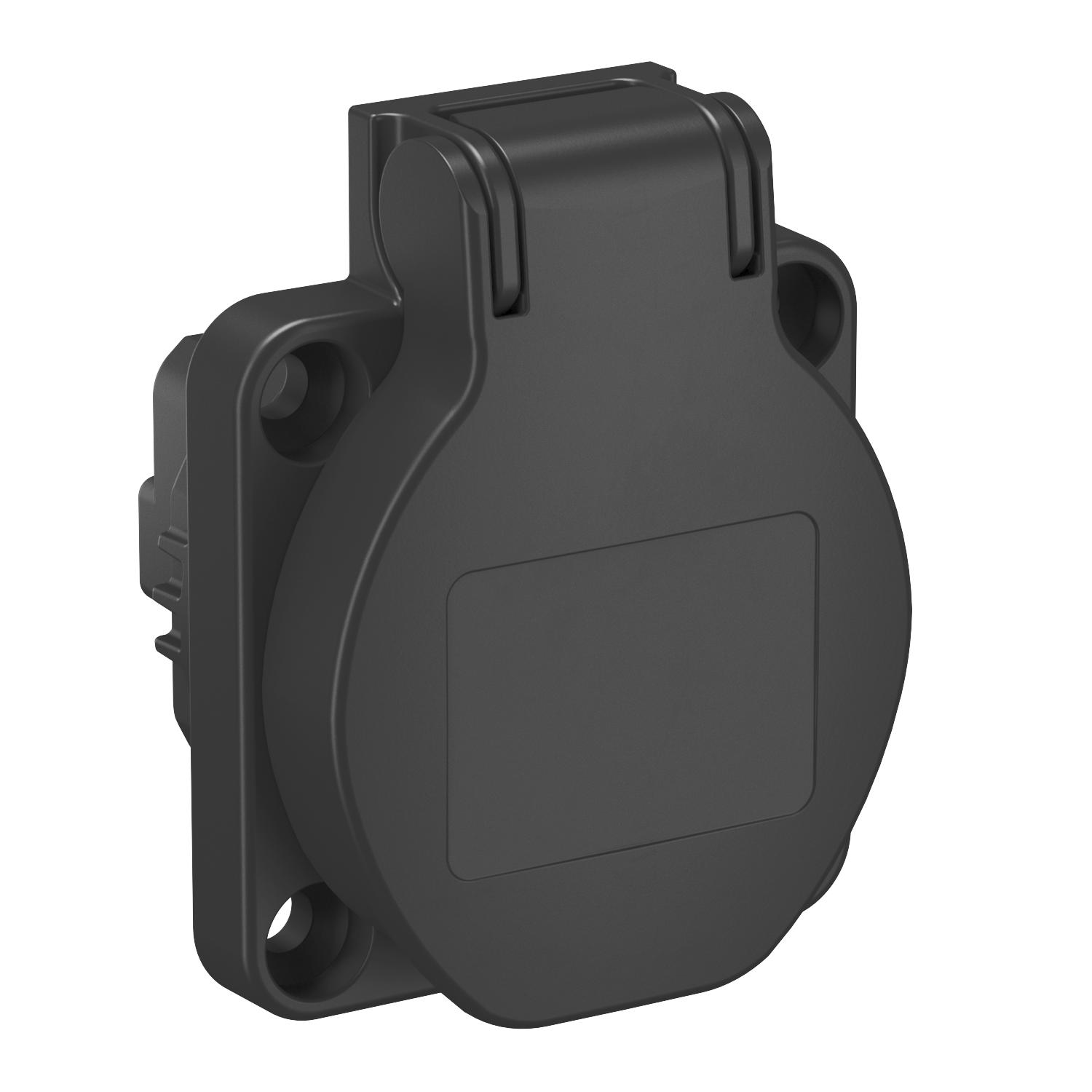

Surface-mounted socket 0° with hinged cover, protective contact, single

Item no. 6109873 | EAN 4012196169351

6109873 / ASD-D0 SW
Black
Product description
Product description
Protective contact extension socket 0° with hinged cover, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1. Protection rating: IP44.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Black
CO₂ Footprint (GWP) Cradle-to-Gate 0,043 kg CO₂e / 1 Piece

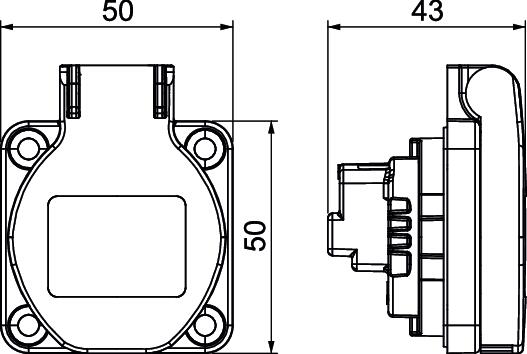

Dimension 50x61mm
Direction of insertion Straight
Flange dimension 50x50
For more difficult conditions (according to VDE) no
Halogen-free no
Height 39 mm
Length 50 mm
Nominal current 16 A
Nominal voltage 250 V
Protection rating IP44
Width 50 mm
All types

All types

Types Colour Item no. Quantity SSU
ASD-D0 SW Black 6109873
5 piece
Downloads

Download

Download
Download

REACH Declaration of conformity ASD-D0 SW / 6109873 , 0.12MB , pdf
Download
RoHS Declaration of conformity ASD-D0 SW / 6109873 , 0.12MB , pdf
Download

ASD-D0 SW / 6109873
