Product description

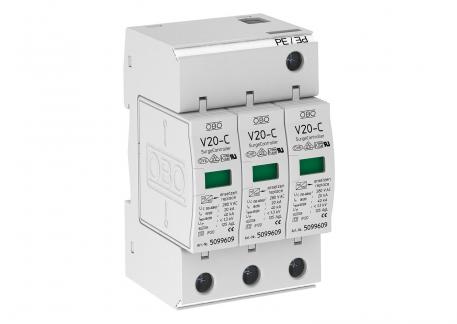

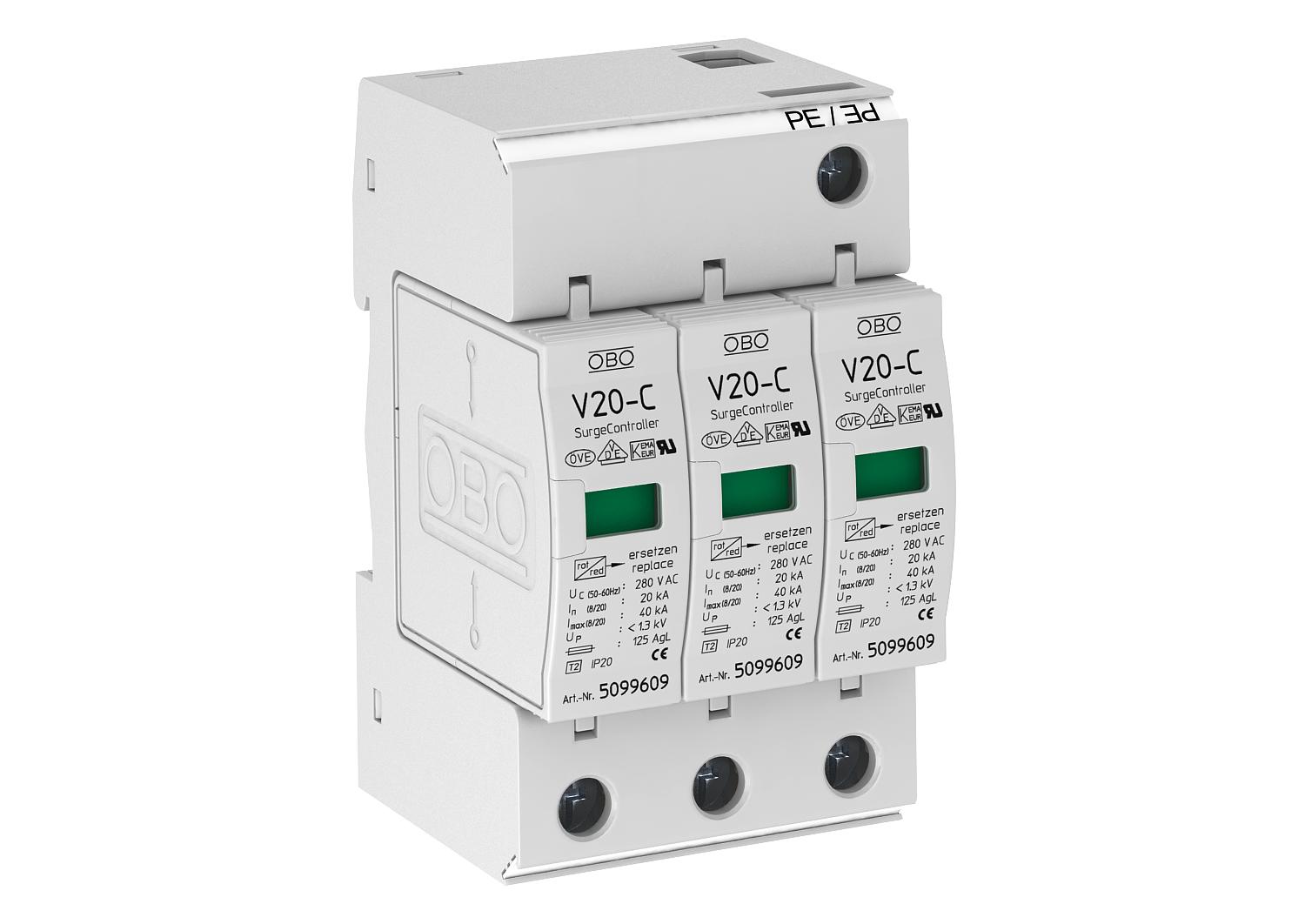

Surge arrester, type 2
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 40 kA (8/20) per pole
• Plug-in arrester with dynamic cut-off unit and visual function display
• High-performance varistor technology
Application: Equipotential bonding (LPZ 1 to 2) in main and sub-distributors.
* Complete = cover and base
-
- Technical data
-
Technical data
Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Dimension 280V Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 1→2 Maximum back-up fuse 125 A Maximum continuous voltage AC 280 Maximum discharge current (8/20 μs) 40 kA Network form TN Nominal discharge current (8/20 µs) 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes Version for 3-pole Connectivity options
Arrester surge current (8/20 µs) [total] 60 kA Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Max. mains-side overcurrent protection 125 - All types
