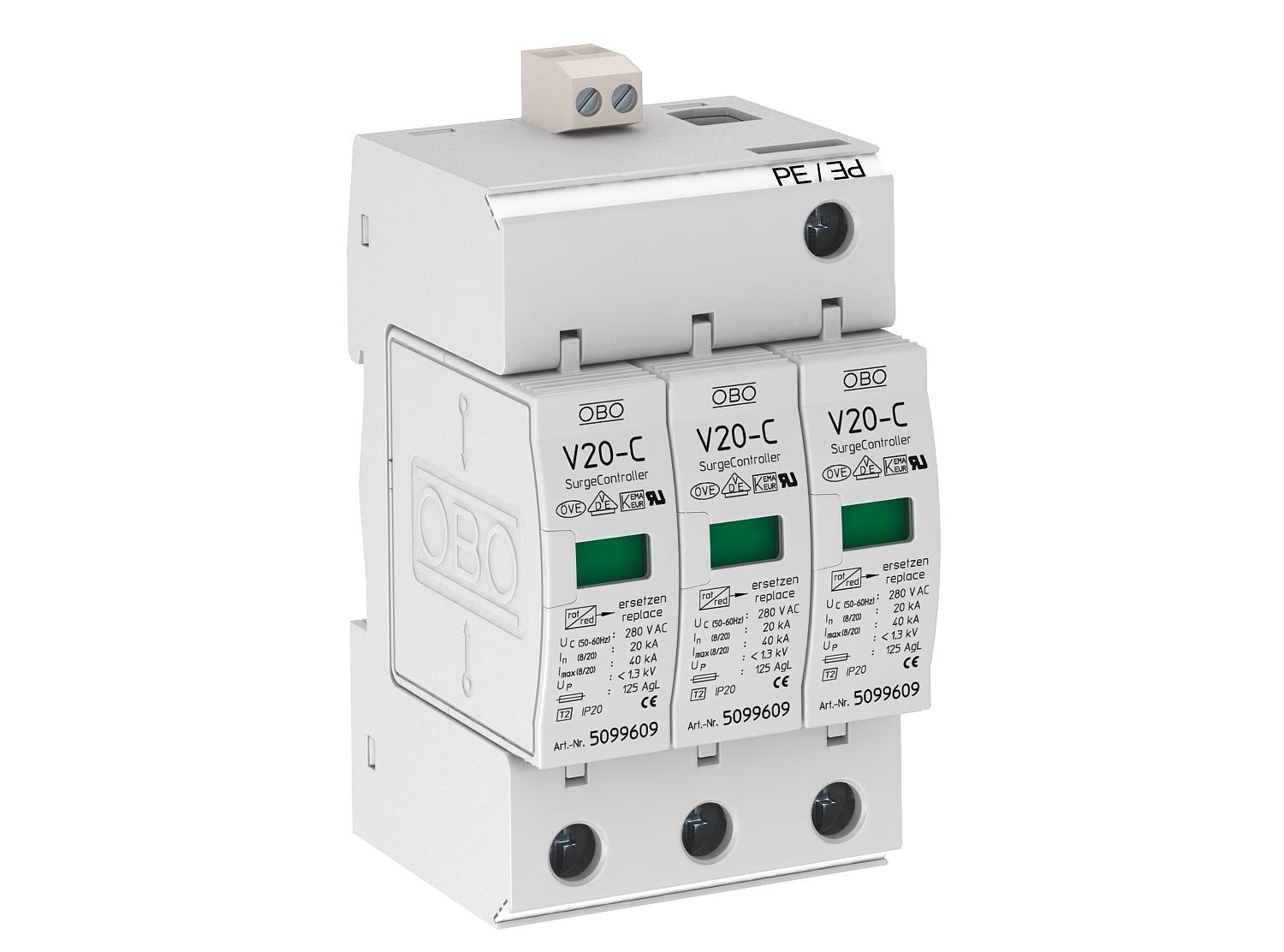

Surge arrester, type 2
• Complete unit consisting of cover and base, pre-mounted and ready for connection
• Suitable for TN network systems
• Plug-in upper part; upper part can be separated from base without tools
• With remote signalling and potential-free NO contact for function monitoring
• Incl. thermal and dynamic cut-off unit
• With visual display of defects
• High current conductivity and long service life
• Labelled connections
Application example: Residential buildings, single-family homes and industrial
* Complete = cover and base
-
- Technical data
-
Technical data

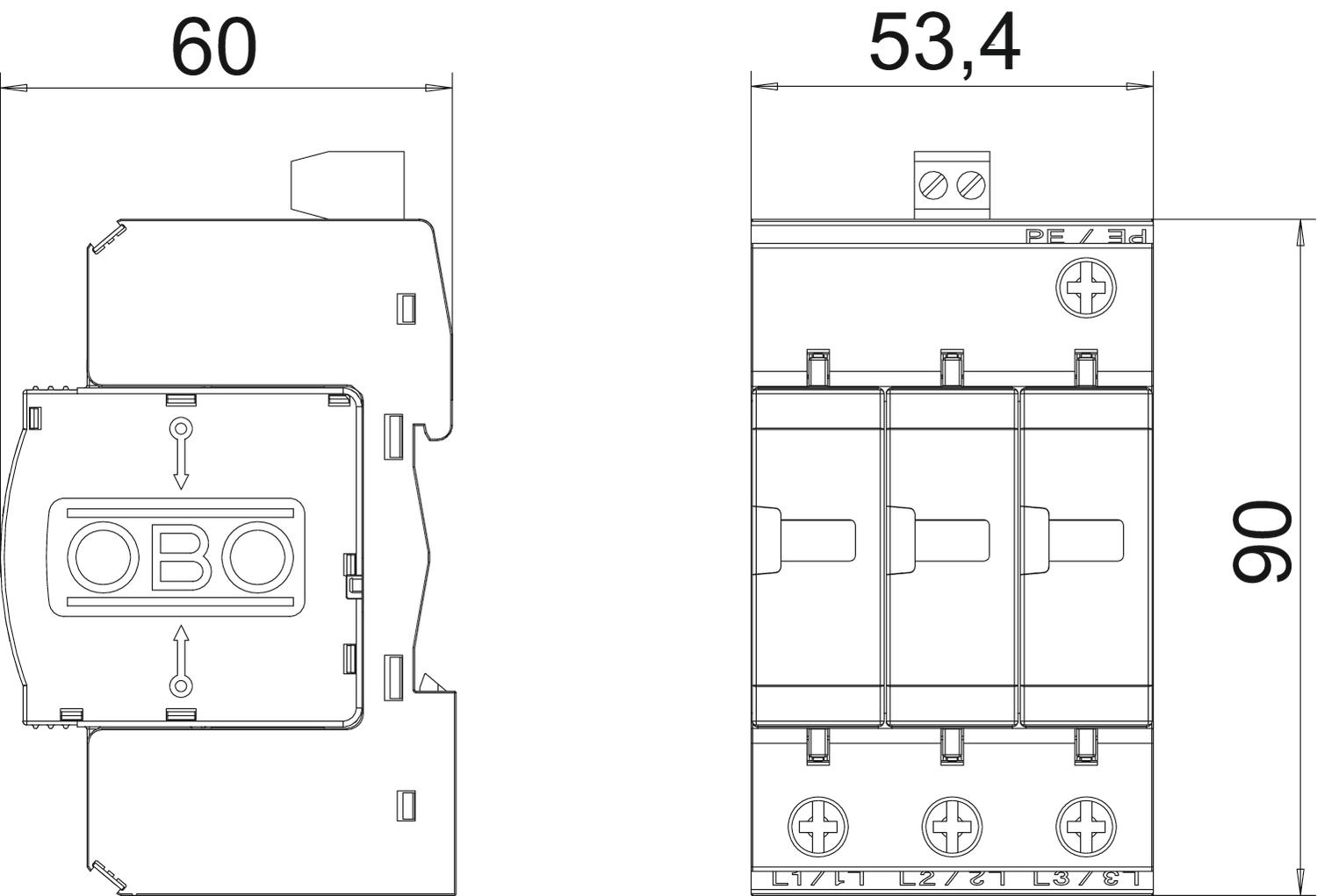

Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Dimension 280V Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 1→2 Maximum back-up fuse 125 A Maximum continuous voltage AC 280 Maximum discharge current (8/20 μs) 40 kA Network form TN Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3 Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes Version for 3-pole + FS Connectivity options
Arrester surge current (8/20 µs) [total] 60 kA Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Max. mains-side overcurrent protection 125 - All types
