Surge arrester V10 Compact
Item no. 5093381 | EAN 4012196862566
- Product description
-
Product descriptionSurge protective device, compact module, type 2+3
• Surge protection in main and sub-distributions according to IEC 60364-4-44
• Arresting capacity up to 60 kA (8/20) in total

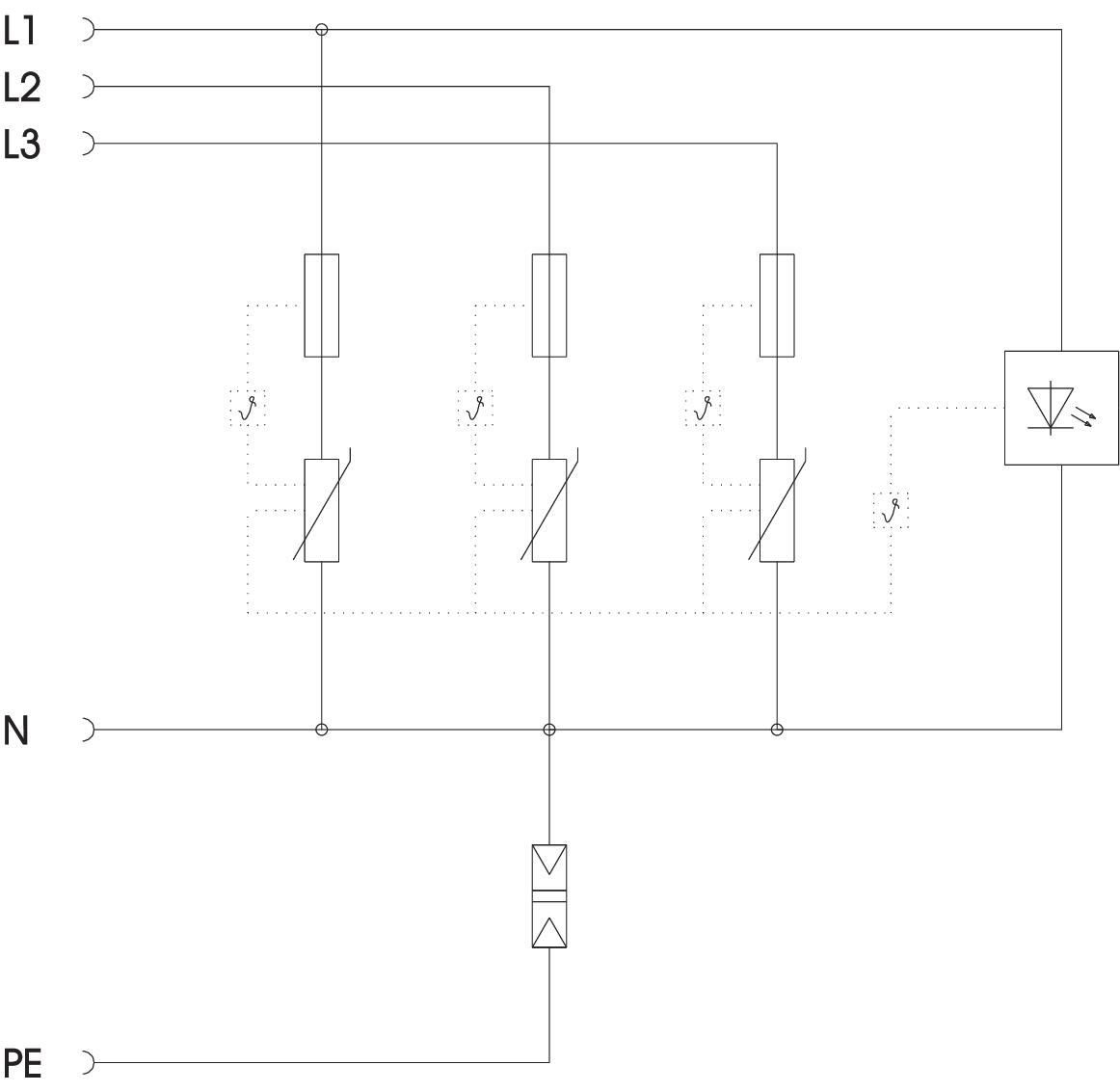

• Integrated 3+1 solution for TN and TT network systems on 45 mm module width
• High-performance varistor technology
• Including thermic and dynamic cut-off unit and visual status display
Application: Main and sub-distribution as well as device protection in three-phase current systems.
-
- Technical data
-
Connectivity options

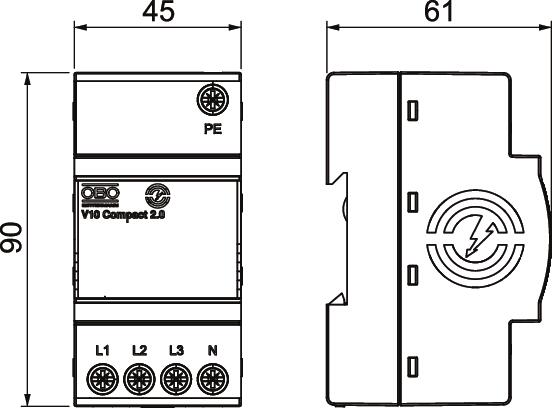

Arrester surge current (8/20 µs) [total] 60 kA Cable type for surge protection devices Power cable AV Conductor cross-section, flexible (fine-wire), max. 10 mm² Conductor cross-section, flexible (fine-wire), max. 8 AWG Conductor cross-section, flexible (fine-wire), min. 2,5 mm² Conductor cross-section, flexible (fine-wire), min. 13 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 10 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 8 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 13 AWG Dimension 255V Follow current quenching capacity (eff) [N-PE] 0,1 kA Height 90 mm Installation type DIN rail 35 mm Integrated back-up fuse no Length 60,5 mm Lightning protection zone LPZ 1→3 Max. mains-side overcurrent protection 63 A gG Maximum back-up fuse 63 A Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 20 kA Maximum discharge current (8/20 μs) [L-N] 20 kA Maximum discharge current (8/20 μs) [N-PE] 60 kA Network form All Nominal discharge current (8/20 µs) 10 kA Nominal discharge current (8/20 µs) [L-N] 10 kA Nominal discharge current (8/20 µs) [N-PE] 40 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 70 °C Operating temperature, min. -40 °C Pole number 4 Pole version 3+N/PE Protection level [L-N] ≤1,1 Protection rating IP20 Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2+3 SPD to IEC 61643-1 Class II+III Test class, type 2 yes Test class, type 3 yes TN network form yes TN-C-S network form yes TN-S network form yes Torque 2 Nm TT network form yes Version for 3+NPE Width 45 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Connecting bridge for V10 Compact 200 mm
VB-V10 COMPACT-2 5089650 10 piece - Downloads
-
