Surge arrester V10 Compact with remote signalling 255 V
Item no. 5093382 | EAN 4012196098583

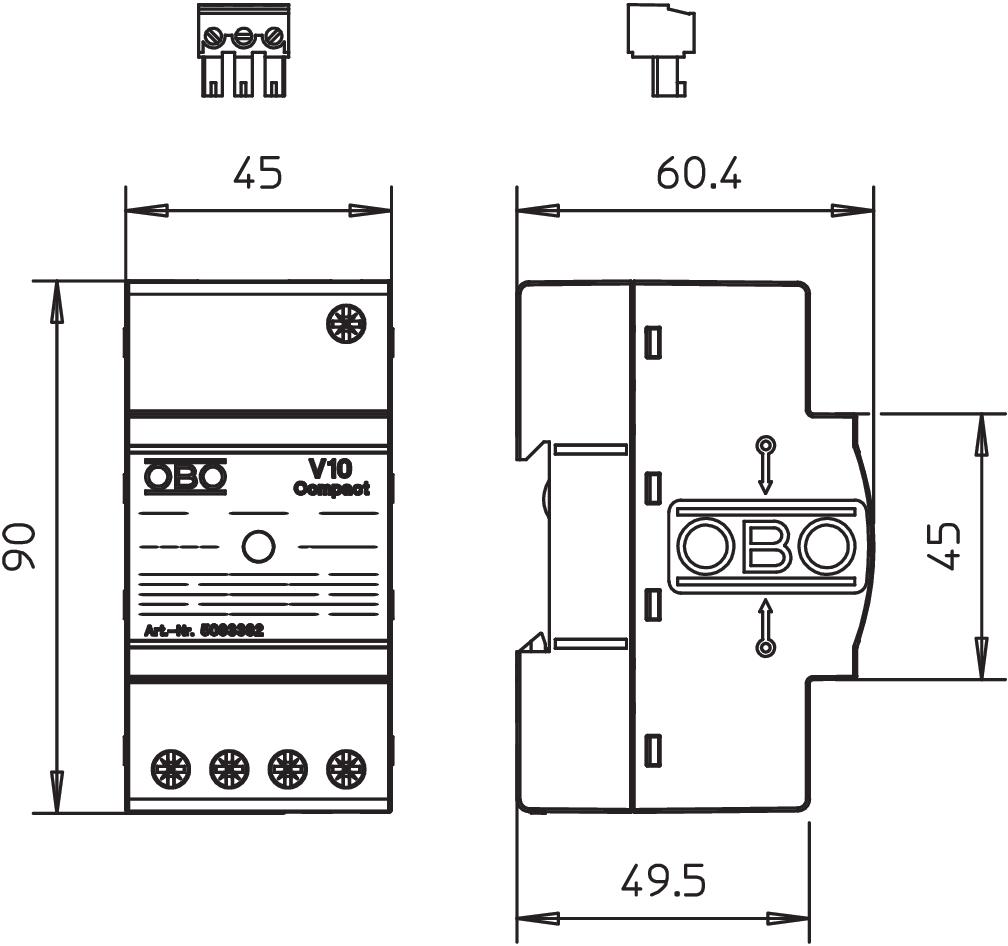

- Product description
-
Product descriptionSurge protective device, compact module, type 2+3
• Surge protection in sub-distributors to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 60 kA (8/20) in total
• Integrated 3+1 solution for TN and TT network systems on 45 mm module width
• High-performance varistor technology
• Including thermic and dynamic cut-off unit and visual function display
• ...-FS version with potential-free changeover contact for remote signalling
Application: Sub/storey distribution as well as device protection in rotational current systems.
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 60 kA Cable type for surge protection devices Power cable AV Conductor cross-section, flexible (fine-wire), min. 10 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 10 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 255V FM contacts Changeover Follow current quenching capacity (eff) [N-PE] 10,6 kA Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 1→3 Max. mains-side overcurrent protection 63 Maximum back-up fuse 63 A Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 20 kA Network form Other Nominal discharge current (8/20 µs) 10 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2+3 SPD to IEC 61643-1 Class II+III Test class, type 2 yes Test class, type 3 yes TN network form yes TN-C-S network form yes TN-S network form yes TT network form yes Version for 3+NPE - All types
-
System accessories
Products Types Item no. Quantity SSU
Connecting bridge for V10 Compact 200 mm
VB-V10 COMPACT-2 5089650 10 piece - Downloads
-
Data sheet V10 COMPACT-FS / 5093382 , 0.24MB , pdfEU declaration of conformity V10 COMPACT-FS / 5093382 , 0.11MB , pdfREACH Declaration of conformity V10 COMPACT-FS / 5093382 , 0.12MB , pdfRoHS Declaration of conformity V10 COMPACT-FS / 5093382 , 0.12MB , pdfInstallation instructions Installation instructions, V10 Compact-FS , 2.00MB , pdfNo invitation to tender text is available for this product.
