- Product description
-
Product descriptionSurge arrester type 2, 280 V

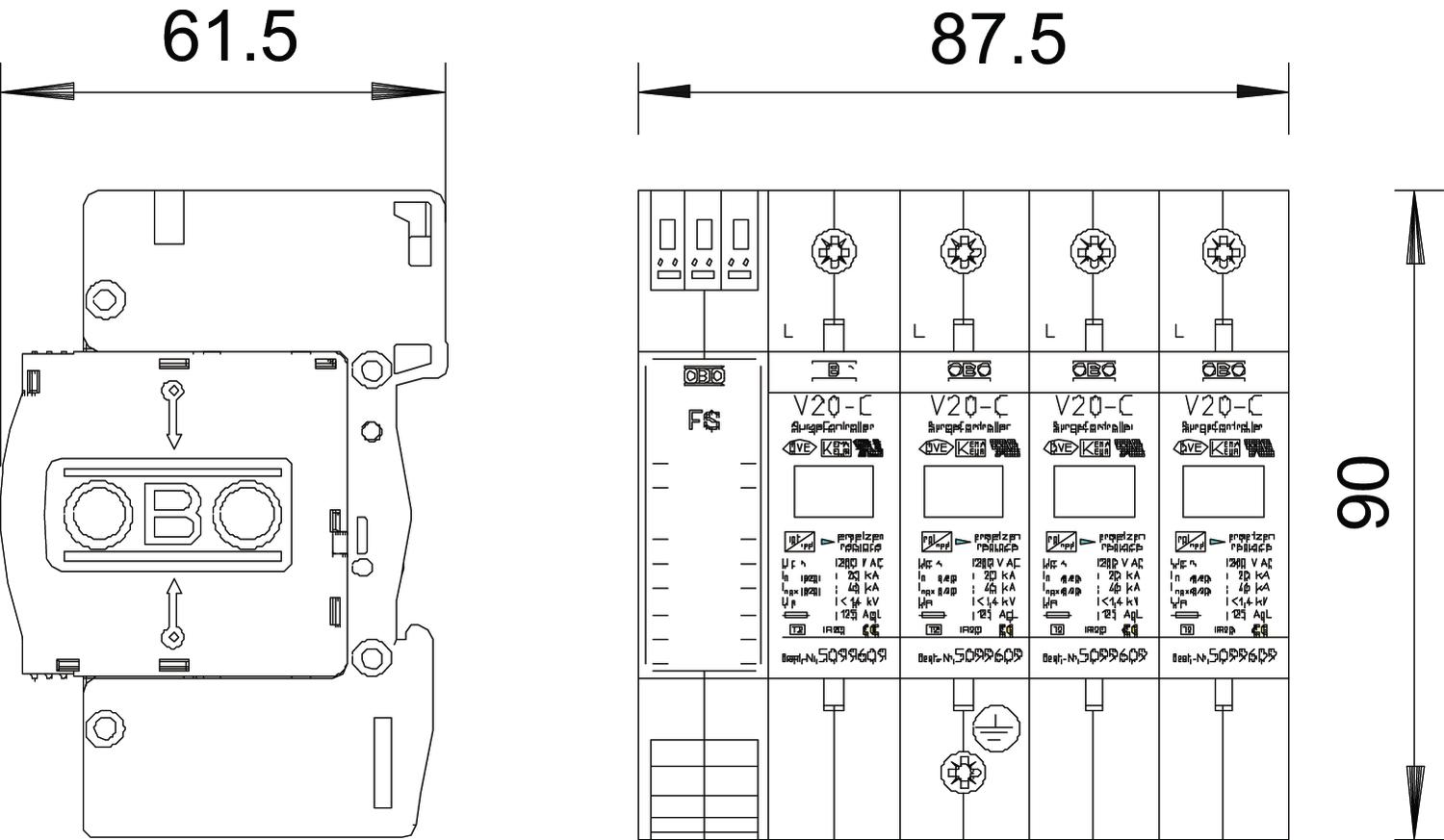

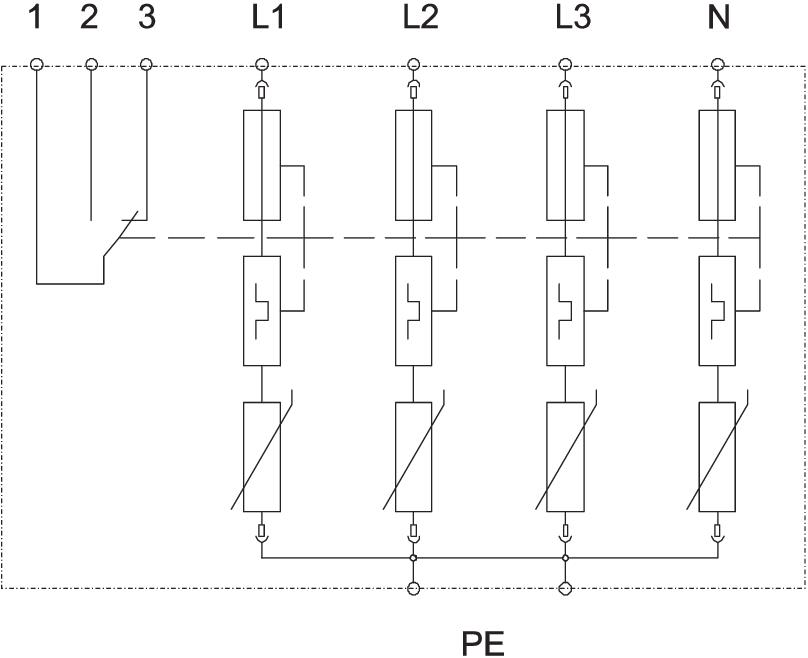

• With remote signalling and potential-free changeover contact for function monitoring
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 40 kA (8/20) per pole
• Arrester, connectable with dynamic cut-off unit and visual function display
• High-performance varistor technology
Application: Equipotential bonding (LPZ 1 to 2) in main and sub-distributors.
* Complete = cover and base
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 80 kA Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 280V Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 1→2 Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 280 V Maximum discharge current (8/20 μs) 40 kA Network form TN Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 4 Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes TN network form yes TN-C-S network form yes TN-S network form yes Version for 4-pole complete with RS, 280 V - All types
- Downloads
-
Data sheet V20-C 4+FS-280A / 5096030 , 0.32MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfEU declaration of conformity V20-C 4+FS-280A / 5096030 , 0.06MB , pdfLabel approval VDE symbol approval, V20 , 0.12MB , pdfLabel approval KEMA-KEUR certificate V20 , 0.45MB , pdfLabel approval UL certificate V20 , 0.28MB , pdfLabel approval EZU certificate V20 , 2.00MB , pdfMounting instructions Technical information V20-...-280 , 0.09MB , pdf
