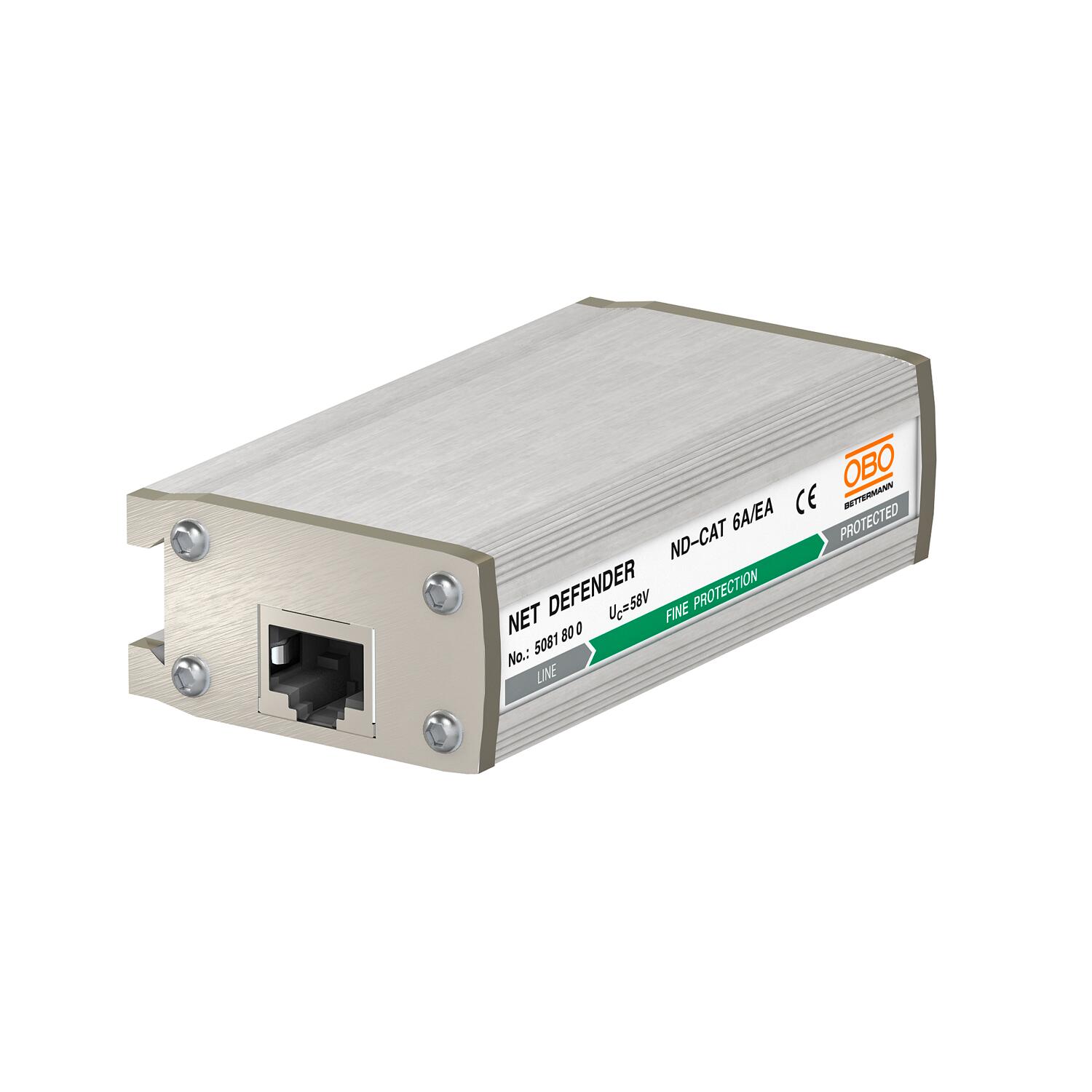

Surge protection for high-speed networks up to 10 GBit (Class EA/CAT6A)
Item no. 5081800 | EAN 4012195614364
- Product description
-
Product descriptionData cable protection device for high-speed networks
• Protection class: Fine protection
• High-quality RJ45 sockets
• Low protection level at high current load
• Earthing via DIN rail or connection cable
• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3
• Tested transmission quality in networks up to 10 GBit/s (Class EA) or CAT6
• Rapid installation through plug-in version
• Incl. DIN rail fastening set and earthing cable
Application example: 10 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces
-
- Technical data
-
Technical data
Cable type for surge protection devices Data cable CAT Channel performance Ansi/EA CAT 6A Channel performance ISO/IEC Class EA Dimension 58V Earthing via: Connection cable / DIN rail Explosion-tested version no Impulse durability wire-earth C2: 2 kV / 1 kA (8/20µs) Impulse durability wire-wire C1: 0,3 kV / 0,15 kA (8/20µs) Insertion loss ≤3 dB Kategorie Type 2+3 / C2+C1 Lightning protection zone LPZ 1→3 Maximum continuous voltage AC 41 V Maximum continuous voltage DC 58 V Number of poles 8 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system RJ45 8(8) Protection level wire-earth <700 V Protection level wire-wire <120 V Protection rating IP20 Screening Direct Shielding connection available yes SPD to IEC 61643-21 Class II+III / C2+C1 Telecommunications contact no Testing standard IEC 61643-21 Total discharge current (8/20) 7 kA Version for Fine protection, 8 wires + shield - All types
-
All types
