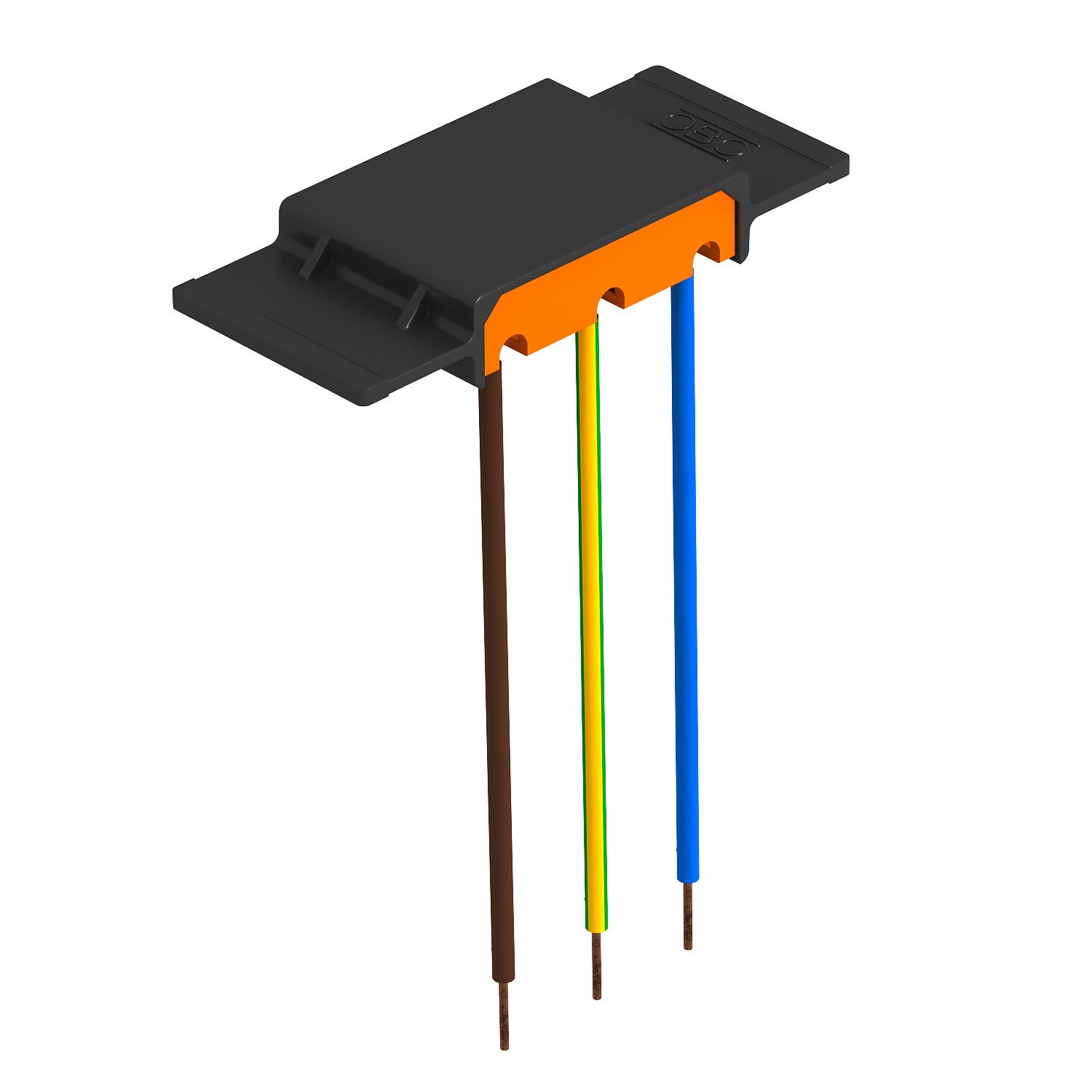

Surge protection module 230 V with holder for GB2 and GB3 mounting boxes

Item no. 5092472 | EAN 4012195613596

Product description
Product description
Surge protection module type 3 to DIN EN 61643-11 for 230 V power grids.



• With acoustic defect signal
• With low construction height and Y circuit
• With halogen-free plastic (UL 94 V-0)
• Holder with separating retainer function for GB2 / GB3 mounting boxes and UT3 and UT4 universal supports

Application: Universally applicable for all installation systems.
2-pin, 16 A/250 V~, with acoustic defect signal.
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 2 to LPZ 3
  • Acoustic signalling
  • Installation electrotechnical expertise

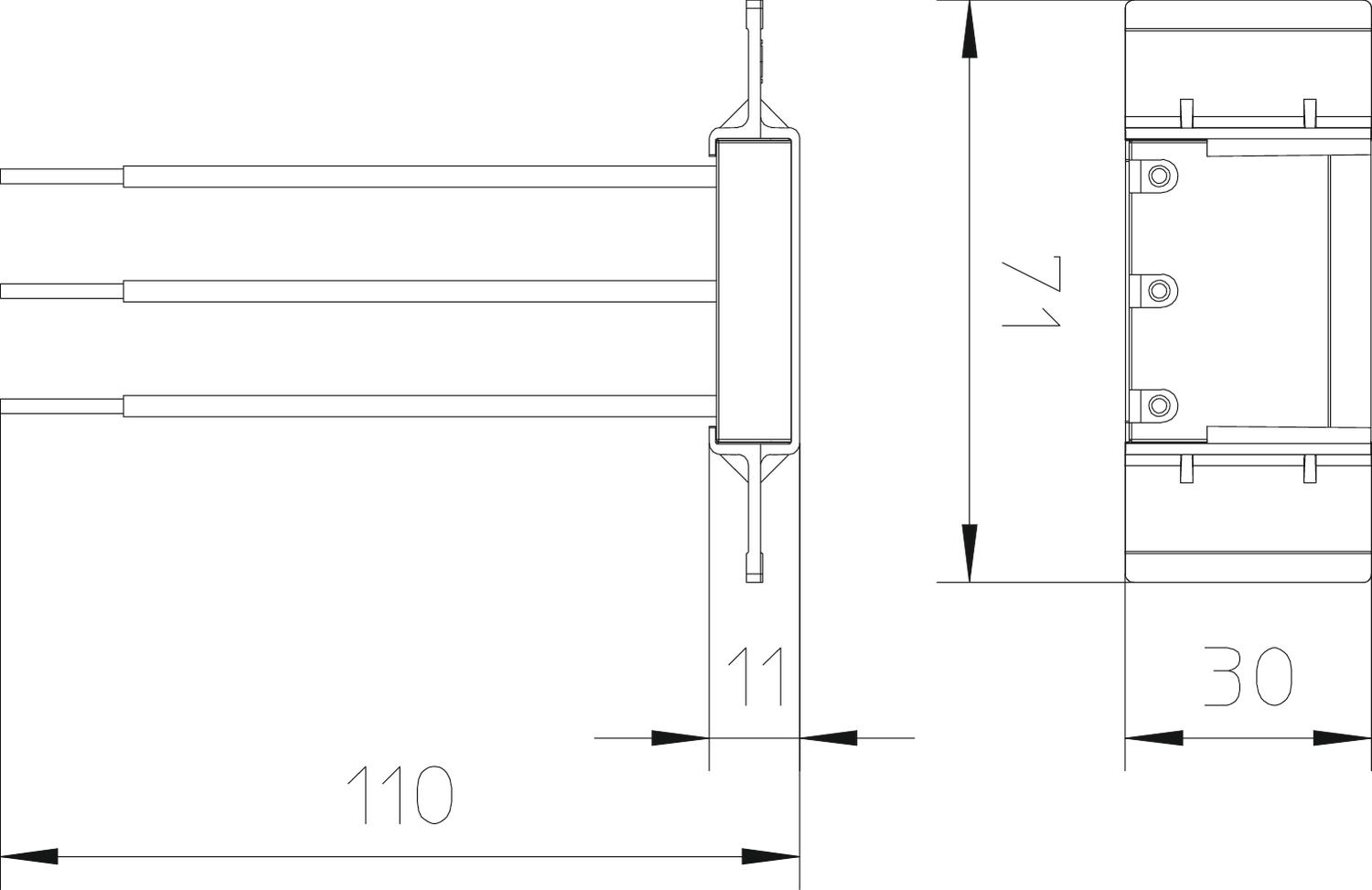

Technical data

Technical data

Cable type for surge protection devices Power cable AV
Combined voltage protection level [L-PE] 1500 kV
Dimension 255V
Installation type Miscellaneous
Lightning protection zone LPZ 2→3
Max. mains-side overcurrent protection 16
Maximum back-up fuse 16 A
Maximum continuous voltage AC 255 V
Maximum discharge current (8/20 μs) 6 kA
Network form Other
Nominal discharge current (8/20 µs) 3 kA
Nominal voltage AC (50/60 Hz) 230 V
OBO_Nominal load current (input/output terminal) 16 A
Operating temperature, max. 60 °C
Operating temperature, min. -15 °C
Pole version 1
Protection level wire-earth 1500 V
Protection level [L-N] ≤1500
Response time <25 ns
Signalling on device Acoustic
SPD to EN 61643-11 Type 3
SPD to IEC 61643-1 Class III
Version for Incl. holder with partition function
All types

All types

Types Item no. Quantity SSU
ÜSM-A-4 5092472
1 piece
