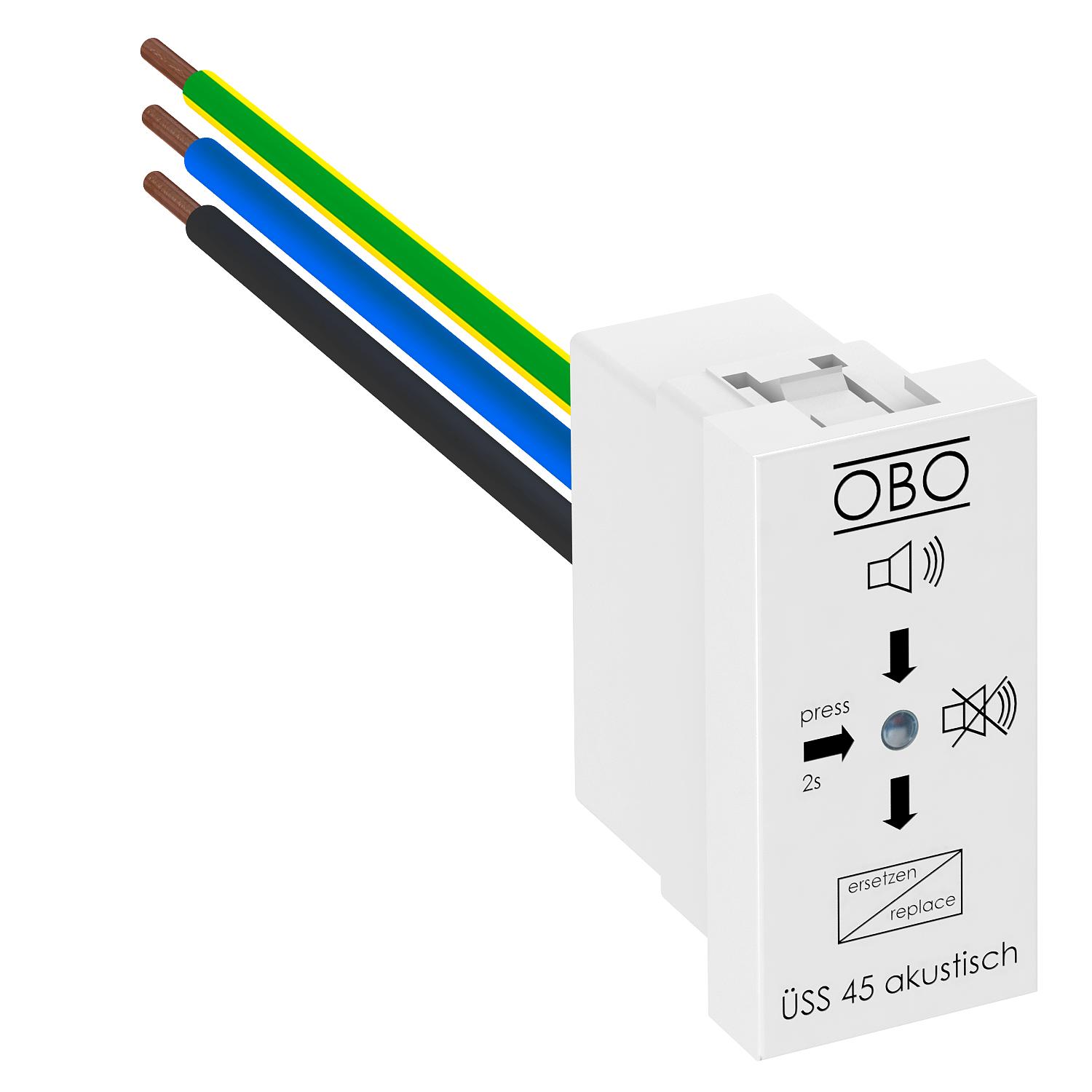

Surge protection module for Modul 45 with audible signalling

Item no. 6117465 | EAN 4012196117611

6117465 / ÜSS 45-A-RW
255
IP20
Product description

Product description

Surge protection/network fine protection, type 3, according to EN 61643-11 for installation in Rapid 45 duct, device installation duct and underfloor systems.



• Version-A with acoustic function display (switchable signal tone)

• Quick and easy mounting

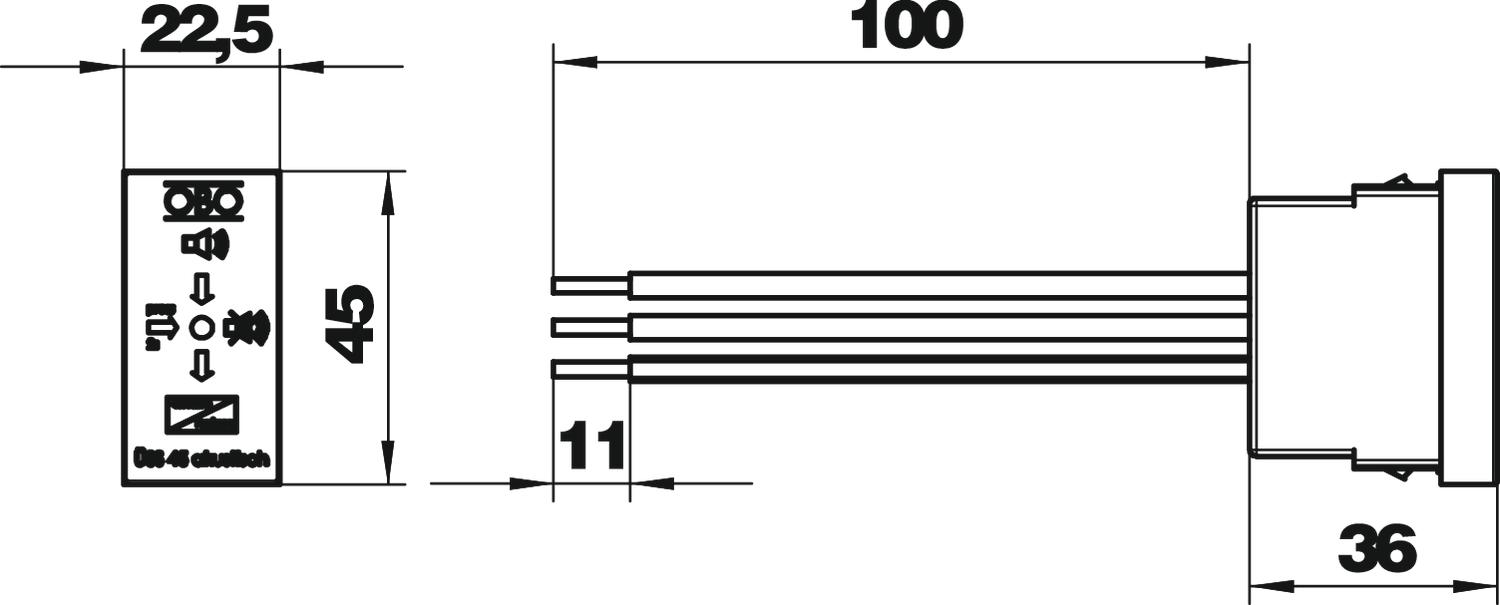

• Low construction width of 22.5 mm

• Colour: Pure white; RAL 9010



Application: The surge protective device secures downstream and nearby sockets.
Surge protection device Type 3 (Class D) to VDE 0675 Parts 6−11 (DIN EN 61643-11)
for installation in Rapid 45 trunking, device installation trunking and underfloor systems.

  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 2 to LPZ 3
  • Acoustic signalling
  • Installation electrotechnical expertise
Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 5 kA
Blow-out no
Colour Pure white; RAL 9010
Combined voltage protection level [L-PE] 1500 kV
Conductor cross-section, rigid (single-wire/multiwire), max. 1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm²
Dimension 255V
Installation type Module
Lightning protection zone LPZ 2→3
Max. mains-side overcurrent protection 16
Maximum back-up fuse 16 A
Maximum continuous voltage AC 255
Maximum discharge current (8/20 μs) 5 kA
Network form Other
Nominal discharge current (8/20 µs) 2,5 kA
Nominal voltage AC (50/60 Hz) 230 V
OBO_Nominal load current (input/output terminal) 16 A
Operating temperature, max. 45 °C
Operating temperature, min. -25 °C
Protection level [L-N] ≤1500
Protection rating IP20
Remote signalling no
Response time <25 ns
Signalling on device Acoustic
SPD to EN 61643-11 Type 3
SPD to IEC 61643-1 Class III
Test class, type 3 yes
Version for Acoustic function display
All types

All types

Types Maximum continuous voltage AC Protection rating Item no. Quantity SSU
ÜSS 45-A-RW 255 IP20 6117465
1 piece
