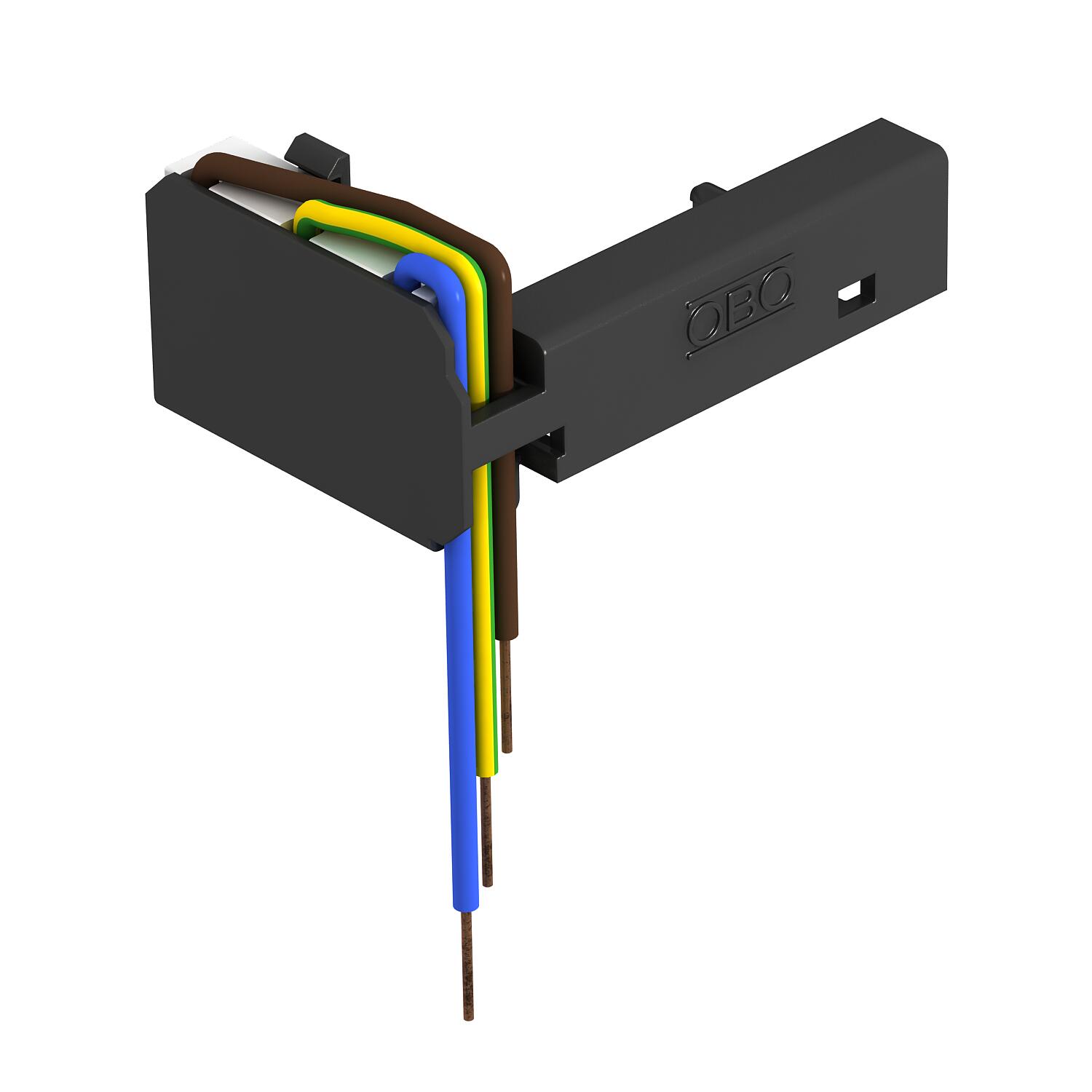

Surge protection module with support for Modul 45connect
Item no. 6107801 | EAN 4012195699767
- Product description
-
Product description
2-pin surge protection module, 16 A/250 V~, with acoustic default display, no network switch-off, for connection to a multiple socket of type Modul 45connect using the supplied support. For installation in universal supports UT3/45 and UT4/45. The surge protection module meets EN 61643-11, type 3, Class III, requirements Class D.
Suitable for installation in underfloor systems in connection with an MT3 / MT4 module support.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
-
- Technical data
-
Technical data
Cable type for surge protection devices Power cable AV Maximum continuous voltage AC 255 Signalling on device Acoustic SPD to EN 61643-11 Type 3 - All types
- Downloads
-
Data sheet ÜSM-A-4T / 6107801 , 0.12MB , pdfDeclaration of conformity ÜSM-A-4T / 6107801 , 0.15MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, ÜSM-A 4T , 0.15MB , pdfNo invitation to tender text is available for this product.
