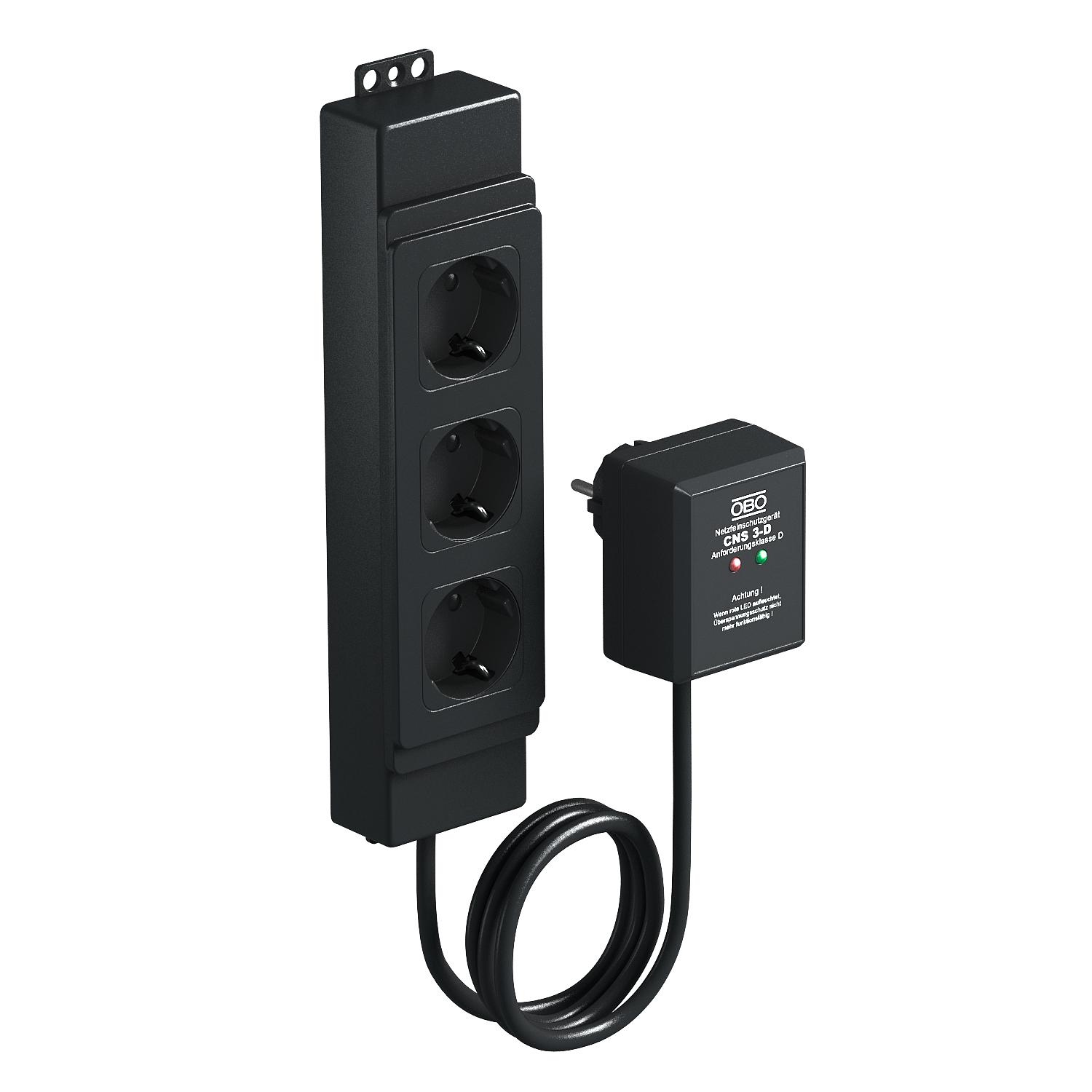

Surge protective device CNS 3 D

Item no. 5092701 | EAN 4012195952817

5092701 / CNS 3-D-D
D
Product description

Product description

Surge protective device, type 3, to DIN EN 61643-11,

intended for use in protective contact sockets.



• With visual and audible signalling, function display

• 3-way socket

• Length of connection cable: 2 m

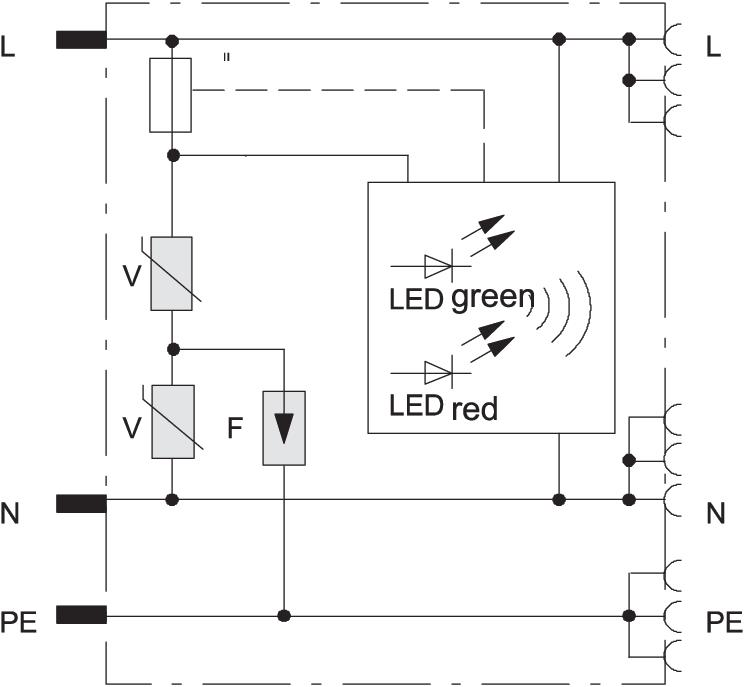

• Y circuit for high electrical safety


Application: For example, the protection of PCs, printers, copiers, fax machines, etc.
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 2 to LPZ 3
  • Acoustic signalling
Technical data

Technical data

Blow-out no
Cable type for surge protection devices Power cable AV
Colour Black
Connecting cable length 2 m
Country-specific version D
Dimension 230V
Lightning protection zone LPZ 2→3
Max. continuous operating voltage 255 V
Maximum back-up fuse 16 A
Nominal discharge surge current 2,5 kA
Nominal voltage 230 V
Protection level 1000/ 1500 kV
Protection level (L-N / L/N-PE) < 1000 / < 1500 V
Protection level (L-N) < 1,0 kV
Protection level (N-PE) < 1,5 kV
Rated current 16 A
Response time <25 ns
Signalling on device Optical and acoustic
SPD to EN 61643-11 Type 3
SPD to IEC 61643-1 Class III
Telecommunications contact no
All types

All types

Types Country-specific version Item no. Quantity SSU
CNS 3-D-D D 5092701
1 piece
