Suspension chain

Item no. 1488201 | EAN 4012195151210

Item no. / Types	1488201 / K-C30 G

Material thickness	3 mm

Product description

Product description

To suspend luminaire supports or other components.

Technical data

Technical data

Breaking load	0,7 kN
Dimension	25x5,2mm
Dimension L	25000 mm
Material	Steel

Material thickness	3 mm
Surface	Electrogalvanized
Version for	Linked chain
Width	11,2 mm

All types

All types

Types	Material thickness	Item no.	Quantity	SSU
K-C30 G	3 mm	1488201	m	25 m

Downloads

Data sheet K-C30 G / 1488201 , 0.13MB , pdf

Declaration of conformity K-C30 G / 1488201 , 0.05MB , pdf

Download

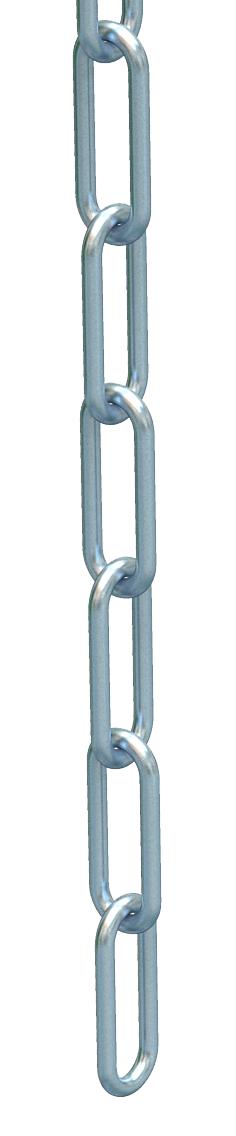

Product graphic K-C30 G / 1488201, 19.46 kB, jpg

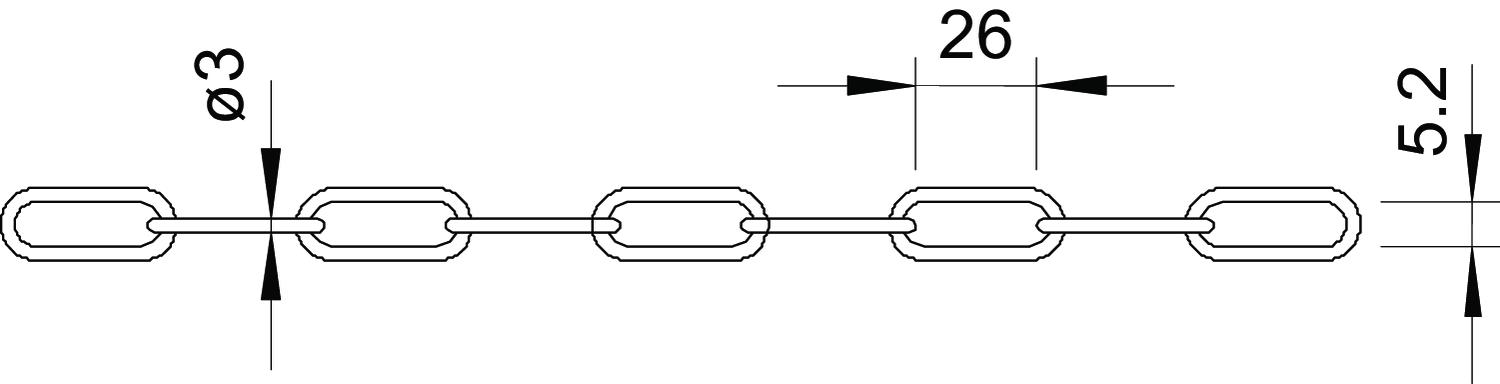

Scale drawing K-C30 G / 1488201, 30.56 kB, jpg

K-C30 G / 1488201
