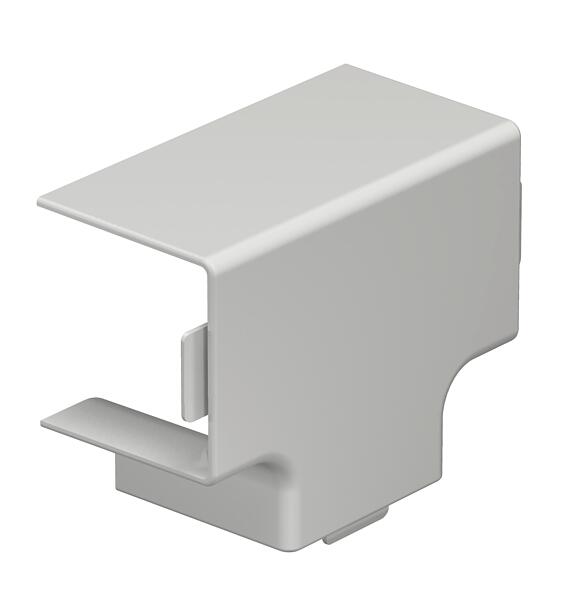

T and intersection cover, for trunking type WDK 40040 83 | 43 | 40 | Light grey; RAL 7035

T and intersection cover, for trunking type WDK 40040

Item no. 6182917 | EAN 4012196673094

Item no. / Types

Dimension a	83 mm

Dimension b	43 mm

Dimension H	40 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	40x40mm
Fastening type	Lockable
for duct dimension	40 x 40
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Trunking depth	40 mm
Version for	Hood fitting

Dimensions

Dimension a	83 mm
Dimension b	43 mm
Dimension H	40 mm

Height	40 mm
Length	83 mm
Width	40 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HT40040GR	83 mm	43 mm	40 mm	Stone grey; RAL 7030	6158544	piece	4 piece
WDK HT40040CW	83 mm	43 mm	40 mm	Cream; RAL 9001	6161995	piece	4 piece
WDK HT40040LGR	83 mm	43 mm	40 mm	Light grey; RAL 7035	6182917	piece	4 piece
WDK HT40040RW	83 mm	43 mm	40 mm	Pure white; RAL 9010	6192548	piece	4 piece
