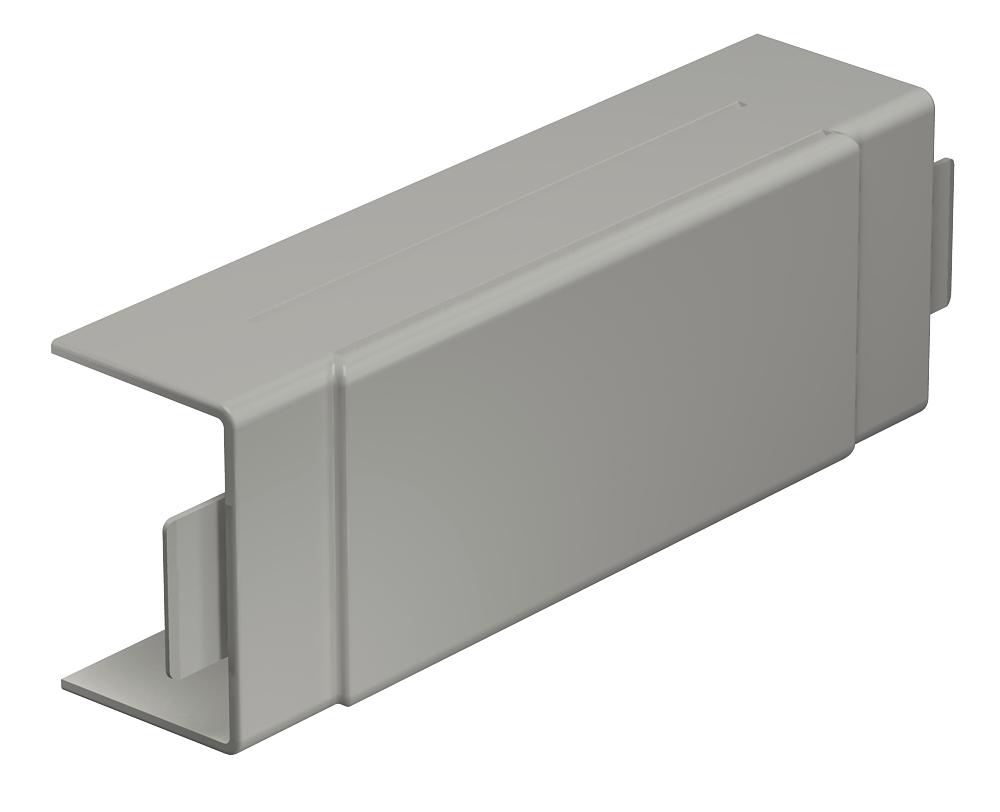

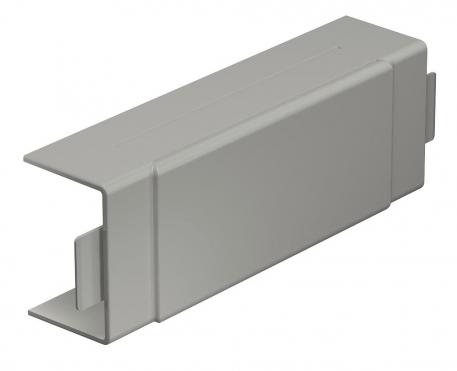

T and intersection cover, for trunking type WDK 40060 190 | 63 | 60 | Stone grey; RAL 7030

T and intersection cover, for trunking type WDK 40060

Item no. 6023312 | EAN 4012196025459

Item no. / Types

Dimension a	190 mm

Dimension b	63 mm

Dimension H	60 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Stone grey; RAL 7030
Dimension	40x60mm
Dimension a	190 mm
Dimension b	63 mm
Dimension H	60 mm
Fastening type	Lockable
for duct dimension	40x60
Height	40 mm
Length	190 mm

Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Trunking depth	40 mm
Version for	Hood fitting
Width	65 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK40060GR	190 mm	63 mm	60 mm	Stone grey; RAL 7030	6023312	piece	2 piece
WDK HK40060CW	190 mm	63 mm	60 mm	Cream; RAL 9001	6162002	piece	2 piece
WDK HK40060LGR	190 mm	63 mm	60 mm	Light grey; RAL 7035	6182925	piece	2 piece
WDK HK40060RW	190 mm	63 mm	60 mm	Pure white; RAL 9010	6192556	piece	2 piece
