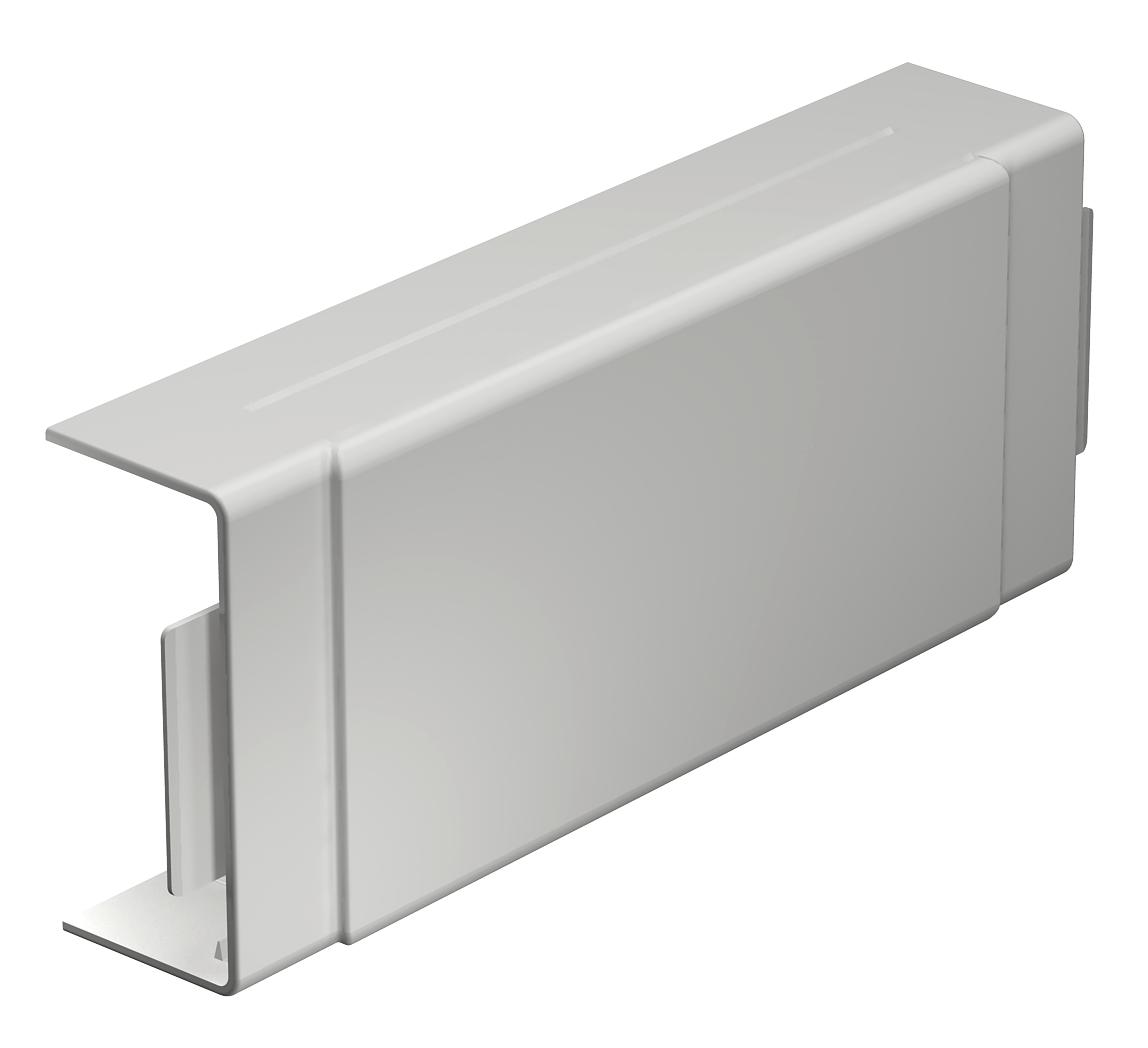

T and intersection cover, for trunking type WDK 40090

Item no. 6182933 | EAN 4012196673216

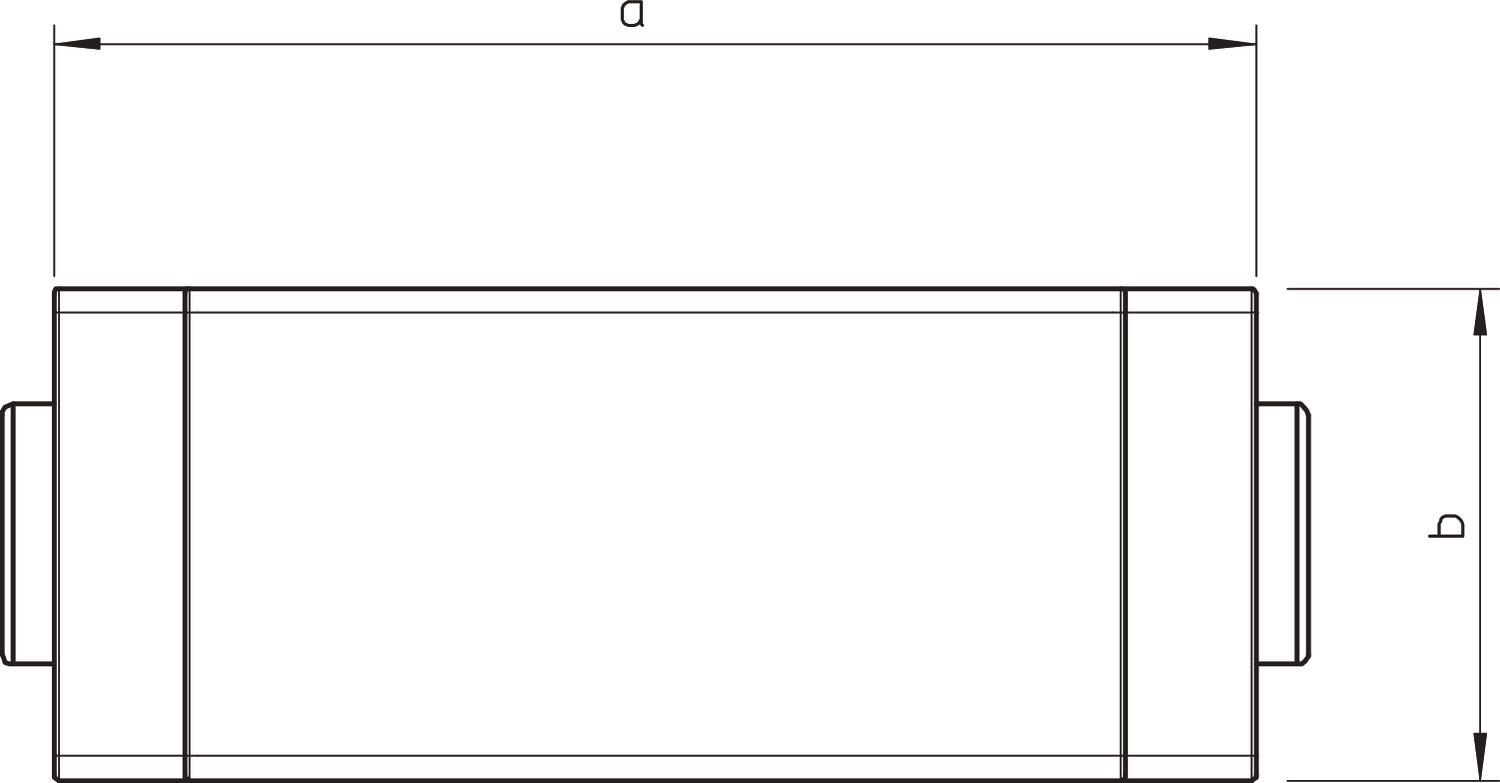

230 mm
91 mm
90 mm
Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 40x90mm
Dimension a 230 mm
Dimension b 91 mm
Dimension H 90 mm
Fastening type Lockable
for duct dimension 40 x 90
Height 40 mm
Length 230 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Trunking depth 40 mm
Version for Hood fitting
Width 90 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HK40090GR 230 mm 91 mm 90 mm Stone grey; RAL 7030 6023142
2 piece
WDK HK40090CW 230 mm 91 mm 90 mm Cream; RAL 9001 6162010
2 piece
WDK HK40090LGR 230 mm 91 mm 90 mm Light grey; RAL 7035 6182933
2 piece
WDK HK40090RW 230 mm 91 mm 90 mm Pure white; RAL 9010 6192564
2 piece
